User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141

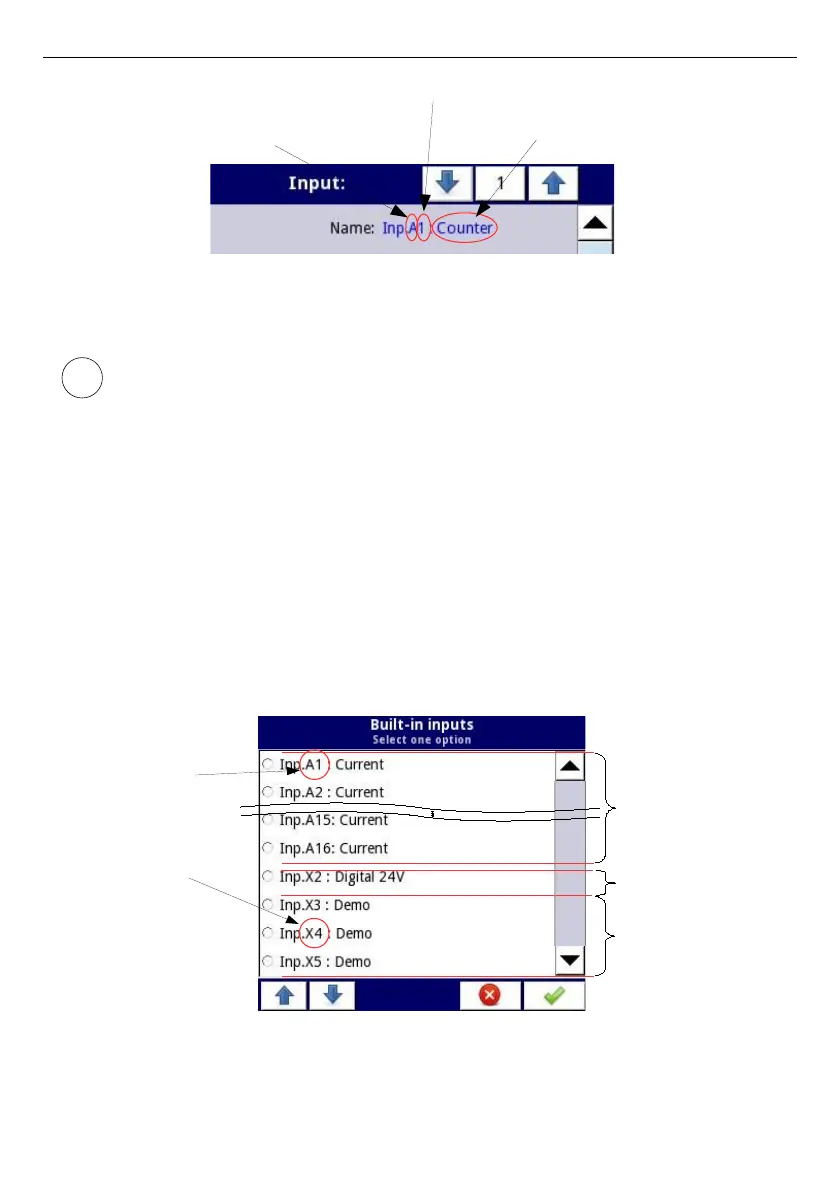

Fig. 7.75. Description of Name parameter in Built-in inputs menu
Other parameters of
Built-in inputs
menu depend on the modules installed in the device.
List of installed built-in input modules (slot tag and type of module) is in the
Device information
menu in
Hardware configuration
block (see
Fig. 7.25
),
In the device there are two ways to configure the hardware input:
•
using the
Configure source
button in the
Logical channels
menu in
Hardware input
mode,
•
directly using the
Built-in inputs
menu.
The
Built-in inputs
can be (in the same order as list in the device - see
Fig. 7.25
):
a) installed
input modules
in the appropriate slots A, B or C (see
Fig. 4.8
) - the list of
currently available modules is on the website,
b) built-in
digital input
is always designated as
Inp.X2: Digital 24V
(see
Chapter 7.9.3.
Built-in inputs - Binary input Inp.X2 : Digital 24V
),
c) built-in
Demo inputs
numbered
X3
,
X4
,
X5
, (see
Chapter 7.9.4. Built-in inputs - Demo
input numbered X3, X4, X5
),
see
Fig. 4.8
Fig. 7.76. The view of a sample list of available built-in inputs for a device
138
i
Slot tag
Input number inside slot
Type of input
Slot A, Input 1
Slot X (built-in slot)
Input 4
I16 Module
16 current
inputs
Built-in binary
input
Built-in Demo
input
