User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
D8 D16 D24
Max input voltage 30V 30V 30V
Input current consumption about 15mA @24V
about 5mA @10V
about 2mA @5V
about 15mA @24V
about 5mA @10V
about 2mA @5V
about 15mA @24V
about 5mA @10V
about 2mA @5V
Input signals representation 8 single bits:
IN1-IN8
two 4-bit groups:
IN9-IN10
1 byte:
IN11
16 single bits:
IN1-IN16
four 4-bit groups:
IN17-IN20
1 integer:
IN21
24 single bits:
IN1-IN24
six 4-bit groups:
IN25-IN30
1 integer:
IN31
Sampling frequency 3kHz 3kHz 3kHz
Isolation strength 1 min. @ 500V AC 1 min. @ 500V AC 1 min. @ 500V AC
Weight 30g 40g 58g

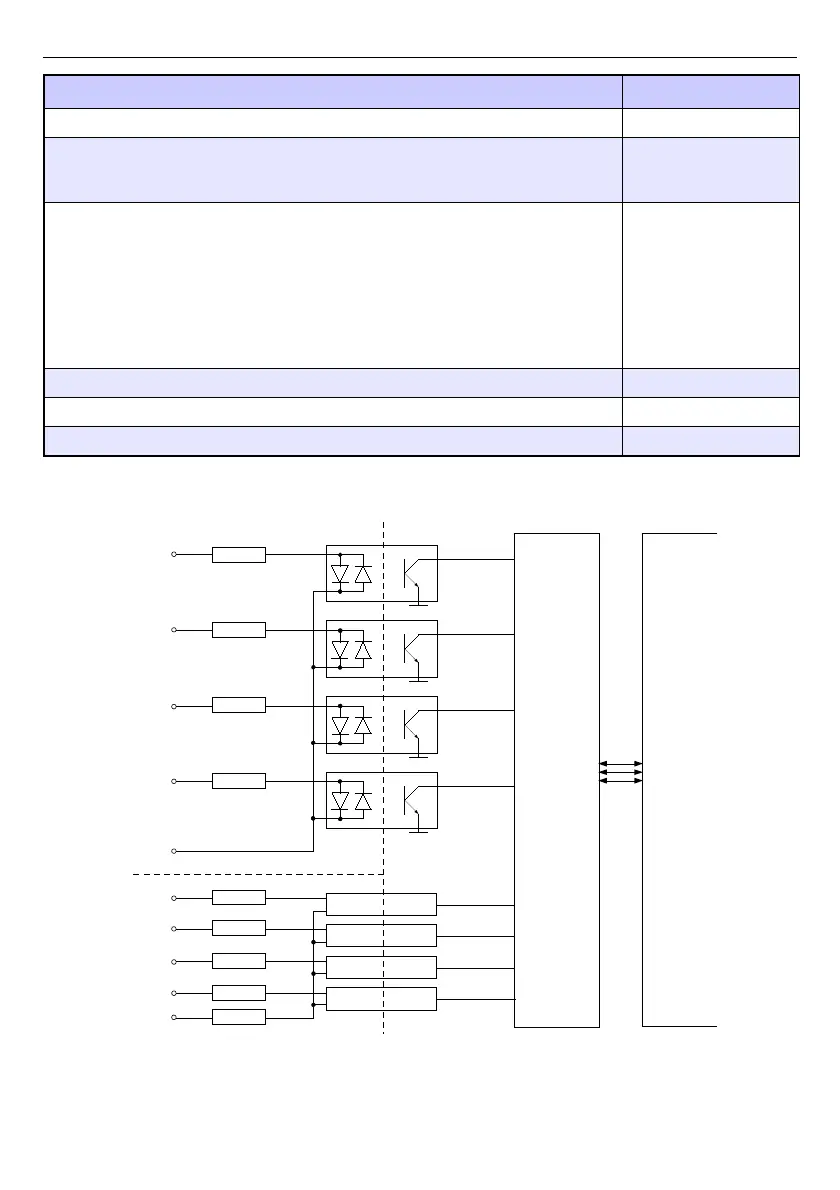

Tab. 8.18 Technical data for the module D8, D16, D24
Fig. 8.18. Internal structure of the optoisolated Digital inputs module
262
IN 1
IN 2
IN 3
IN 4
COM 1-4
Isolation
IN 5
IN 6
IN 7
IN 8
COM 5-8
R=3k
Interface
Main board
R=3k
R=3k
R=3k
