User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
Most important parameters of R45, R81, R65 and R121 modules:
R45 R81 R65 R121
Number of relays 4 SPDP
(Switchable)
8 SPST (N.O.) 6 SPDP
(Switchable)
12 SPST (N.O.)
Max. load per relay 5A, cos j = 1
(resistive load)
1A, cos j = 1
(resistive load)
5A, cos j = 1
(resistive load)
1A, cos j = 1
(resistive load)
Max. voltage switched
by relay
250V AC 250V AC 250V AC 250V AC
Isolation strength
between relays
1 min. @
630V AC
1 min. @
630V AC
1 min. @
630V AC
1 min. @
630V AC
Insulation strength
(relay to MultiCon CMC-
99/141 supply)
1 min. @
1000V AC
1 min. @
1000V AC
1 min. @
1000V AC
1 min. @
1000V AC
Weight 94 g 79 g 139 g 116 g
Tab. 8.22 Technical data for the module R45, R81, R65 and R121

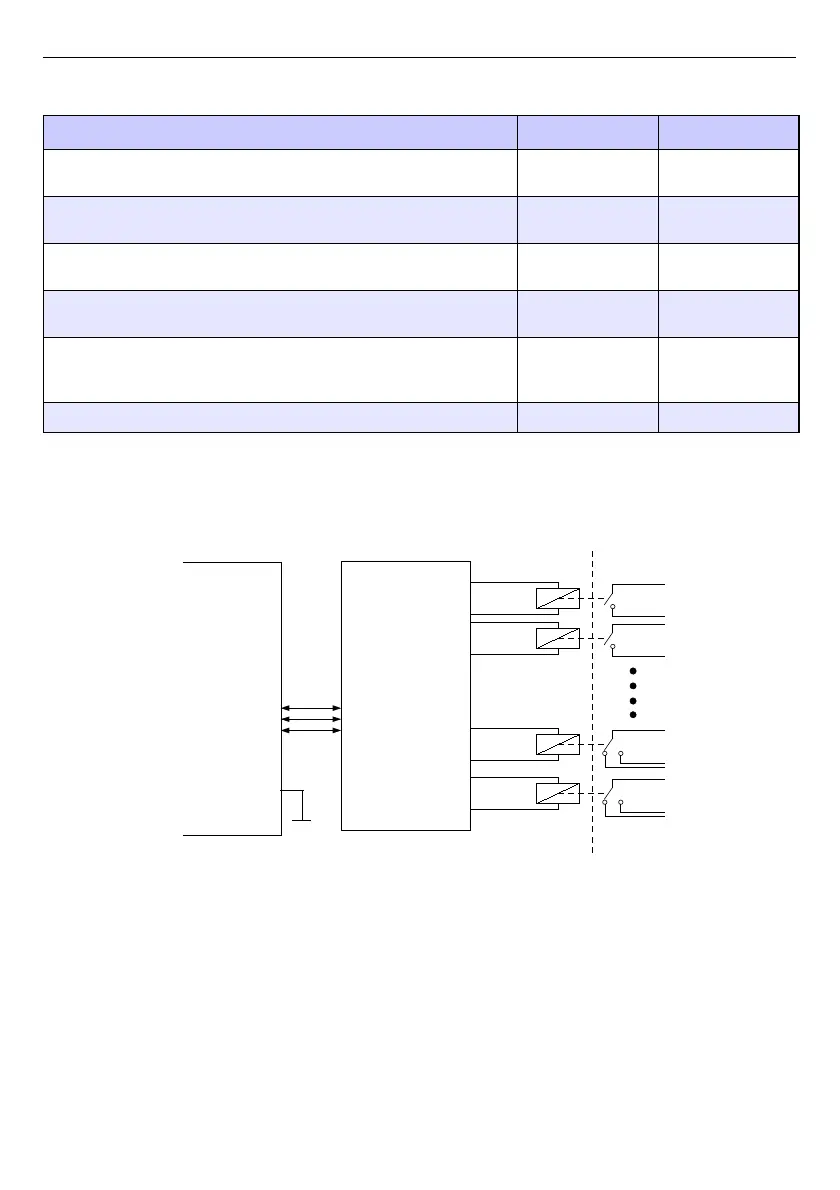

Fig. 8.28. Internal structure of the Relay outputs module
