Simex multicon cmc-99 - Page 293

User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141

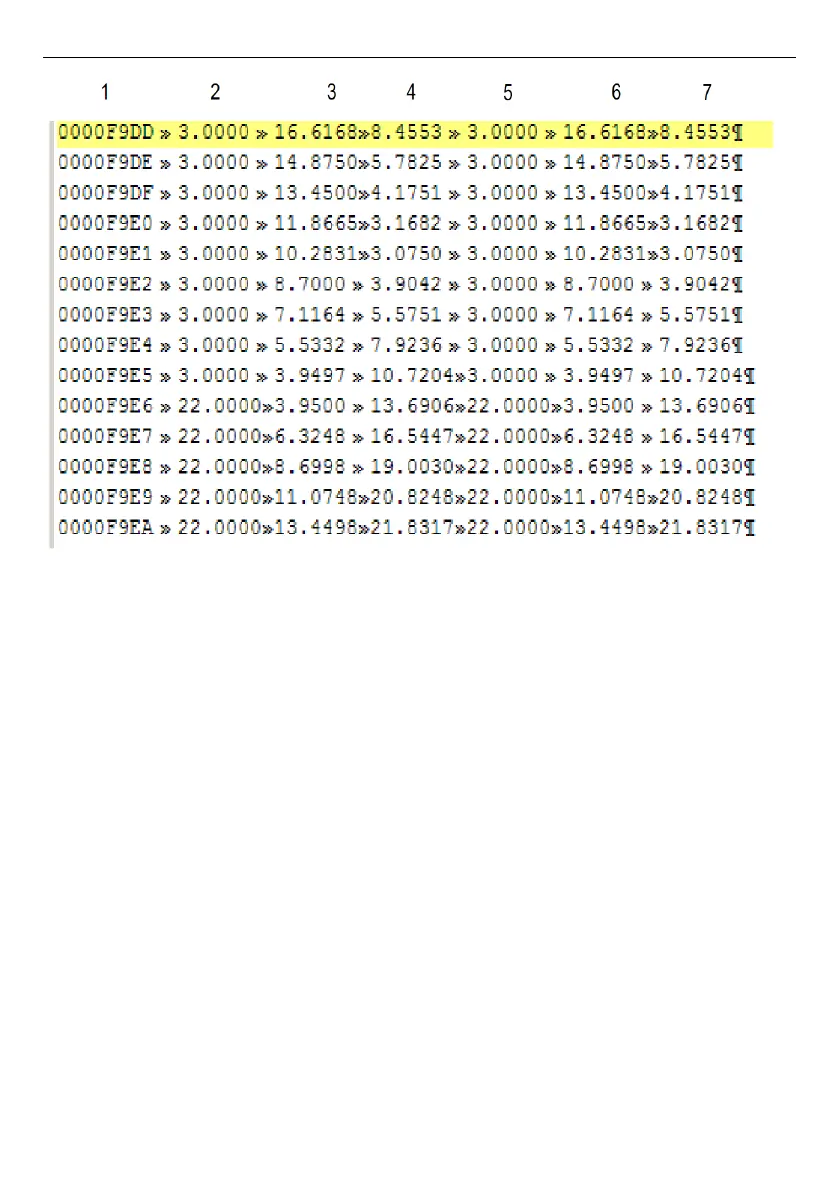

Fig. 8.42. partX.db_samples file view example
Organisation of files stored in a flash drive while copying
Log files are stored on a disk according to following schema:
1) if a directory with the name equal to device's serial number does not exist, then it is
created,
2) in such directory, files witch information about logs are created (description bellow),
3) each log is stored in a separate subdirectory,
Files hierarchy:
DISK:\ Serial_number\ main_log.bin_logs
main_log.bin_event_log
main_log.bin_dev_settings
main_log.bin_cons_dev_info
log1_directory\
log2_directory\
log.db_chan_conf
log.db_group_settings
log.db_log_files
part0.db_raster
part0.db_samples
part0.db_timestamp
log.db_conf_xml
293
