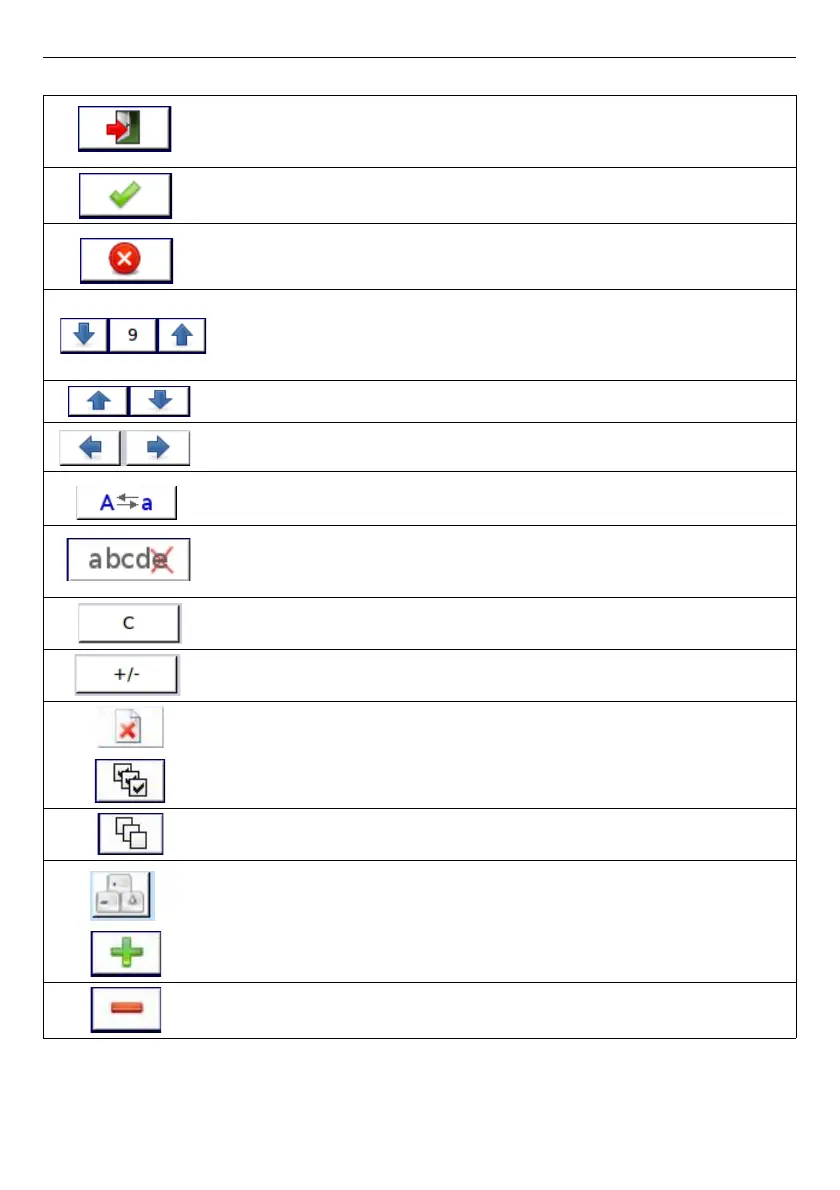

Functions of common buttons
“
Exit
” - exits from current menu or sub-menu
”
OK
” - accept choice or changes of edit dialogue (and exit from this
dialogue)
“
Cancel
” - reject entered choice or changes of edit dialogue (and exit
from this dialogue)
Selection of element for editing. Arrow buttons allow the user to select
successive elements (groups, logical channels, controllers or outputs).
The middle button allows a direct selection of particular element from
the list.
Navigation keys in choice type dialogues.
Move arrows. Allow to move cursor along the edited text.
“
Caps lock
” - switches between lower and upper case letters.
“
Backspace
”. When editing values, pressing this button deletes last
visible number. When editing text, the last edited symbol shown
directly before cursor is deleted.
“
Clear
” - clears the whole number when editing values.
“
Sign
” - changes the sign of the edited value.
This button deletes the selected file.
“
All
” - selects all the available options.
“
None
” - deselects all the available options.
Press this button to enter Text editor window.
Add a new object
Delete a selected object
Tab.7.1 Button functions common for different views
