Editing Standard Component Properties, Continued
Editing the Serial
DACT Card
To edit the Points tab (Figure 6-23):
1. To edit a point, click on the point or use the up and down arrow with the <space bar> to
toggle point selection.
2. Depending on the point, edit the fields as necessary. The non-editable fields remain grayed
out.

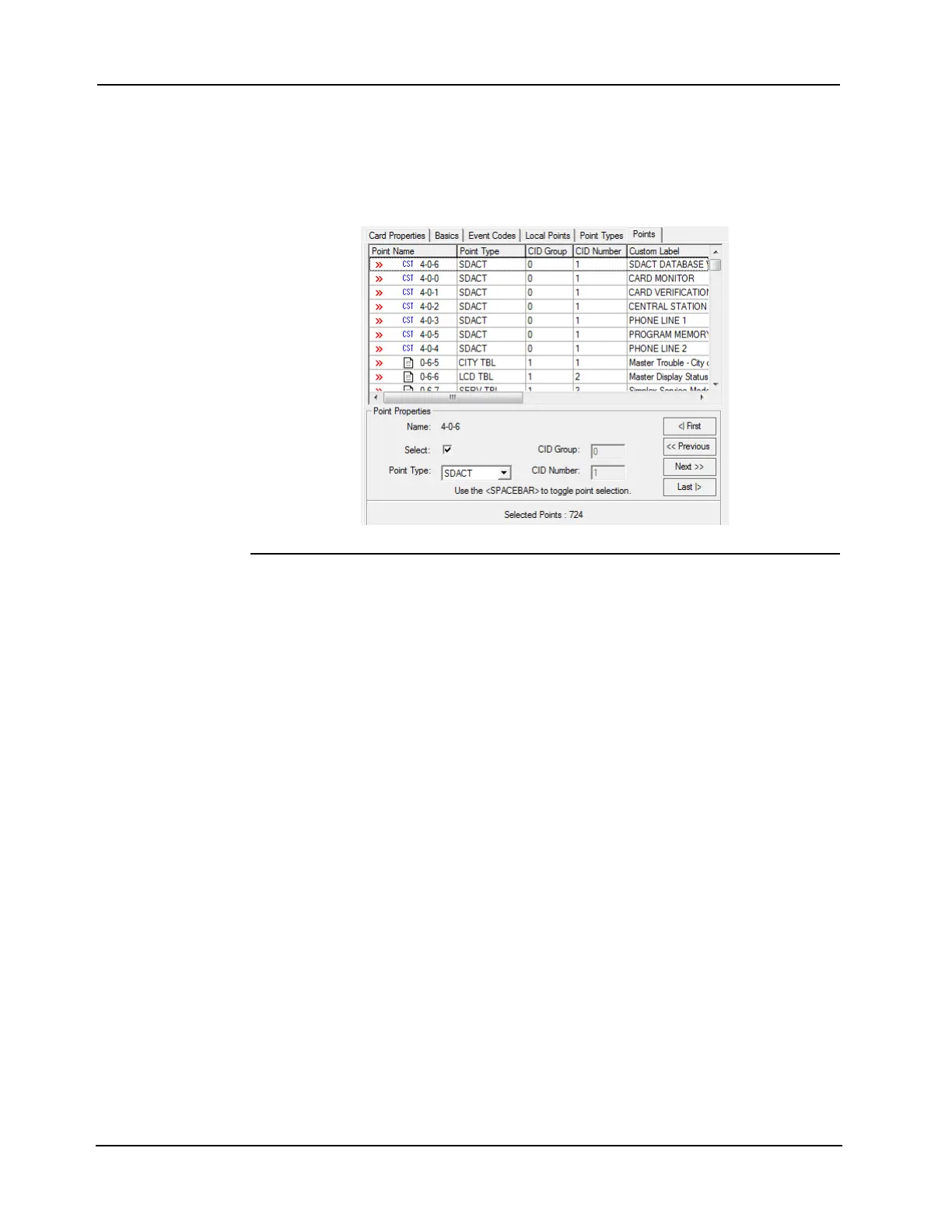

Figure 6-23. DACT - Points Tab
Editing the Event
DACT Card
The 4007-9806 DACT “per event” has five main tabs. To edit the Card Properties tab, the
Basics tab, the Event Codes tab, the Local Points tab, and the Points tab.
To edit the Card Properties tab per event:
1. The panel assigns an address when a DACT card is added. Set the card address to match the
programmer assigned address.
2. Enter the card’s custom label. This label should make the card easily identifiable.
3. Select a card address, from 0 to 31.
The following fields in the tab are filled by the programmer and cannot be edited:
• Card description
• Card default label
• Annunciator address
• Box number
• Bay number
• Location
