4007ES Panel Programmer Manual (579-1167)
Editing Standard Component Properties, Continued
Editing the Event
DACT Card
To edit the Basics tab (Figure 6-24):
The Basics tab can be used to set up the basic communication information of the DACT to
DACR link. The following fields in the tab can be edited:
• Phone and Account Numbers
- Primary (1)#
- Secondary (2)#
- Account (1)#
- Account (2)#
• Central Station Line #
• Communications Format
- SIA
- 3/1
- 4/2
- BFSK
• Pulse Communication Format (available when 3/1, 4/2 or BFSK is selected)
- Format rate 10 PPS or 20 PPS
- Communication Format Frequency 1.9KHz Data/1.4KHz ACK or 1.8KHz Data/
2.3KHz ACK
• Dual Mode
- Tone
- Pulse
- Tone else Pulse
• Miscellaneous
- Report AC Failure Delay
- Test Report Time
- Send Unmapped Points
- IP Communicator
:

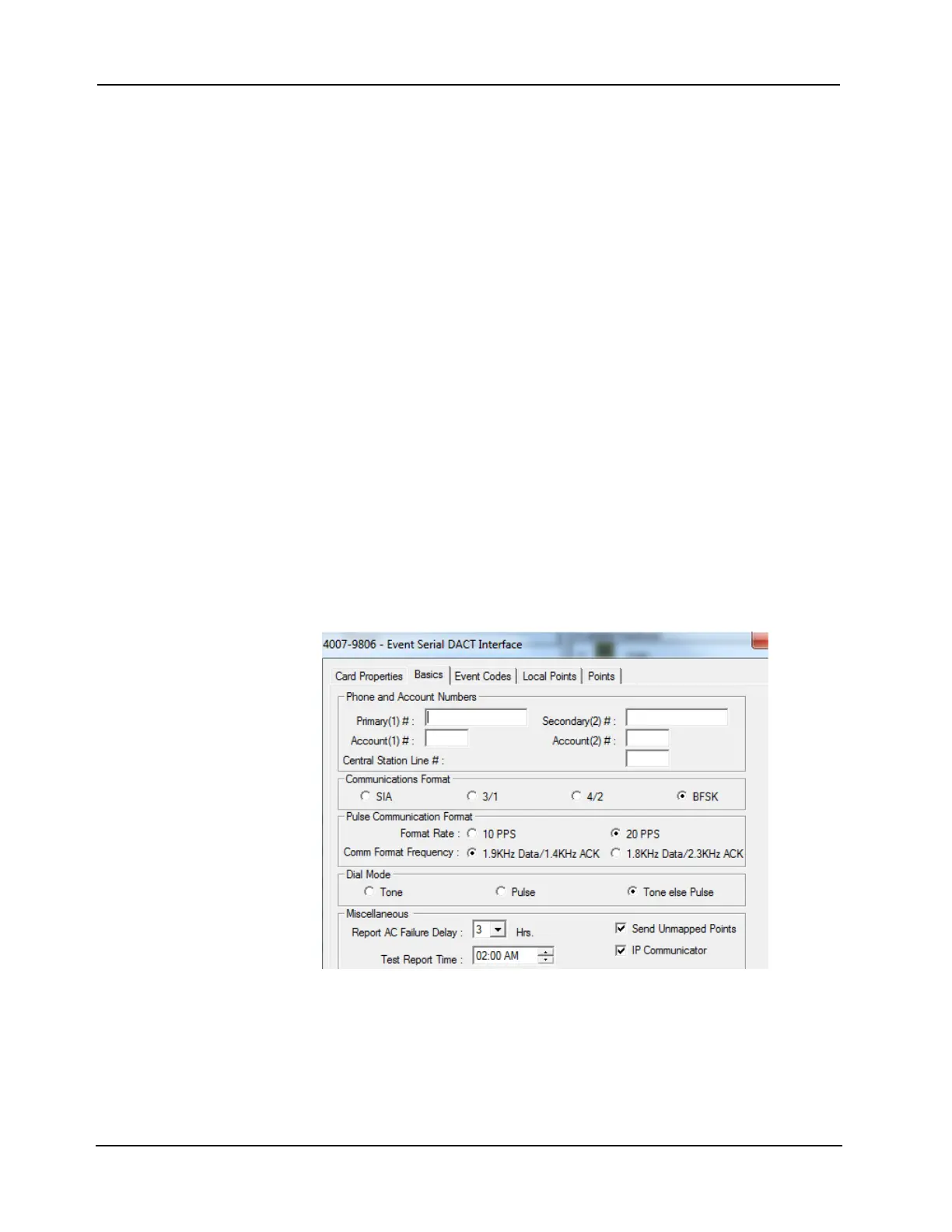

Figure 6-24. DACT Event Reporting - Basics Tab
To edit the Event Codes tab (Figure 6-20):
1. Select the Enable Edit checkbox.
2. A warning window appears. Click on Ye s.
Note: Do not edit local points without prior authorization and direction from the central station.
3. Define the appropriate local points for both the Event and the Restoral columns.
4. Click Apply > OK to confirm the edits.
