5. Assembly
IMPORTANT NOTE
Only one operating voltage (24 VDC or 100-240 VAC) can be connected to terminal strip
4.1 or 4.2. Do not operate two different voltages within a terminal strip!
Legend to Figure 9
Item Description Chapter
1 Power supply X1
5.3.6
2 Digital inputs X2
5.3.9
3 Digital/analog inputs X3
5.3.10
4
4.1 Relay outputs X4
5.3.8
4.2 Relay outputs X4
5
RS485 interface
6
24 VDC output for mainboard
7
USB port (external)
Do not use connection!
8
DIP switch addresses 5.3.11
9
RESET switch Hardware reset
10
Fuse,
FK1 3A as per ISO 8820-3
11 Load switching relay (2x) X5
5.3.7
12
PE/ground terminals for
relay outputs X6
Grounding connection
established by customer!
5.3.8
1 10 2 11 4.2
6 5 8 7 9 3 12 4.1
Cable glands
for sensors
Cable glands for power supply/interface
Cable glands for valves/
motor
EN
33
5
5.3.3 Terminal board 24 VDC

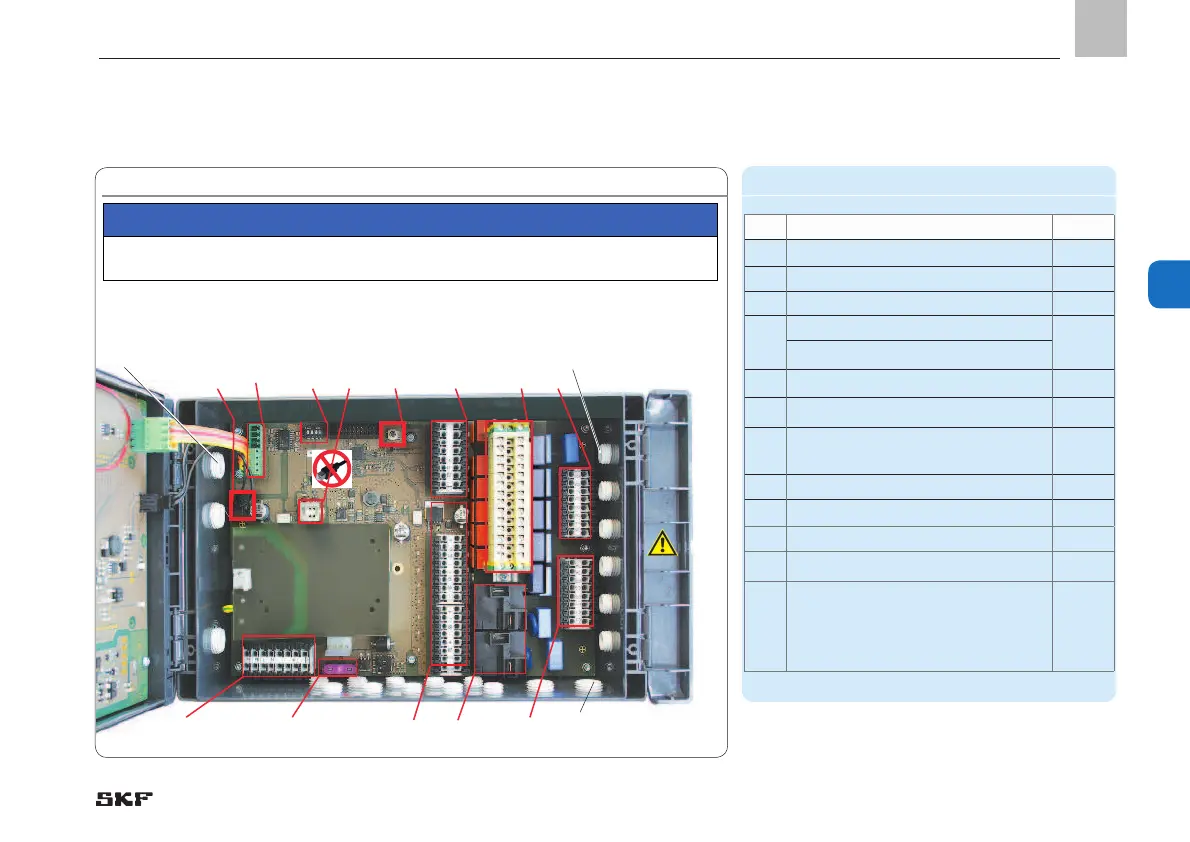

Connections on mainboard, 24 V DC design, Fig. 9
