SKF LMC 301 series User Manual

5. Assembly
IMPORTANT NOTE
A separate address must be assigned to
each IO board!
To differentiate between multiple IOPCBs in
an RS485 daisy chain, each IOPCB needs its
own address.
This can be set in the binary code using the
DIP switch (address switch).
If all four DIP switches are set to above,
the address is "1".
See Figure 16 for further addresses.
Adr. 1
Adr. 2
Adr. 8
EN
38
5.3.11 Adding an additional IO connection to RS485 interface
Another IOPCB communication connection
can be established using the two RS485
connectors (5).
Up to 7 “IOPCBs” can be connected to a
mainboard. Each IOPCB must be supplied
separately.

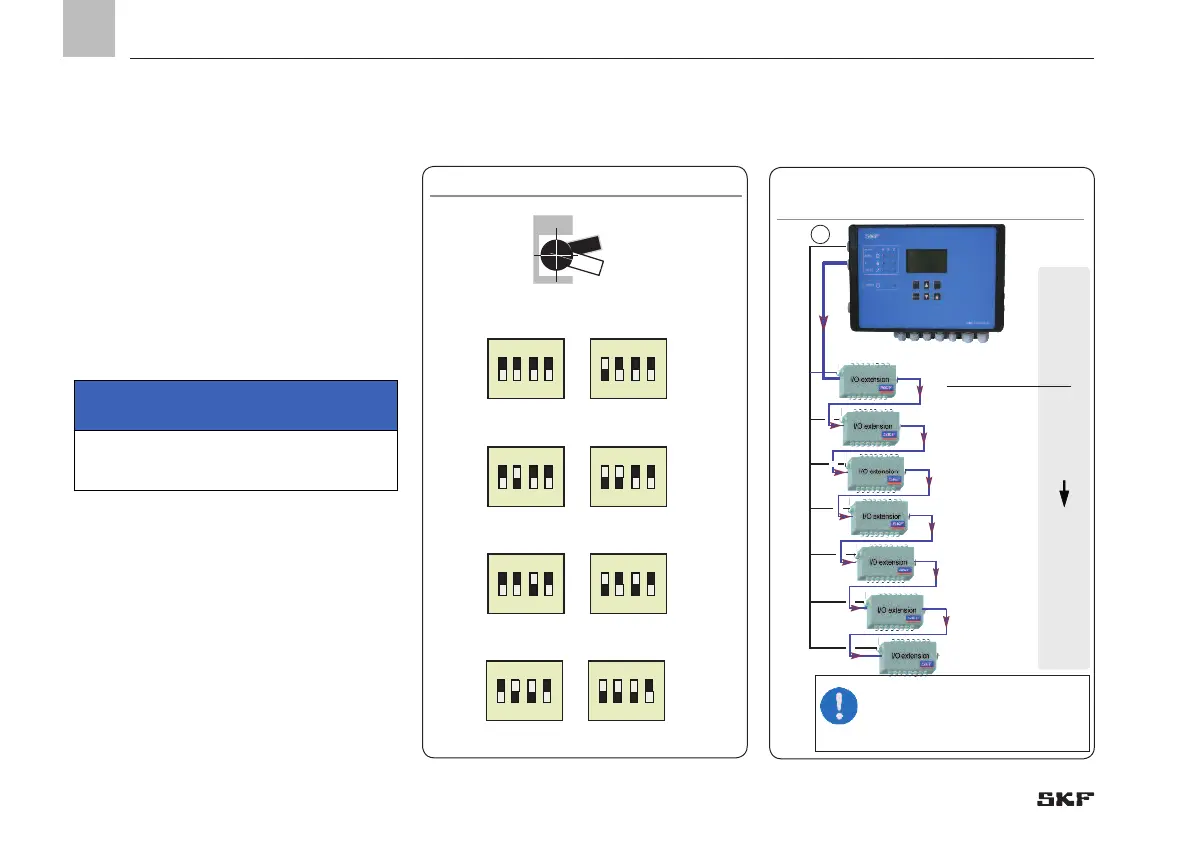

Setting IO addresses, Fig. 18
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
O
ON
1 2 3 4
ON
1 2 3 4
Address 1 Address 2
Address 3 Address 4
Address 5 Address 6
Address 7 Address 8
Daisy chaining with external IO boards,
Fig. 19
)See Figures 8/9, item 8
)See Figures 18/19
+
IMPORTANT NOTE
Use shielded cables.
Maximum cable length 200 m.
