5. Assembly
IMPORTANT NOTE
Only one operating voltage (24 VDC or
100-240 VAC) can be connected to terminal
strip 4.1 or 4.2. Do not operate two different
voltages within a terminal strip!
EN
36
Connections in conjunction
with load switching relay
Max. 8 A
5.3.8 Terminal strip for relay outputs

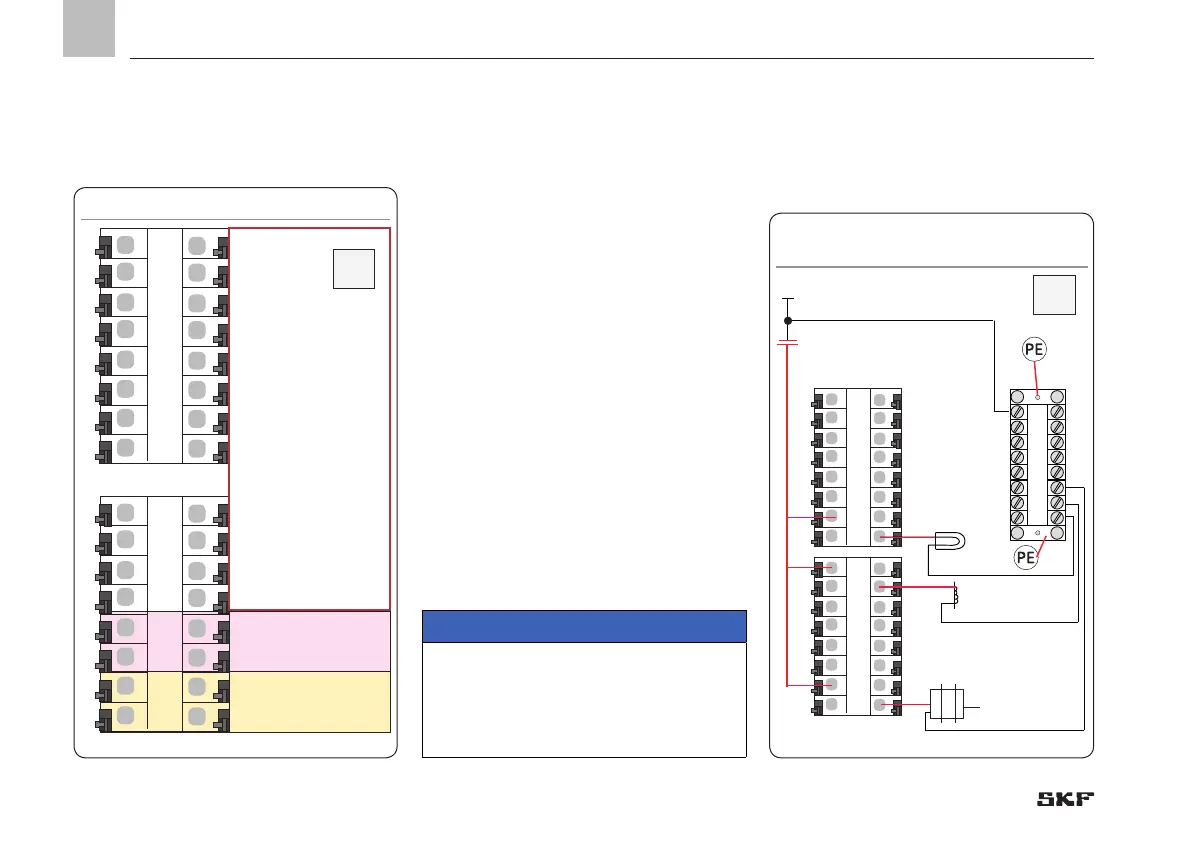

Connection example for relay outputs, Fig. 14
O 4
O 4
O 3
O 3
O 2
O 2
O 1
O 1
O 8
O 8
O 7
O 7
O 6
O 6
O 5
O 5
O = Output
Terminals
O3 to O8
Max. 8 A
The outputs on the terminal strip X4 are provided
for downstream relays or loads installed by the
customer. Note the following:
Two terminal rows (e.g.: 01/01) are provided
for each connection. Both are connected to the
switching contacts of the corresponding relay. The
customer's power supply must be connected to
one of the terminal rows, while the load contact
is connected to the second, opposite terminal
row. The ground connection is established via
the ground terminal strip on the controller, which
must be grounded by the customer (see Fig. 15).
The load on outlets 01 and 02 can optionally also
be connected directly to the load relay (see
Fig. 13).
Relay outputs, connection example 24 VDC,
Fig. 15
O 4
O 4
O 3
O 3
O 2
O 2
O 1
O 1
O 8
O 8
O 7
O 7
O 6
O 6
O 5
O 5
Ground
Power
Signal
monitoring
Reversing valve
Pump motor,
connection
max.
8 amperes
)See Figures 8/9, item 4, and Figs. 14 and 15
Connections in conjunc-
tion with load switching
relay Max. 8 A
X4
X6
4.1
4.2
4.1
4.2
Grounding connection
established by customer!
