11. System configuration

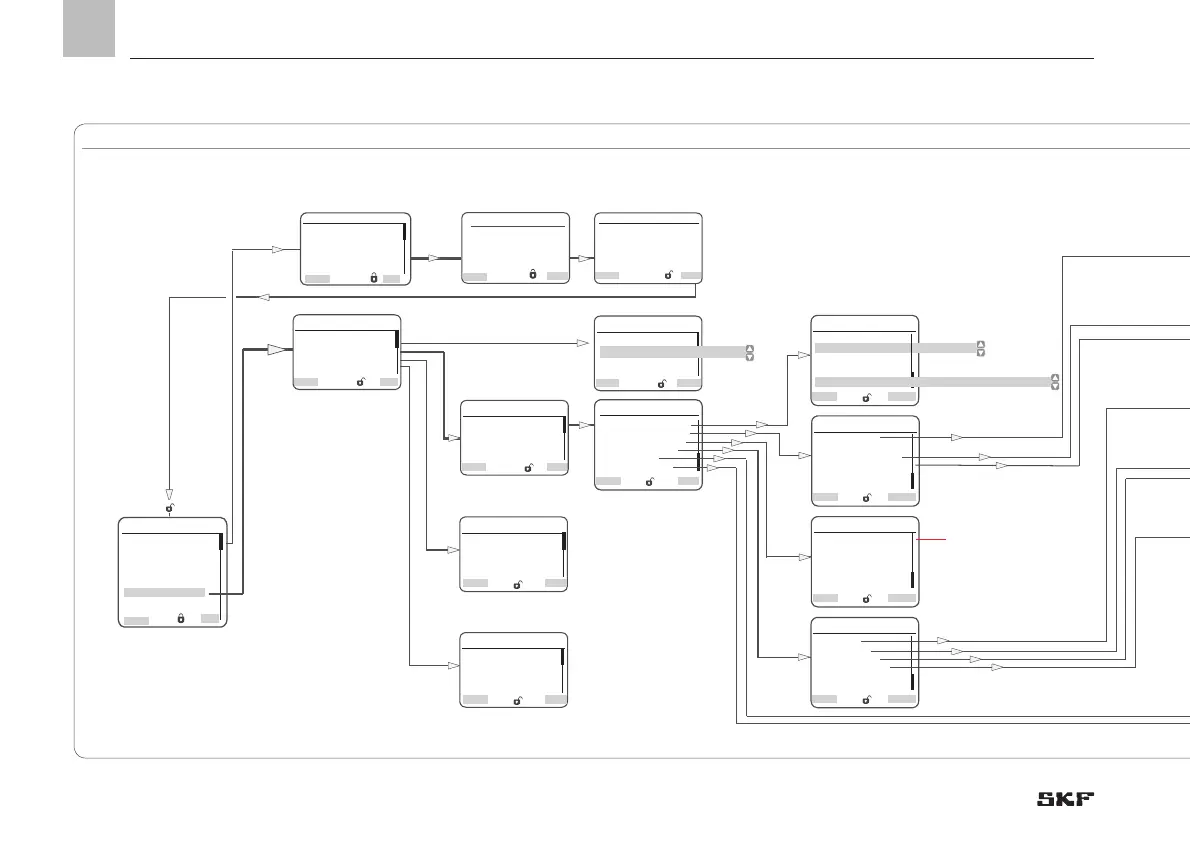

11.1 Menu navigation for system configuration - pump settings
11. System configuration
Note!
Menu Alarm / inputs / times only with
activated monitoring
Login settings
User settings
Device settings
Pump 1 Timings
System configuration
Information
Main Menu
Login settings
Enter Password
Set PW local admin
Set PW Supervisor
Back
Enter
Enter Password
Back
Please Enter Password
to Continue
0000
Select
Passwort correct
You are logged in
Supervisor
Back
Enter
Login settings
Wählen
System configuration
Amount of pumps
Pump 1 settings
Set Params to Default
Restore Fac. Set.
Back
Amount of pumps
Amount of pumps
[<< 1 pump >> << 2 pumps>> << 3 pumps >>]
Back
Pump 1 settings
Pump settings
Zone 1 Settings
Zone 2 Settings
Zone 3 Settings
B
ack
Enter
Select
Pump settings
System Type
Lube control
Relief Settings
Filling/Low Level
Motor Protection
Temperature Control
EnterBack
System Type
System type
[ << Single Line >> << Progressive >> << DuoLine >> ]
Zones
[ 3 Zones ]
Zone valve type
[ <<DU1 self co >> << 3/2 Way Valve >> << EMU3>> << EMU2>><< MA/MP>>]
Back
Select
Lube Control
Pump Output
Sensor at Pump Set.
Remote Manual Lube
Back
Select
Filling/Low Level
Monitoring
Alarm
Inputs
Timings
Back
Select
Back
Enter
Enter
Set Params to Default
Set Params to Default?
Continue?
Restore Fact. Set.
Restore Fact. Set?
Continue?
EnterBack
EnterBack
Relief Settings
Relief type
[<< disabled>><< enabled>>]
Zone Relief Time
[ 60] s
Pump Relief Time
[ 60] s
Back
Select
Note!
Menu only upon activation of the
3/2 zone valve
(System configuration => Pump setting =>
System Type => Zone valve type)
