SKF LMC 301 series User Manual

11. System configuration
Inputs
Input LL Type
<< disabled
>> << transducer 1-6V >> << transducer 4-20 mA >> <<transducer 0-20mA >>
<<transducer 2-10V >> <<transducer 0-10V>> << normally open >> << normally closed >> ]
Input No.LL Type
[ 1,03 ] AI
Minimal Valve
[000] %
Maximal Valve
[000] %
Full Valve
[000] %
Empty Valve
[000] %
Critical Valve
[000] %
Note!
Additional buttons in transducer setting
Note!
The menu items are dependent on the fill level
adjustment, Menu Monitoring
Pump Output
Output Type
[ << normally closed>> << normally open>> << disabled>>
Output No.
[ 1,01
2nd Stdby ] O
Output Type 2nd Stdby
[ << normally closed>> << normally open>> << disabled>> ]
Output No.
2nd Stdby
[ 1,01 ] O
Active Pump
[ <<1st Section>> << 2nd Standby Pump>>]
Back
Select
Sensor at Pump Set.
Sensor Type
[ << disabled>> << transducer 1-6V >> << transducer 4-20 mA >> <<transducer 0-20mA >>
<<transducer 2-10V >> <<transducer 0-10V>> <<normally open >> <<normally closed>>]
Input
[1,04] AI
Minimal Value
[ 0] PSI
Maximal Value
[ 0] PSI
Vent Valve
[ 0] PSI
Max. System Valve
[ 0] PSI
Back
Select
Alarm
Output Type
[ << normally closed>>
<< normally open>> << disabled>>
Output No.
[ 1,02 ] O
Back
Select
Remote Manual Lube
Input Type
[ <<disabled >> << normally closed>>
<< normally open>>]
Input No.
[1,05 DI
Back
Select
Back
Select
Note!
Additional buttons in transducer setting
Motor Protection
Motor Protection Type
[ << normally closed >> << normally open>> << disabled>>
Input No.
[ 1, 04 ] DI
Back
Select
Temperature Control
Internal Sensor
External Sensor
Temperature Limits
Back
Select
Internal Sensor
Internal Sensor
[ << enable>><< disable>]
IO Bord
[ 1 ]
Back
Select
Temperature Limits
Over temperature
[ 180,0 ] F
Under temperature
[ 14,0 ] F
Back
Select
External Sensor
Sensor Type
<< disabled >> << transducer 1-6V >> << transducer 4-20 mA >> <<transducer 0-20mA >>
<<transducer 2-10V >> <<transducer 0-10V>> << normally open >> << normally closed >> ]
Input
[ 1,02 ] DI
Minimal Valve
[ 0000 ] PSI
Maximale Valve
[ 0000 ] PSI
Back
Select
Note!
Additional buttons
in transducer setting
Monitoring
Filling monitoring type
[ << Low Level Detection>> << Auto Filling>> << disabled>>
Lube Limited By
[ << LL Lube Cycles >> << LL Pump time >> << disabled>>
Back
Select
Timings
Filling Timeout
[ 00: 00: 00 ]
Detection LL Time
[ 00: 00: 00 ]
Back
Select

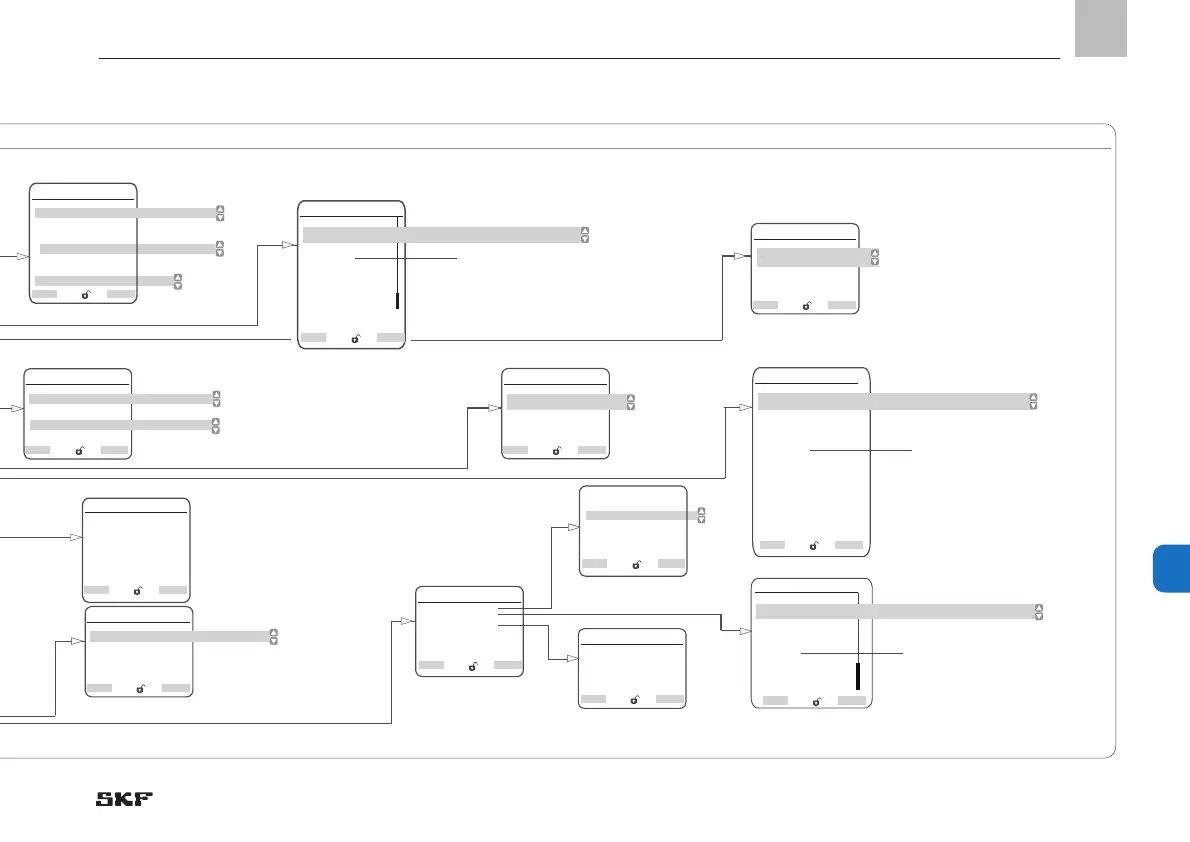

Setting options for pump settings, Fig. 32
