SKF LMC 301 series User Manual

11. System configuration

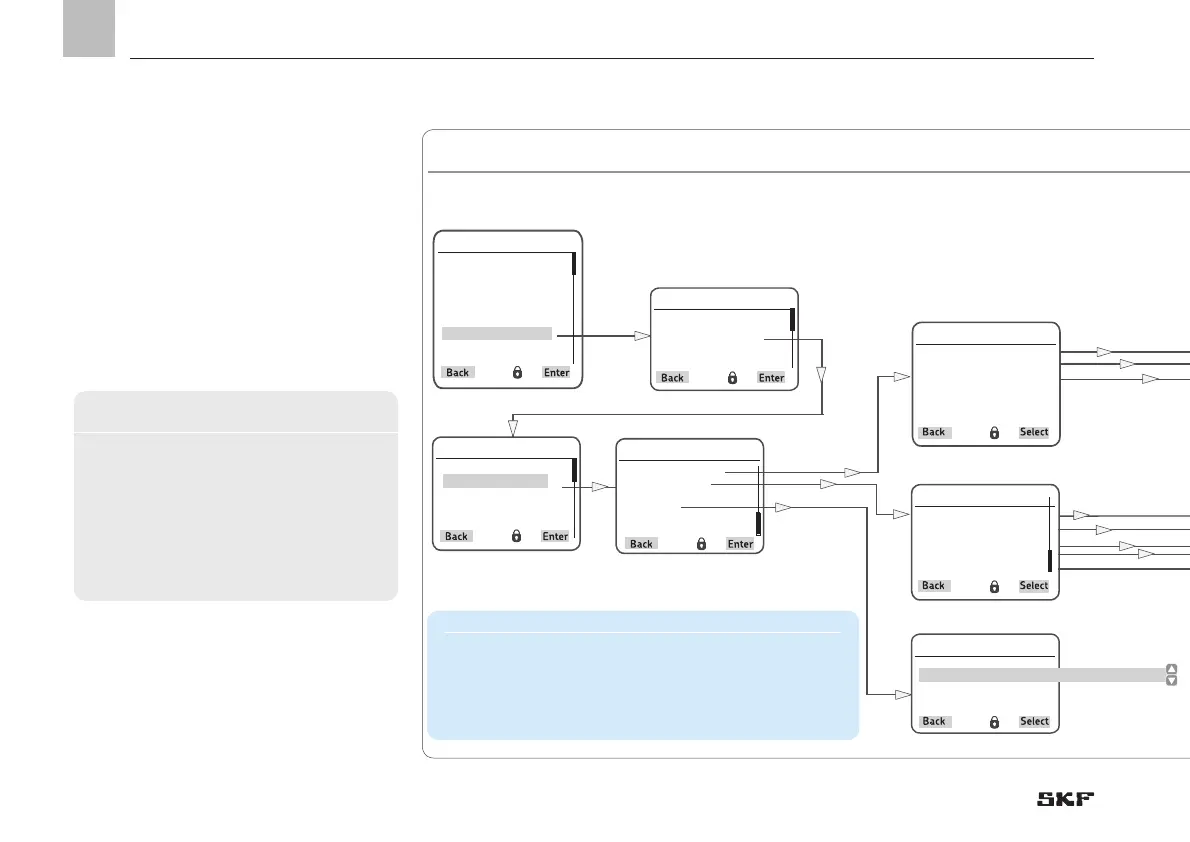

11.2 Menu navigation for system configuration - zone settings
11.2.1 With two 3/2 directional zone valves
per zone
SKF 3/2 directional solenoid valves are
high-performance ball seat valves for
Dual Line centralized lubrication systems.
These are available in an open design
(C => B) for a max. permissible pressure of
500 bar or in closed design with a max. per-
missible pressure of 320 bar.
Application-specific nomenclature
EOL End of the main line
Valve Zone valve
Valve B Valve for connecting a redundant pump
Proximity sensor For stroke monitoring
Login settings
User settings
Device settings
Pump 1 Timings
System configuration
Informationen
Main Menu
System configuration
Amount of pumps
Pump 1settings
Set Params to Default
Restore Fact. Set
Pump 1 settings
Pump settings
Zone 1 Settings
Zone 2 Settings
Zone 1 Settings
Cycle Control
Lube Control
Alarm
Cycle Control
Timings
Release/Counter
Lube Load
Lube Control
Valve A
Valve B
Press. Sensor at EOL
Lube Control Time
Sensor
Alarm
Ausgangstyp
[ << nomally open >> << normally closed >> << dsabled>> ]
Output No.
[ 1,06 ] 0
Instructions
Directional control valves, open series
Document No. 161-120-064
161-120-065
Directional control valves, closed series
Document No. 161-120-028
Document No. 1-1703-EN
EN
94
