11. System configuration
11.6.4 Zone 1 Settings with DU1 or with MA/MP
) See illustration of zones in Chapter 11.2.4 (DU1) or 11.2.5 (MA/MP)
Pump settings => Zone 1 Settings => Lube Control/Check-Back Signal with DU1/Valve with MA/MP

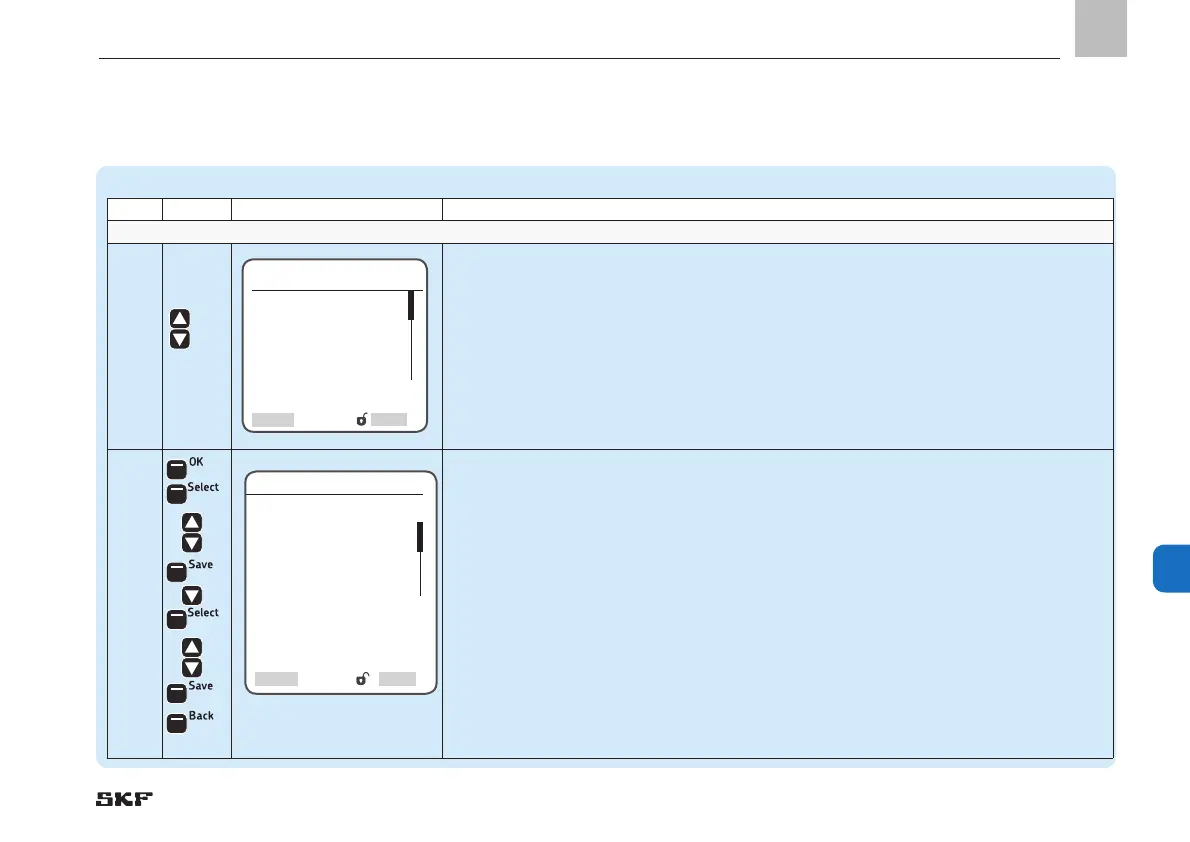

Step Key Display Description
Zone 1 Settings/Lube Control
1
• Use <down/up arrow key> to select the Lube Control menu
• Press <OK control key>
)You will enter the Lube Control menu
)The following settings are available:
o Change-over Signal for Hydraulic Changeover Step 1.1
o Press. Sensor at EOL Step 1.2
o Main Line Timings Step 1.3
o Proximity Sensor Step 1.4
1.1
• Use <OK arrow key> to select check-back signal for hydraulic change-over of DUI1
or:
• Use <OK arrow key> to select valve for change-over with MA/MP
• Press <Select control key>
• Use <down/up arrow key> to select between menu items normally open, normally
closed, or disabled
• Press <Save control key>
• Use <down arrow key> to select the Input No. menu item
• Press <Select control key>
• Use <down/up arrow key> to enter the input No.
• Press <Save control key>
• Press <Back control key>
Lube Control
Change-Over Signal
Press. Sensor at EOL
Main Line Timings
Proximity Sensor
Change-Over Signal with DU1
Valve for MA/MP
Output Type
[
<<normally open>><<normally closed>>
<<disabled>>
]
Input No.
[0.000]
Select
Back
SelectBack
EN
147
11
