6. Configuration by operator/local admin

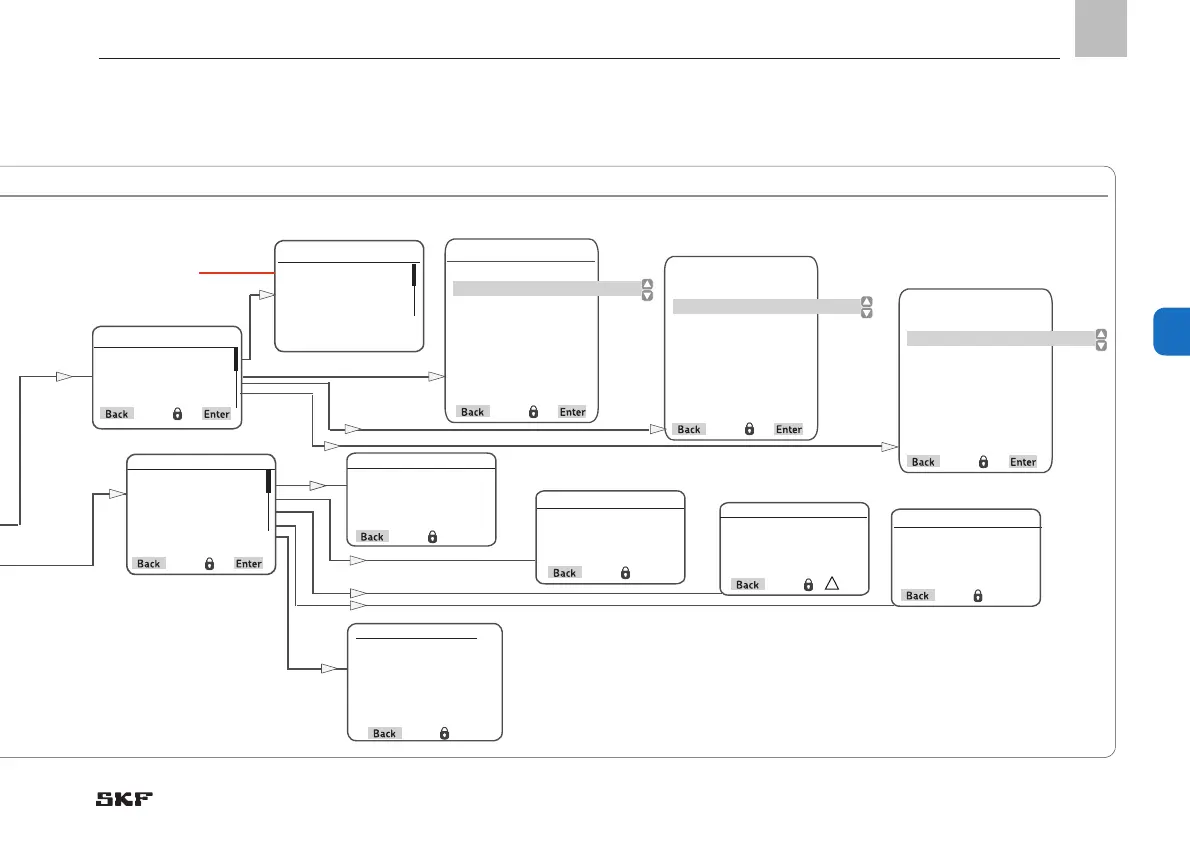

Setting options for local admins, Fig. 25
Zone 1 Settings
Lube Load
Normal Cycle Time
[ 0000: 00:00 ]
Heavy Cycle Time
[ 0000: 00:00 ]
Lube Time
[ 00: 00:00 ]
Holding time
[ 00:00 ] s
Pump 1 Timings
Pump Timings
Zone 1 Settings
Zone 2 Settings
Zone 3 Settings
Zone 2 Settings
Lube Load
Normal Cycle Time
[ 0000: 00:00 ]
Heavy Cycle Time
[ 0000: 00:00 ]
Lube Time
[ 00: 00:00 ]
Holding time
[ 00:00 ] s
Information
HW/FW Version
Hours of operating
Error history
Serial Number
HW/FW Version
Hardware version
[.....]
Firmware version
[.....]
Hours of operation
Cumulated
operating Time
.................................
Error history
No. 1 .........
!
Serial Number
Serial Number
[00000000]
[Normal Cycle Set] << >> [Heavy Cycle Set]
[Normal Cycle Set] << >> [Heavy Cycle Set]
Lube Event Counter
P1Z1
[ 0]
P1Z2
[ 0]
P1Z3
[ 0]
Lube Event Counter
Zone 3 Settings
Lube Load
Normal Cycle Time
[ 0000: 00:00 ]
Heavy Cycle Time
[ 0000: 00:00 ]
Lube Time
[ 00: 00:00 ]
Holding time
[ 00:00 ] s
[Normal Cycle Set] << >> [Heavy Cycle Set]
Pump Timings
Zone Relief Time
[ 60] s
Pump Relief Time
[ 60] s
Note!
Menu only upon activation of the
3/2 zone valve
(System configuration => Pump setting =>
System Type => Zone valve type)
