S10.6.7 TENSIONING AND CENTERING OF THE CONVEYOR BELT MATS
MACHINE STATUS: stops for tensioning mats; in function for centering mats
FREQUENCY: montly
REQUIRED MATERIAL: wrench CH10
PROCEDURE:
• By means of the operator panel adjust the parameter “Operation” (inside the menu “Format
parameters”→”Options”) in “Free passage”;
• enable the parameter “Multipack” (inside the menu “Format parameters”→”Pack”);
• press the key START in order to activate all the belts, then follow the specific instructions here below,
provided for their adjustment.

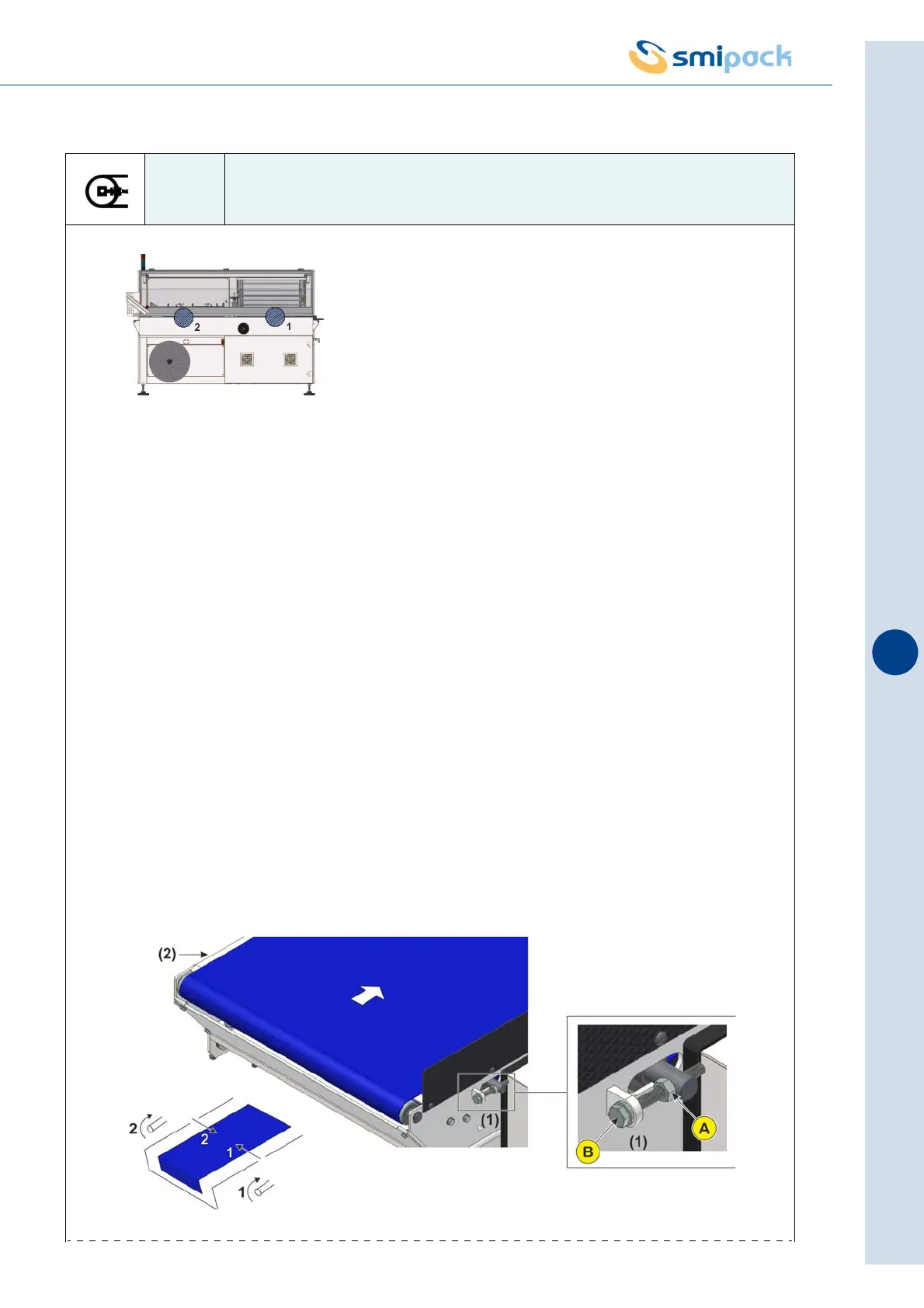

1) Centering the mat of infeed belt
Having the infeed belt activated loosen the nut (A) and then tighten the screw (B) to move the conveyor
mat as shown in figure. Conversely unscrew to move the conveyor mat to the opposite side.
At the end of regulation block the nut (A) previously loosened.
Note - The tensioning should not be excessive but the minimum so that the mat does not slip on the
rubber roll.
