9 - Operation and use
86
>PRODUCT NOTES
The parameters in this menu do not affect machine operation but allow the operator to register
information concerning the mechanical adjustments required for each format changeover.
1 - Product height : enter the height of the product.
2 - Product width : enter the width of the product.
3 - Product length : enter the length of the product.
4 - Width of the film reel : enter the width of the film reel.
5 - Position of the film waste recovery device : Insert the position of the hook of the film
waste recovery device.
6 - Position of product guides : enter the position of the product guide on the conveyor belt.
(refer to millimetric line X
1
)
7 - Position of the film return roll : insert the position of the film return roll.
>OUTSIDE BELTS (optional)
This menu can be used exclusively with equipment manufactured by SMIPACK. The menu
allows you to configure the outside conveyor belts and manage them through the packaging
system operator panel.
1 - Outside infeed belt operation
With this menu you can choose the operating mode for the outside conveyor belt located in
front of the machine:
- PREREGULATED SPEED : the outside conveyor belt operates at the pre-set speed through
the (A) parameter (A)
- SYNCHRONISED SPEED : the outside conveyor belt operates at a speed that is
synchronised with the speed of the machine's infeed belt.
- TIMED SPEED : the activation and stopping times for the outside conveyor belt are managed
through the (B) and (C) parameters.

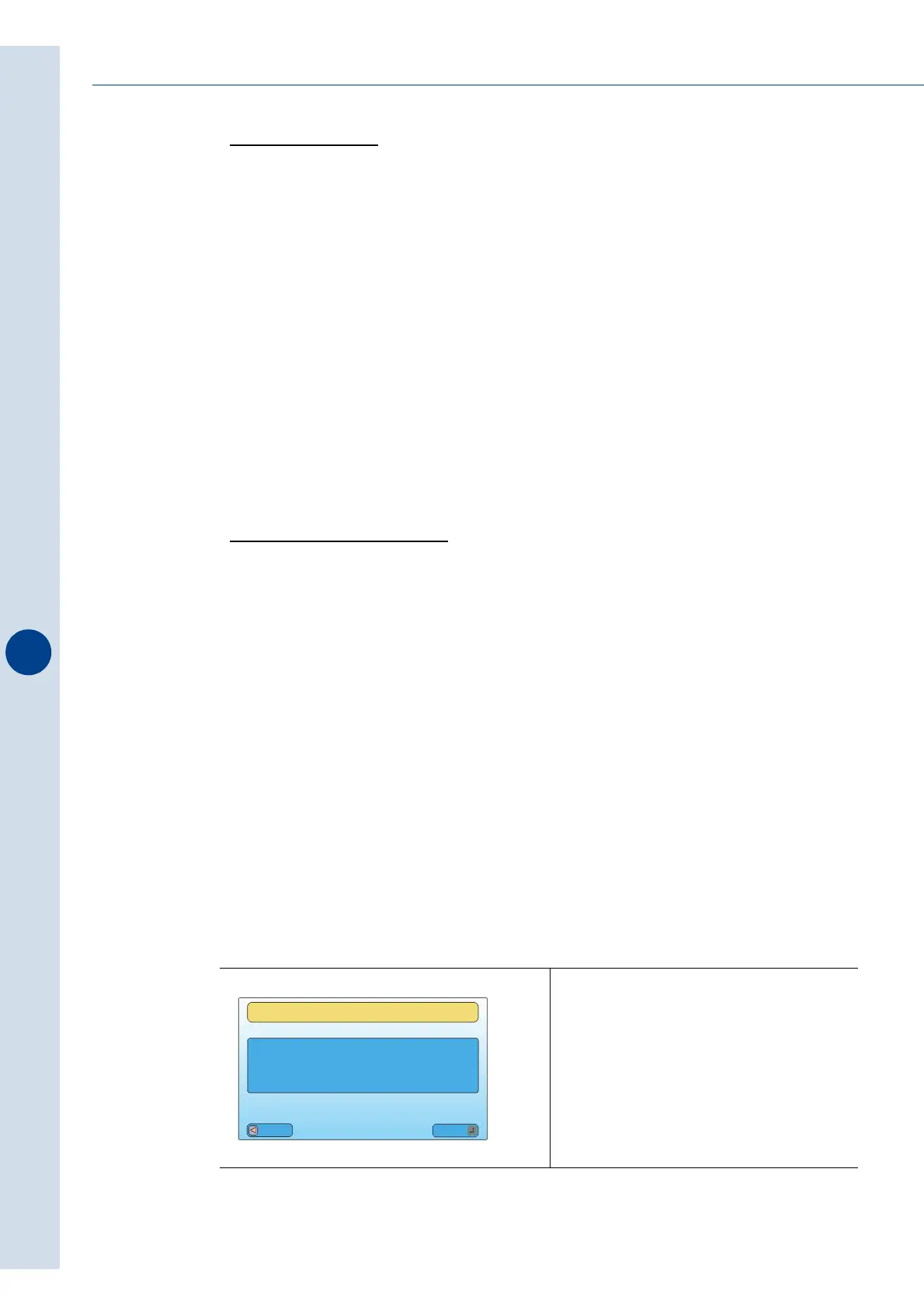

Fig. 9.13.29
OUTSIDE BELTS
OUTSIDE BELT
INFEED OPERATION
Esc
Mod
PREREGULATED SPEED
