Operating via a web browser within your own network
2.2 Overview
2.2.1 General Navigation

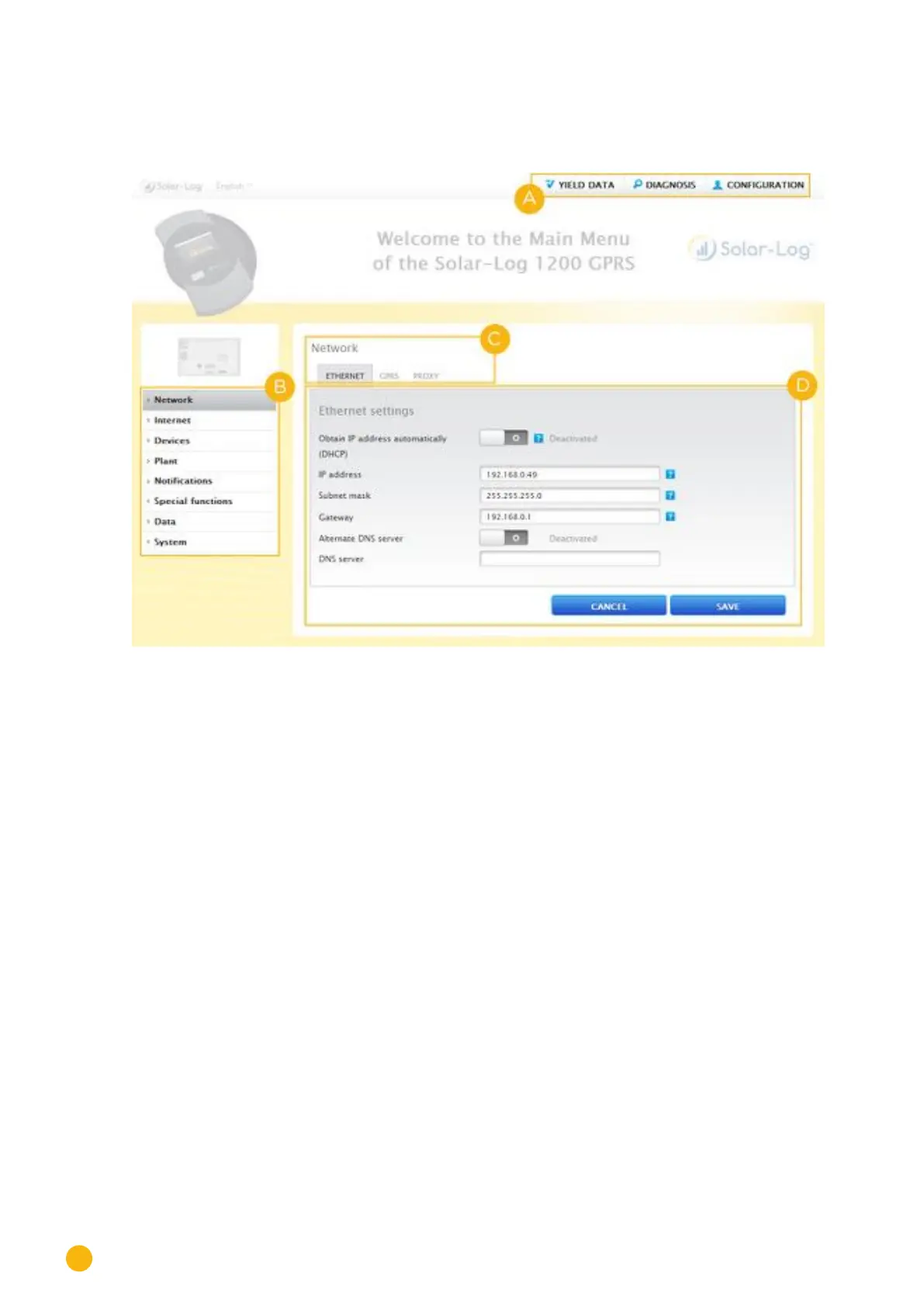

Fig.: Navigation designations
The start page contains the following sections:
•
Header bar (A)
•
Left navigation (B)
•
Tabs (C)
•
Configuration page (D)
Header bar
The header contains three major sections:
•
Yield data. Here you will find your plant's yield overview within certain periods of time such as day,
month, year and the total yield to date.
•
Diagnostic. Here you can view the fault and process messages while filtering them according to
specified criteria.
•
Configuration. Here you can change the device settings as required.
Left-side navigation menu
Depending on the tab selected, you can access additional functions from the navigation menu (left-side).
Tabs
Additional configuration sections appear according to the function selected.
