Solar-Log 2000 User Manual

112
Using the Solar-Log™ Android App
8.5.4 Total Overview
1. Tap on the symbol in the toolbar at the top right corner of the screen.
The navigation screen then appears.
2. Select Total to go to the Total Overview.

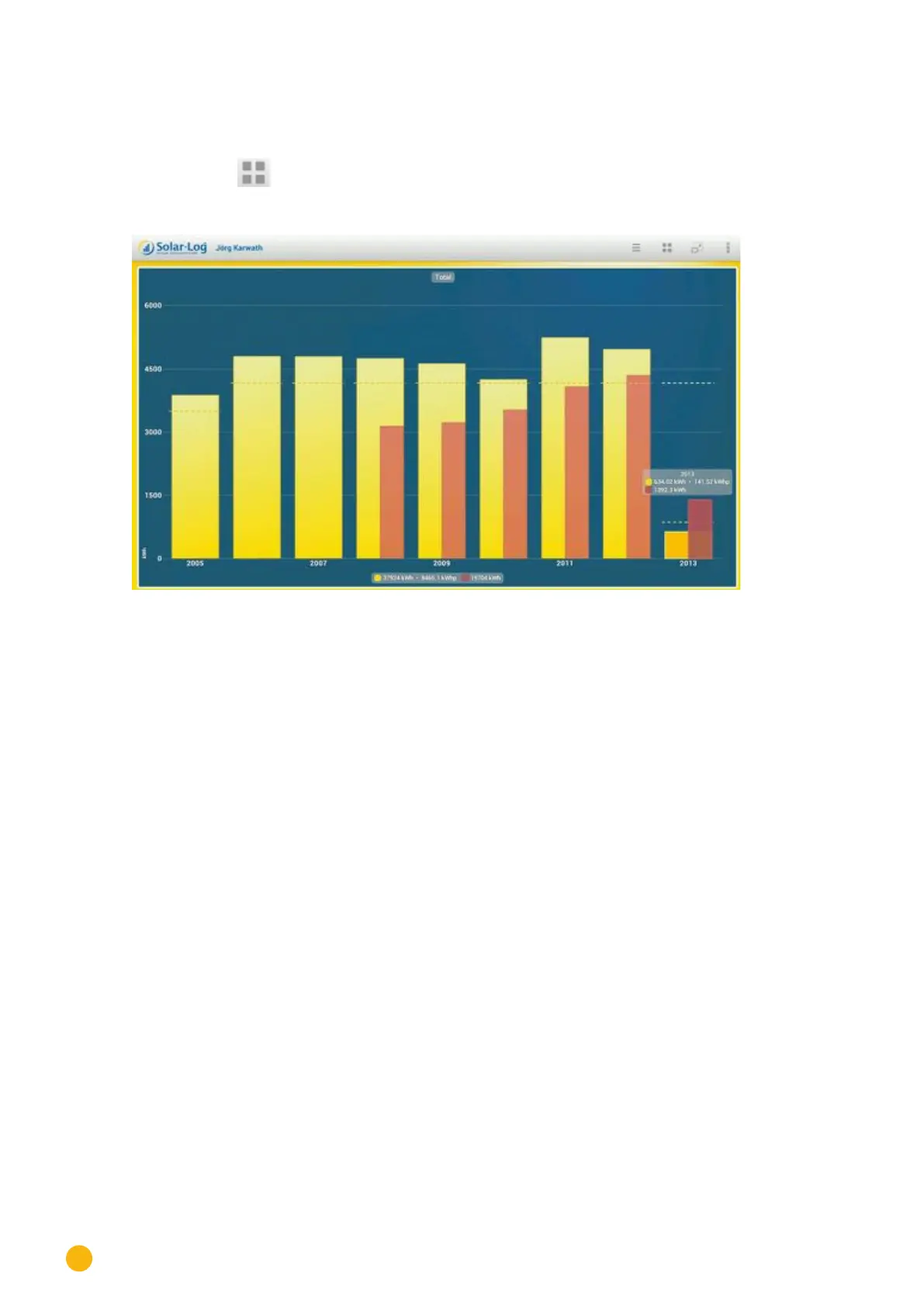

Fig.: Total Overview as a bar graph
Swipe up or down to change the module views.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
