Solar-Log 2000 User Manual

17
Operating via a web browser within your own network

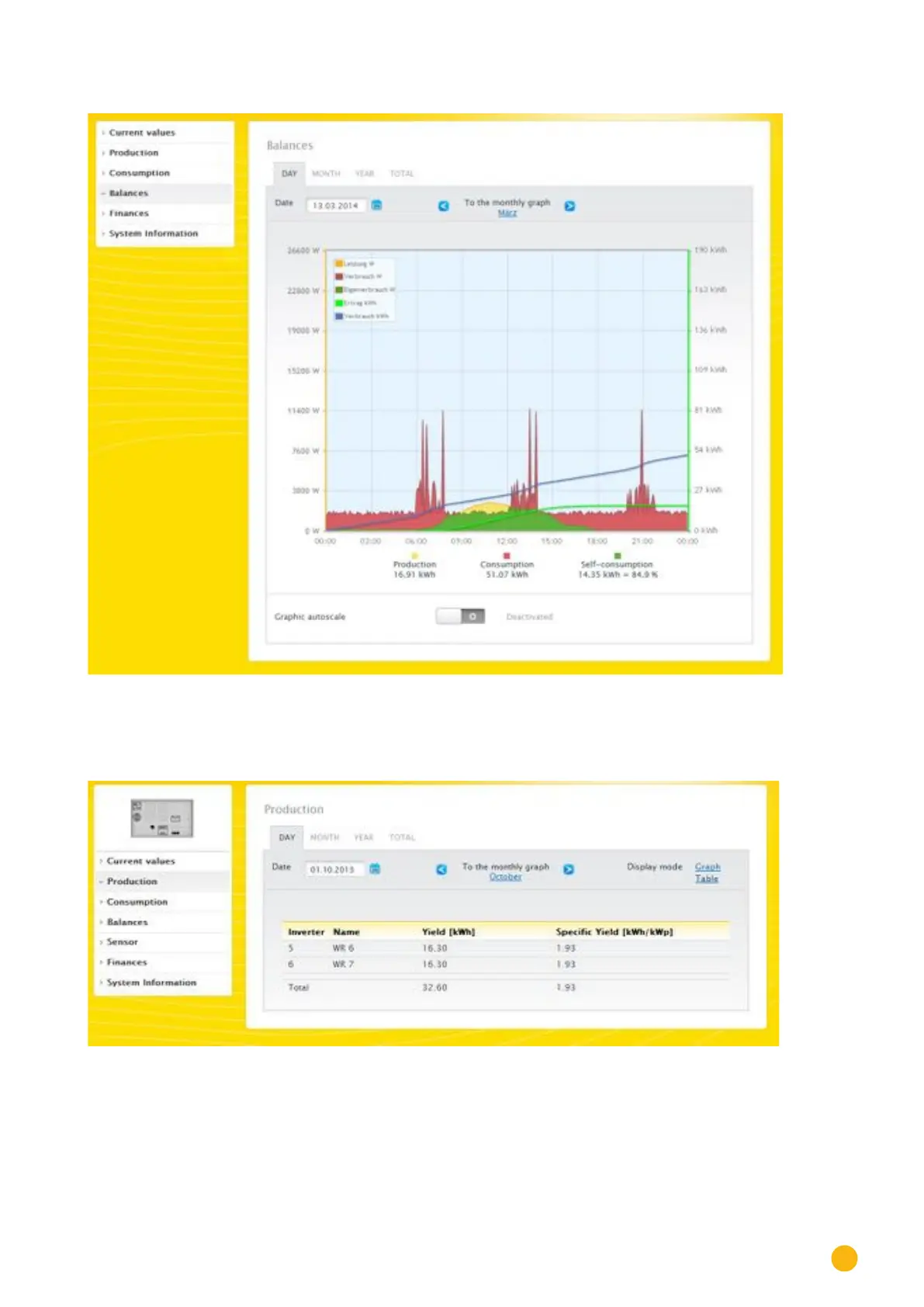

Fig.: Daily View of the Production Graph with the Auto Scaling deactivated
Different values with different units are displayed in the graph. The units used and their colors are defined
in the key at the top.
Fig.: Day view of the production table
When you click on Table, the values from the current output generated will be allocated to the individual
inverters and displayed as a table. In this way, you can check the output of every inverter at any time.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
