Solar-Log 2000 User Manual

45
Operating via a web browser within your own network
2.10.5 Accessing the SCB Monitor (only Solar-Log 2000)
To access the SCB Monitor menu, go to Diagnostic | SCB Monitor.

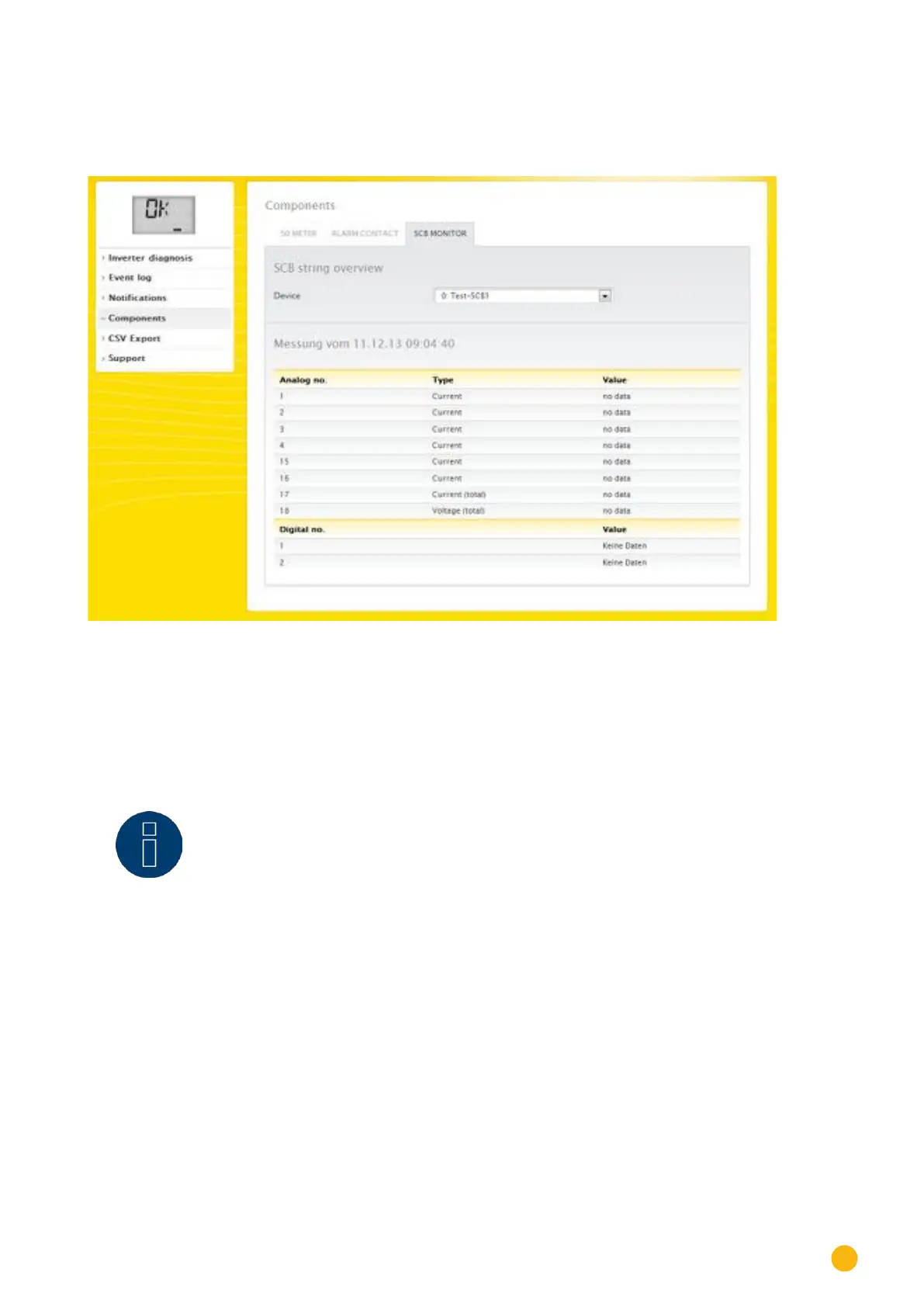

Fig.: SCB string overview
The
SCB String Overview is displayed in a split-screen window. The connected devices (SCBs) can be
individually accessed in the top screen via the pull-down menu.
The bottom screen displays the current measurements of the individual strings based on the analog and
digital number.
Note!
The SCB Monitor menu only appears when a SCB is connected.
It is also only available with the Solar-Log 2000.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
