Solar-Log 2000 User Manual

78
Operating the Solar-Log 500 and 1000 via the Display

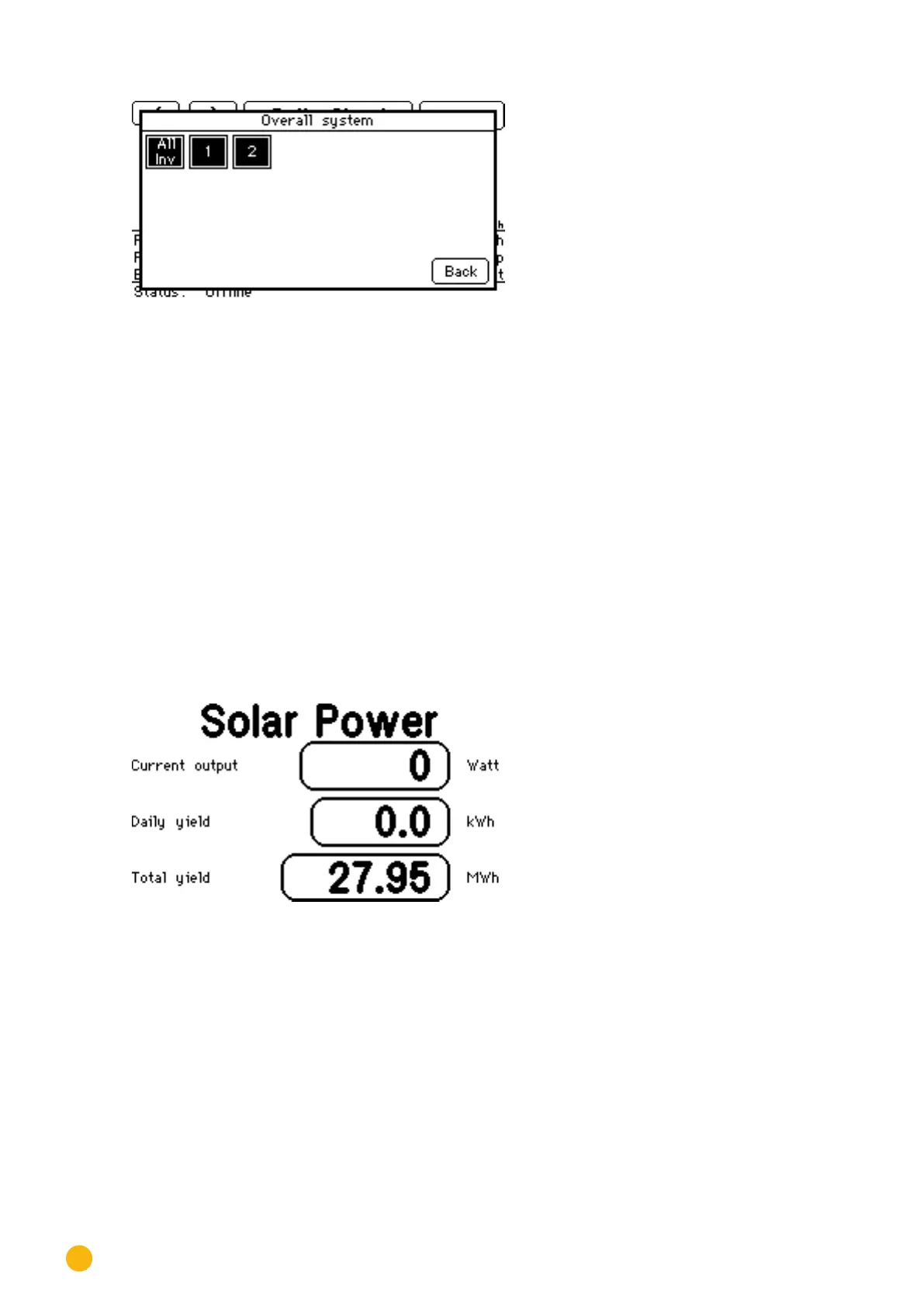

Fig.: Total Plant
Select the desired inverter and tap on Back.
•
The values from the selected inverter are displayed.
Tap on the display to access the Main Navigation.
5.4.7 Large External Display
Tap your finger on the display.
•
The main navigation screen is displayed.
Tap on Graph and then on the Large external display
.
•
The detailed view of the current yield values is displayed.
Fig.: Large External Display
The large external display presents the current output of your plant.
Tap on the display to access the Main Navigation.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
