Operating the Solar-Log 500 and 1000 via the Display
Select the desired inverter and tap on "Back."
•
The values from the selected inverter are displayed.
Tap on the Daily Graph to display the additional measured values.
Select the desired view and tap on "
Back."
•
The selected setting is displayed.
•
If you selected the yield curve, the target value is also displayed.

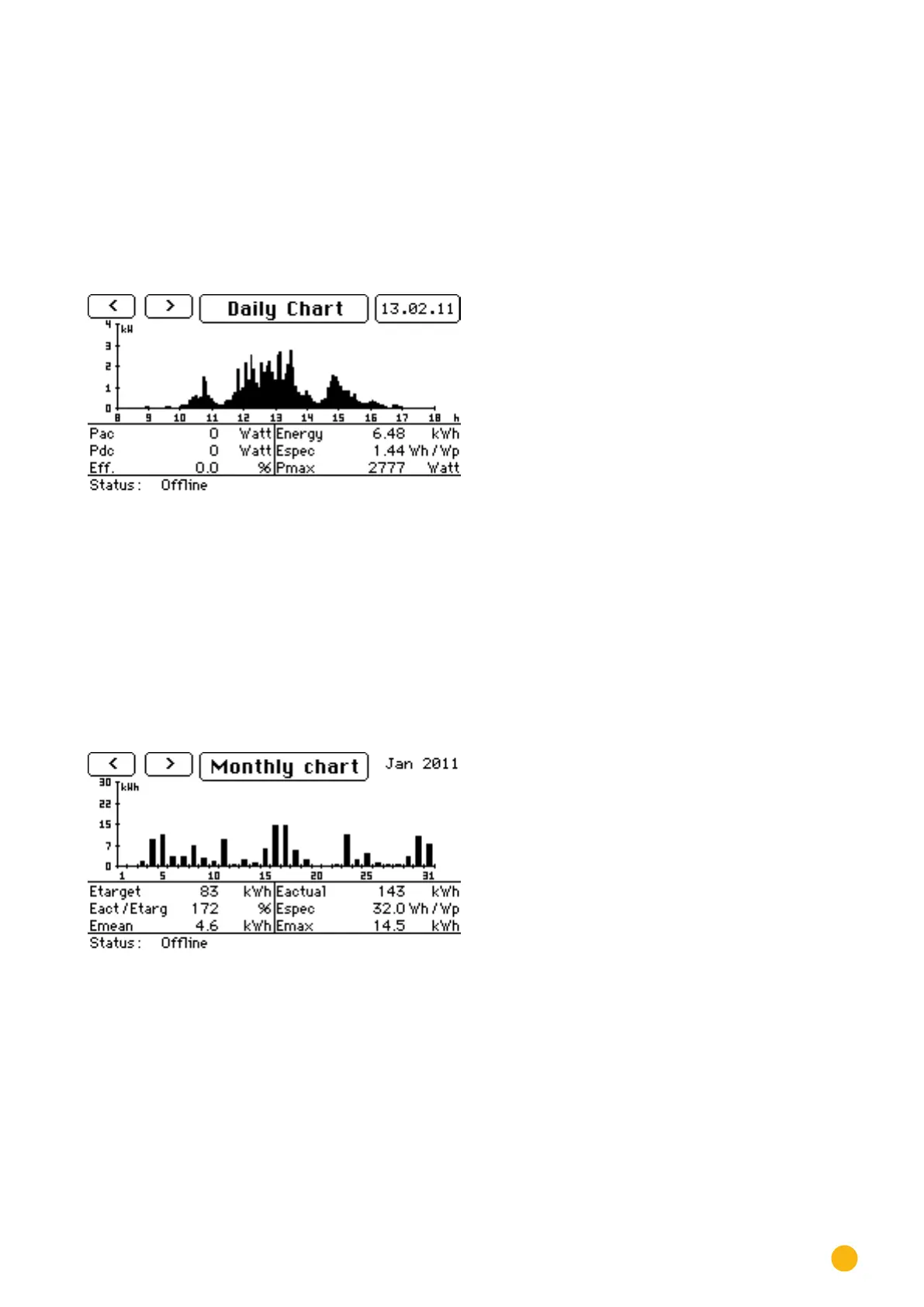

Fig.: Daily Graph
Tap on the display to access the main Main Navigation.
5.4.4 Monthly Graph
Tap your finger on the display.
•
The main navigation screen is displayed.
Tap on Graph and then on the Month.
Fig.: Monthly Graph
The monthly graph displays the current values for the selected month.
Tap on the displayed bar to view the Daily Graph for the selected day.
Tap on the Monthly Graph to display the yield values for the connected inverters.
•
The Total Plant menu window is displayed.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
