Solar-Log 2000 User Manual

110
Using the Solar-Log™ Android App

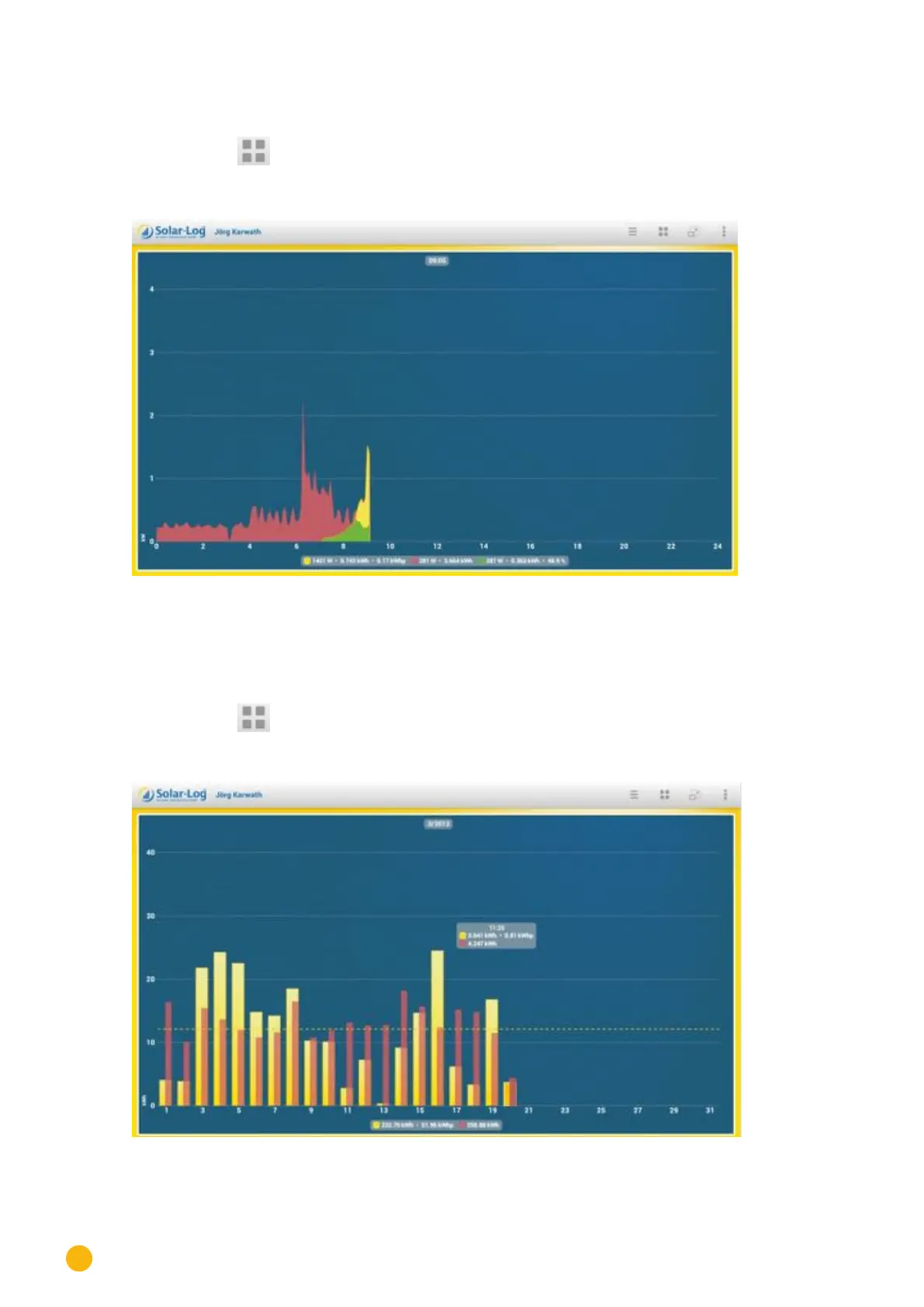

8.5.1 Daily Overview
1. Tap on the symbol in the toolbar at the top right corner of the screen.
The navigation screen then appears.
2. Select Day to go to the daily overview.
Fig.: Day curve.
3. Swipe to the left to go to the next view or to the right to go back to the previous view.
4. Swipe up or down to change the module views.
8.5.2 Monthly Overview
1. Tap on the symbol in the toolbar at the top right corner of the screen.
The navigation screen then appears.
2. Select Month to go the monthly overview.
Fig.: Monthly Overview as a bar graph

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
