35
Operating via a web browser within your own network
Inverter details
To access the Inverter details menu, go to Diagnostic | Inverter Diagnostic | Inverter details.
A particular date and device (e.g. inverter or sensor) can be selected under inverter details and evaluated.

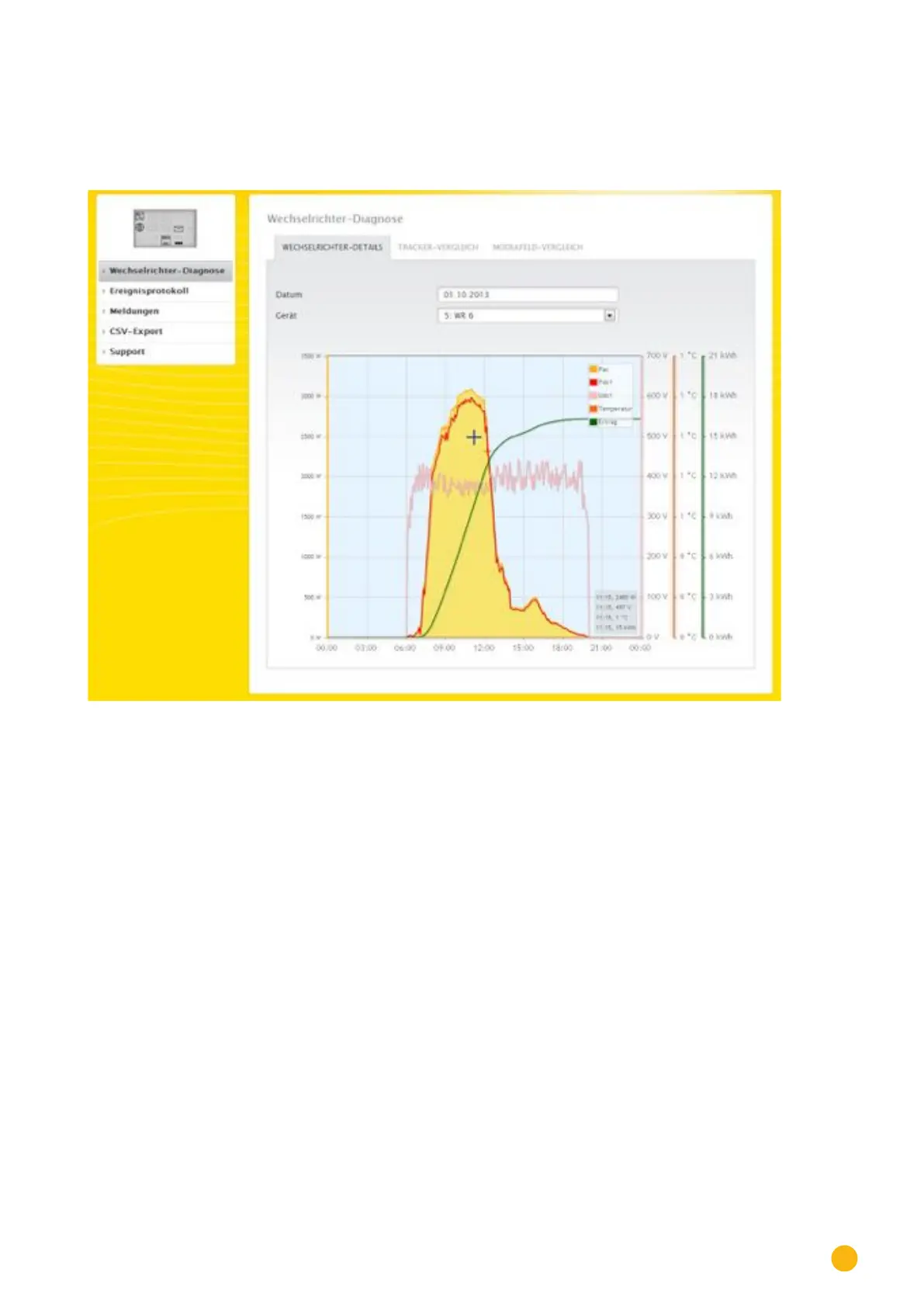

Fig.: Inverter details graph
In the example (see Fig.: Inverter details graph), the following values can be displayed for the inverter:
• Pac
• DC power 1
• DC voltage 1
• Temperature (this value is displayed if the inverter supports this function. Otherwise only the
value 1/0 C° is displayed in the graph.)
• Yield
All of the displayed values can be directly selected and deselected at any time by clicking in the graph key
(upper-right corner of the graph),
