Using Solar-Log WEB
Additional functions with S0 power meters
The following displays are additionally available when an S0 power meter is connected to the Solar-Log™.
•
CM: Displays the power consumption of your building as a graphic in watts.
•
Cons.: Displays the power consumption of your building as a curve in kWh.
•
Values: Displays various values for your inverter as text.
•
Balances: Displays the relation between your power consumption and yield In the box at bottom
on the left, the ration is also displayed as a percentage.
Additional functions with the Sensor Box
Solar: Displays the reference value from an irradiation sensor. The plant's daily output has to lie within the
range measured by the sensor.
•
M °C: Displays the module temperature. The temperature is measured by the Sensor Box.
•
A °C: Displays the ambient temperature. This is measured by the ambient temperature sensor.
•
Wind: Displays the wind speed and strength. These values are measured by the wind sensor.
Click on the selection button and then on the magnifying glass icon.
• The selected curve is displayed.
7.3.4 Monthly Overview
Select Monthly Overview from the navigation menu.

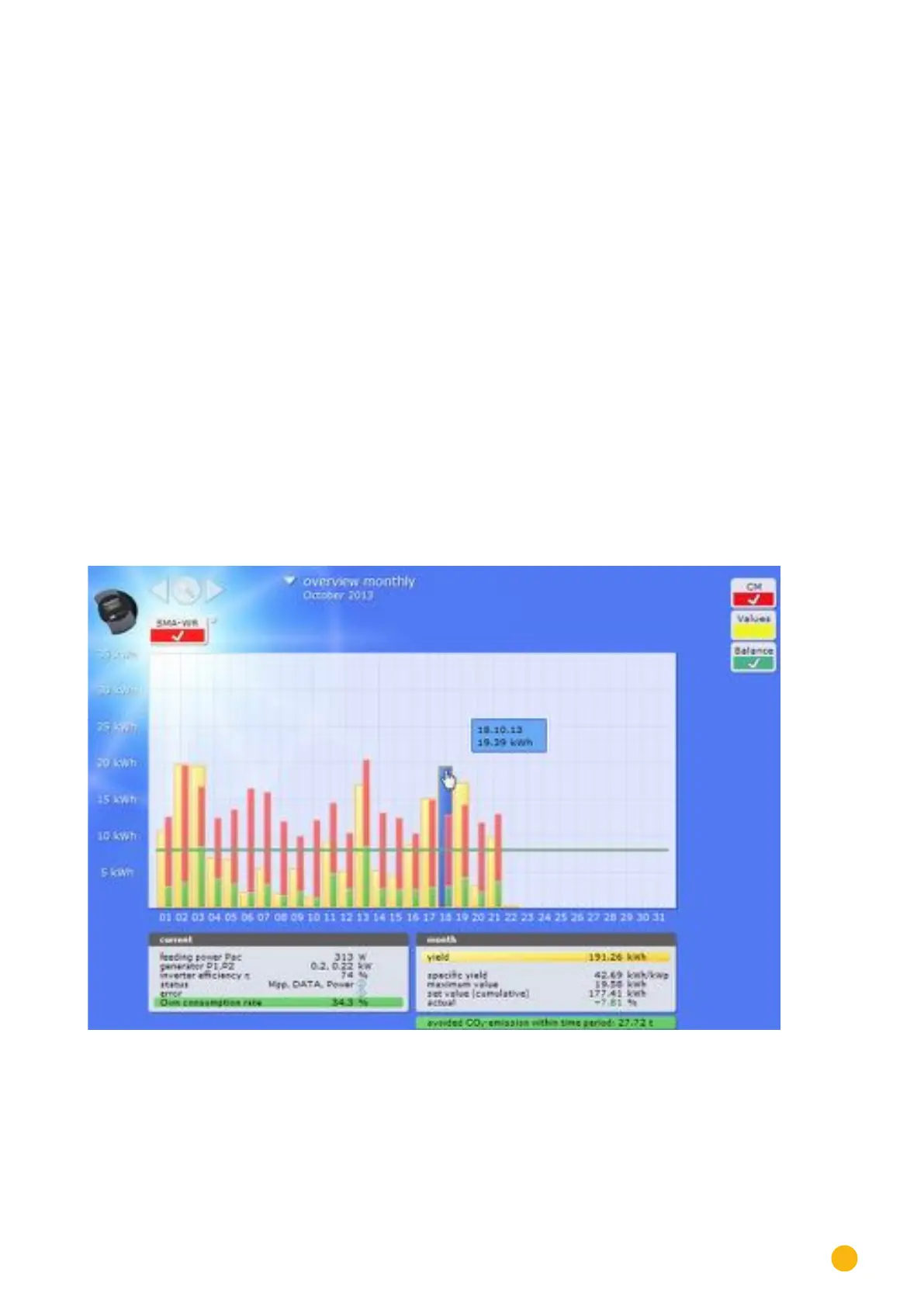

Fig.: Plant C2 - Monthly Overview
The daily yields from a month are displayed as a total in a bar graph. The dark green line indicates the
month's target yield.
Move the mouse above one of the day bars.
•
The yield from the selected day is displayed.
By clicking on a bar,
•
the corresponding curve is displayed.
