Solar-Log 2000 User Manual

77
Operating the Solar-Log 500 and 1000 via the Display

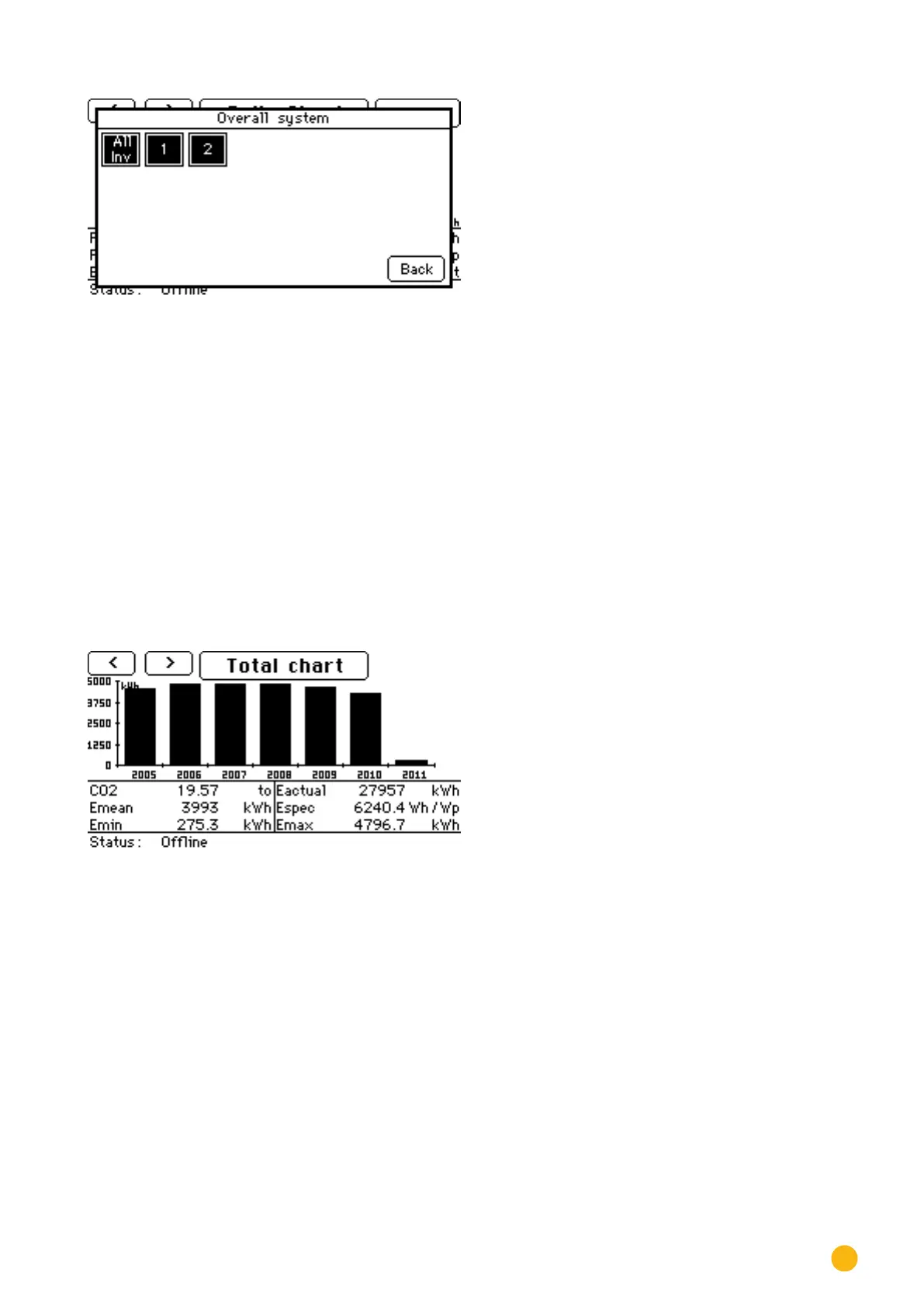

Fig.: Total Plant
Select the desired inverter and tab on
Back.
•
The values from the selected inverter are displayed.
Tap on the display to access the Main Navigation.
5.4.6 Overall Graph
Tap your finger on the display.
•
The main navigation screen is displayed.
Tap on Graph and then on the Total.
Fig.: Total Graph
The total graph displays the values for the plant since it has been monitored by the Solar-Log™.
Tap on the displayed bar to view the Yearly Graph for the selected year.
Tap on the Total Graph to display the yield values for the connected inverters.
•
The total plant menu window is displayed.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
