Solar-Log 2000 User Manual

116
Using the Solar-Log™ Android App
8.7.3 Slide show
In the Slide Show menu, you have the option to adjust the display duration settings and to select a back-
ground image.
By selecting
Slide Show, the following settings are available:
•
Display duration. You can determine after how many seconds the image should switch.
•
Background image. You can select the background image that is to be displayed when the respec-
tive value is activated.

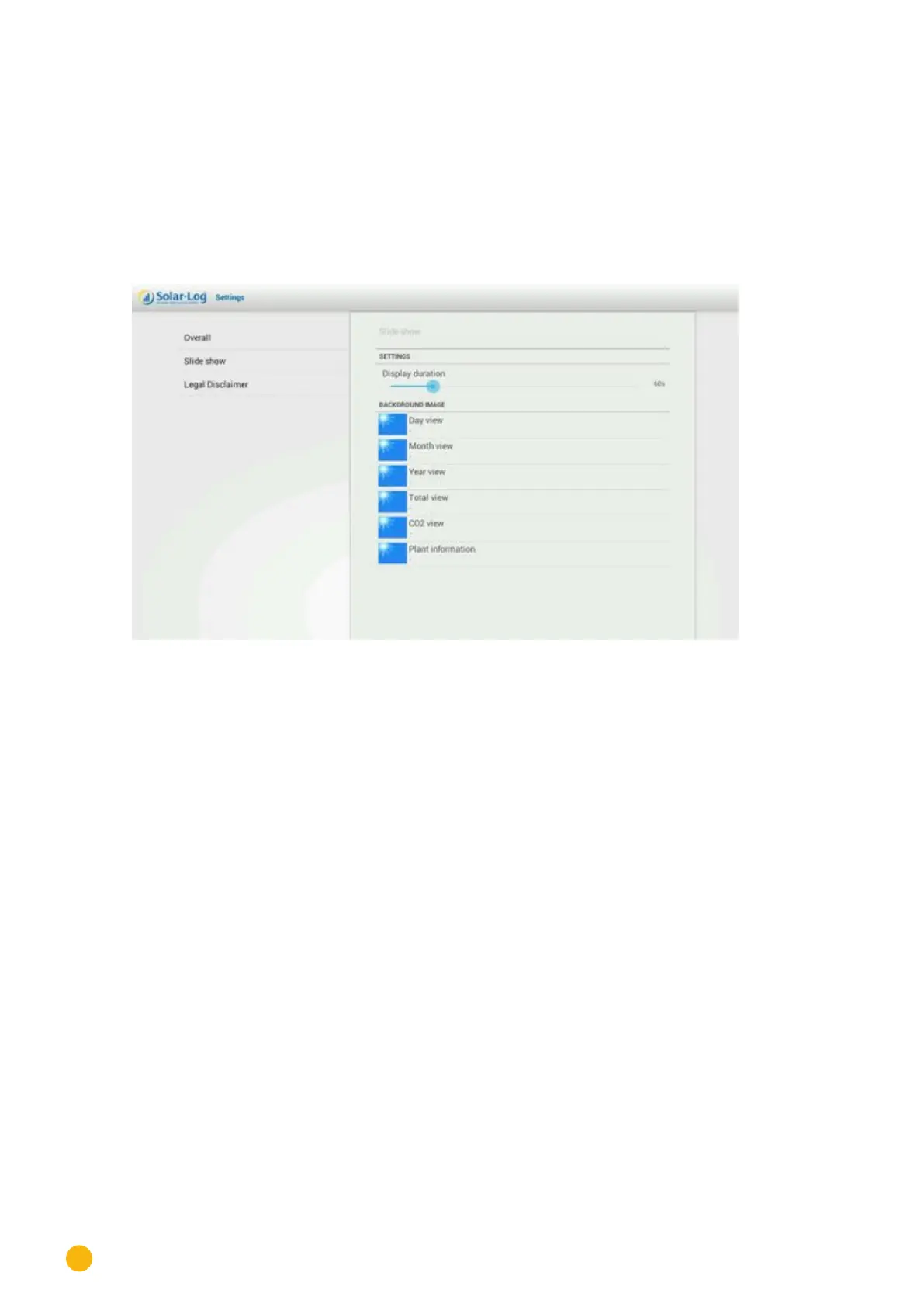

Fig.: Slide Show settings

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
