Solar-Log 2000 User Manual

111
Using the Solar-Log™ Android App
The daily yields of the selected month are displayed as a bar graph.
3. Swipe to the left to go to the next view or to the right to go back to the previous view.
4. Swipe up or down to change the module views.
8.5.3 Annual Overview
1. Tap on the symbol in the toolbar at the top right corner of the screen.
The navigation screen then appears.
2. Select Year to go to the annual overview.

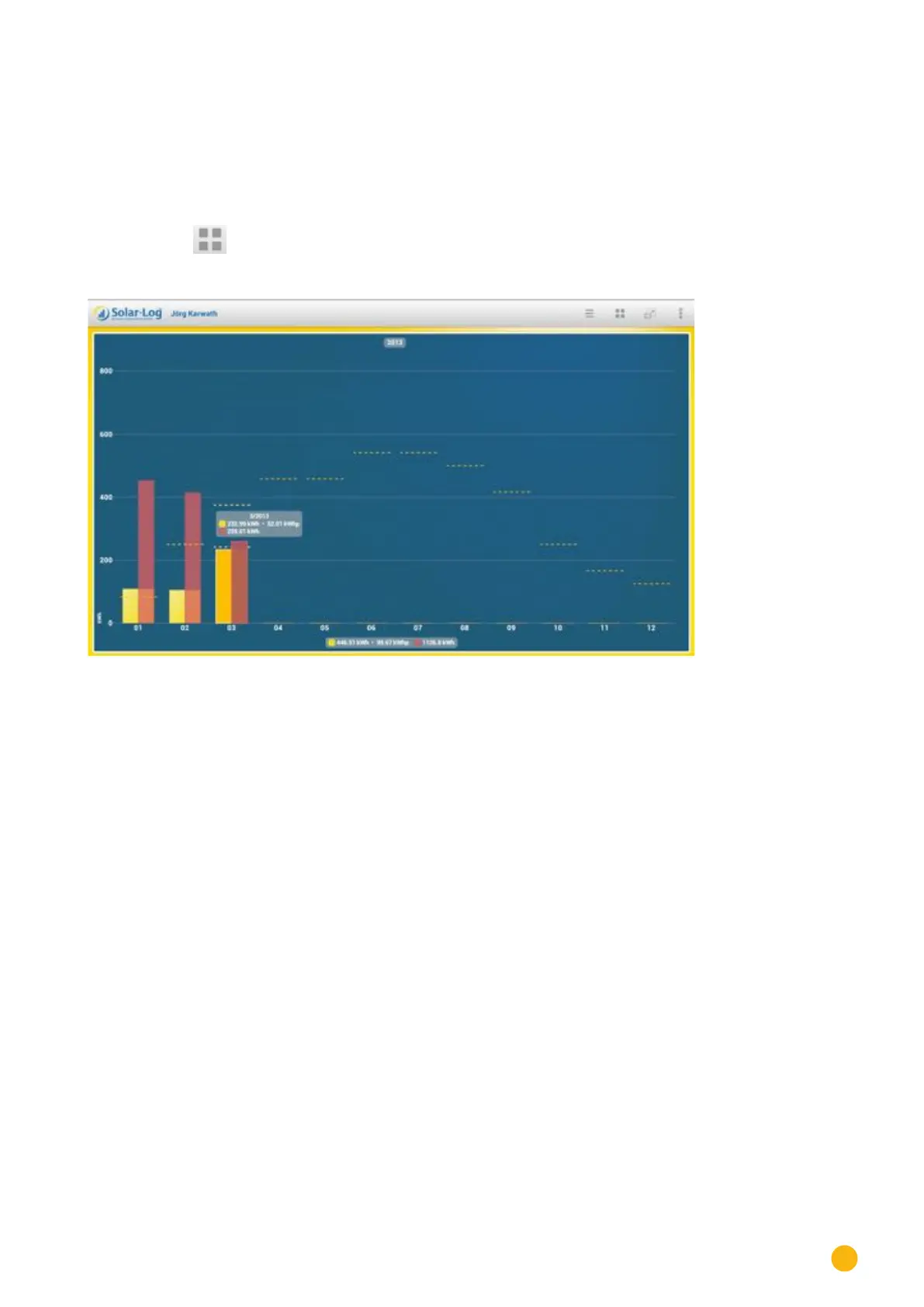

Fig.: Annual Overview as a bar graph
The monthly yields of the selected year are displayed as a bar graph.
3. Swipe to the left to go to the next view or to the right to go back to the previous view.
4. Swipe up or down to change the module views.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
