Using the Solar-Log™ App iPhone V3 for iPhones
9.5.3 Annual Overview
1. Tap the screen.
• The bottom menu bar is displayed.
2. Select Year to go to the yearly values.

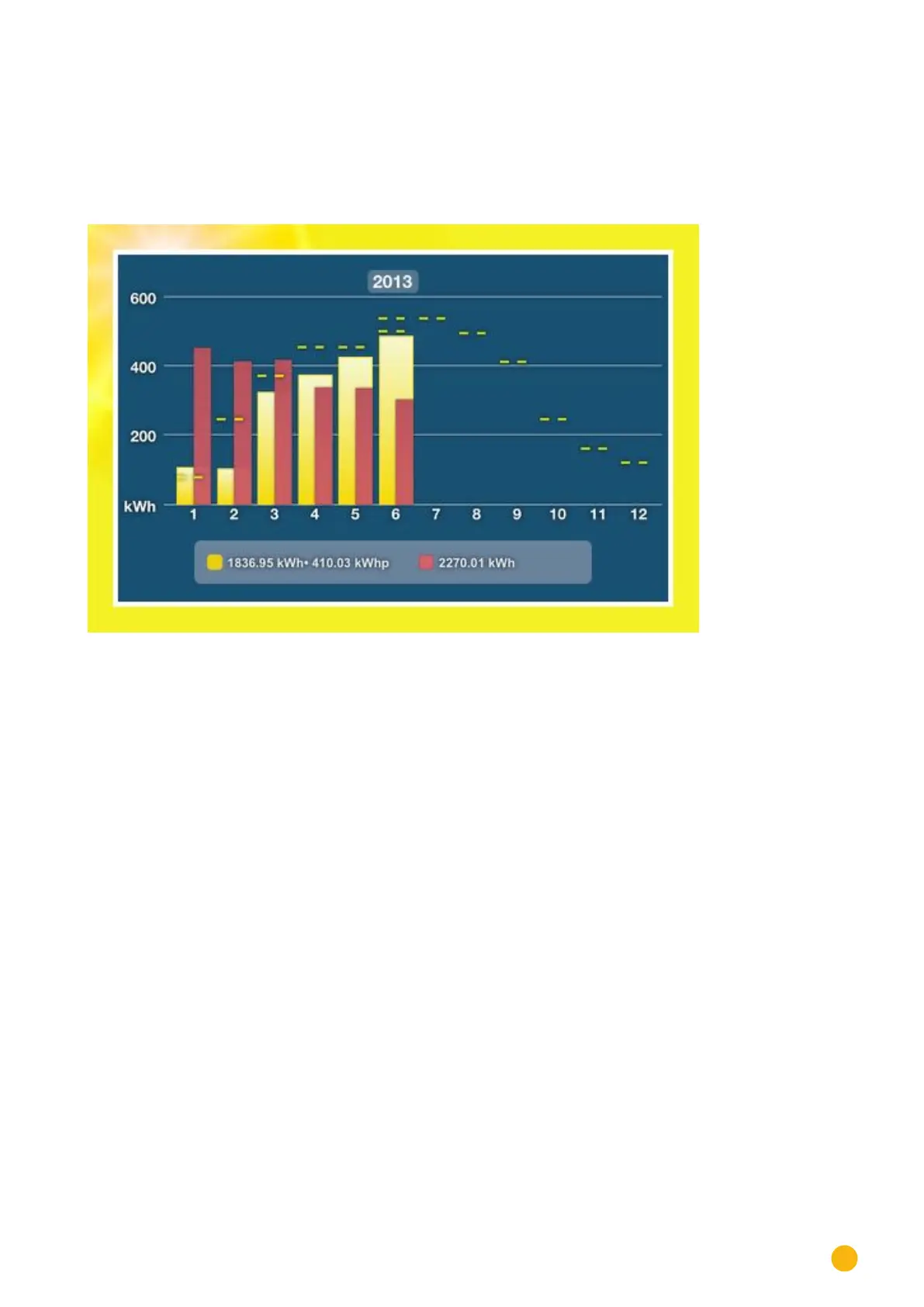

Fig.: Annual Overview in horizontal format
The monthly yields of the selected year are displayed as a bar graph. The dotted line in the view displays
the plant's calculated target value based on the annual forecast.
3. Swipe to the left to go to the next view or to the right to go back to the previous view.
4. Swipe up or down to change the module views.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
