Programming Soft Keys

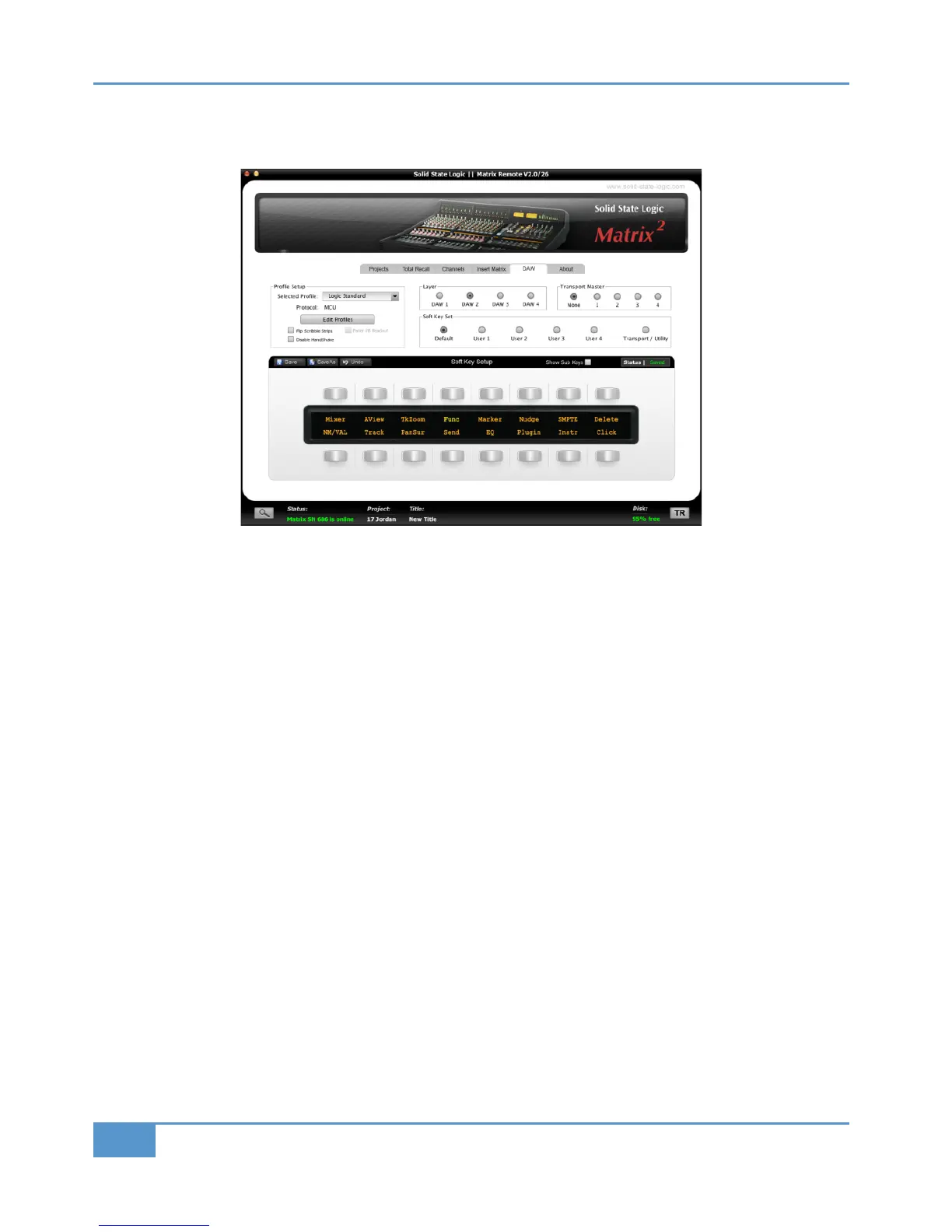

Soft keys are programmed from the * tab in the Matrix Remote:
Across the middle of the * tab’s window is a row of radio buttons marked &>5B4G&4B. These buttons select which set
of soft keys is present in the lower part of the window for editing. The five normal soft key sets, &B0=30@3 and (A4@ to (A4@
, are all edited in exactly the same way within the * tab. The '@0=A?>@B(B8;8BG set functions slightly differently and will
be dealt with on Page 103.
Below this row of buttons is a representation of the soft keys section of the Matrix control surface called &>5B4G&4BC?,
showing the 16 buttons and the central display, with current assignments indicated in the display. Six dashes in the display indicate
that the button is currently unassigned within this soft key set.
In the left-hand top corner of the &>5B4G&4BC? area are the &0D4, &0D4A and (=3> buttons, and towards the right-hand
top corner are the &7>E&C14GA box (see Page 101) and saved data &B0BCA indicator. The &B0BCA indicator shows whether
or not there are unsaved changes within the present soft key set. Assignments must be saved using the &0D4 or &0D4A button
in order for them to become active on the Matrix control surface. Unsaved changes can also be cancelled using the (=3> button.
Switching between soft key sets will lose any unsaved changes, and a pop-up window will appear, offering the option of &0D4 and
continue or 0=24; the set switch.
Soft key assignments only appear in the Matrix soft keys once they have been saved.
Chapter 6 - DAW and CC Configuration
100
Matrix
2
Owner’s Manual
