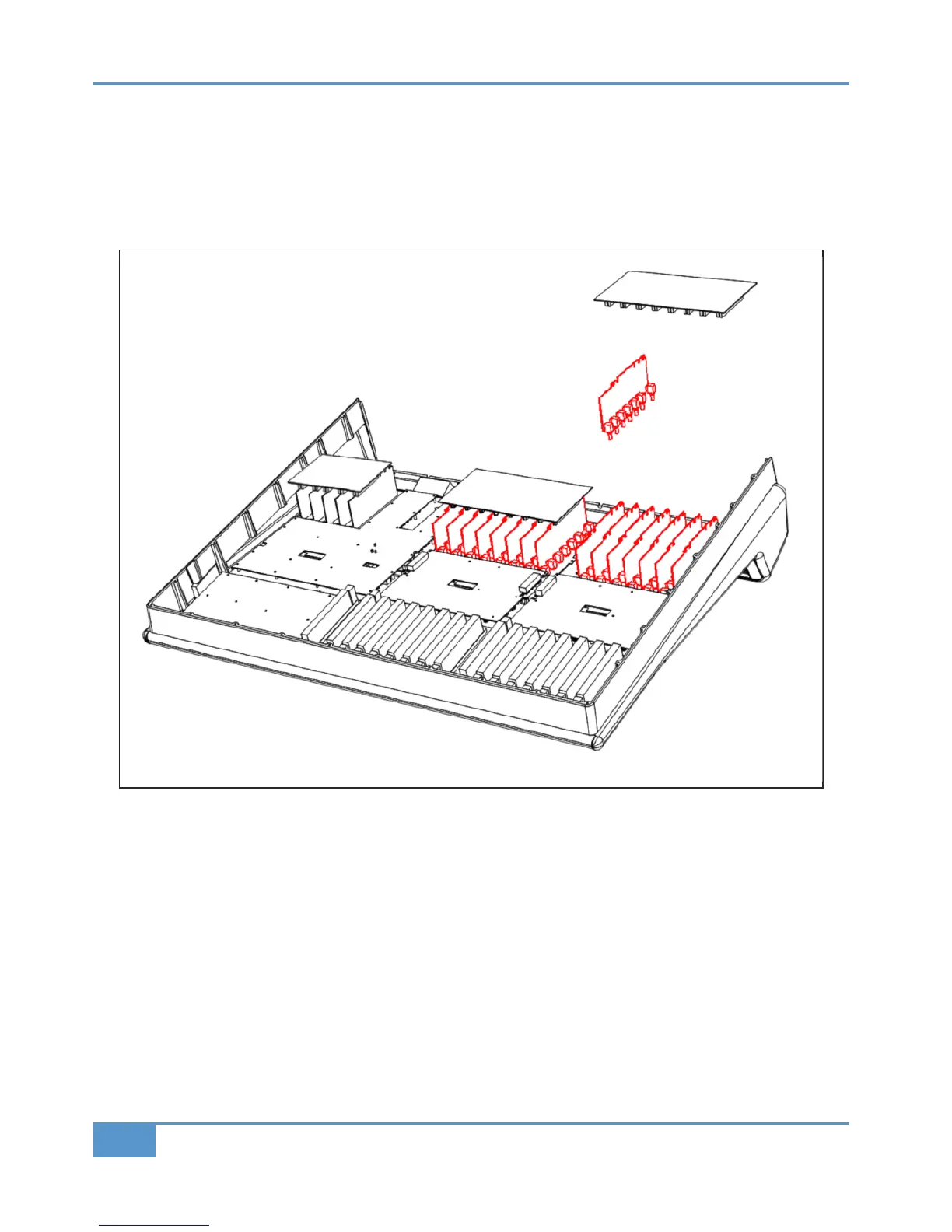

12 - 629501X2 Channel Module Replacement
• Remove the knob caps and retaining collars from the channel module to be replaced.
• Follow instructions #1 and #2 for the removal of the base plate and rear panel.
•
Follow the instruction #11 for the removal of 629510X1 channel buscard.
•
The faulty module will be attached to the buscard, fit the replacement assembly to the buscard and reassemble.
