5 Menu Key
122 Spectra Precision Focus 6 5" Total Station User Guide

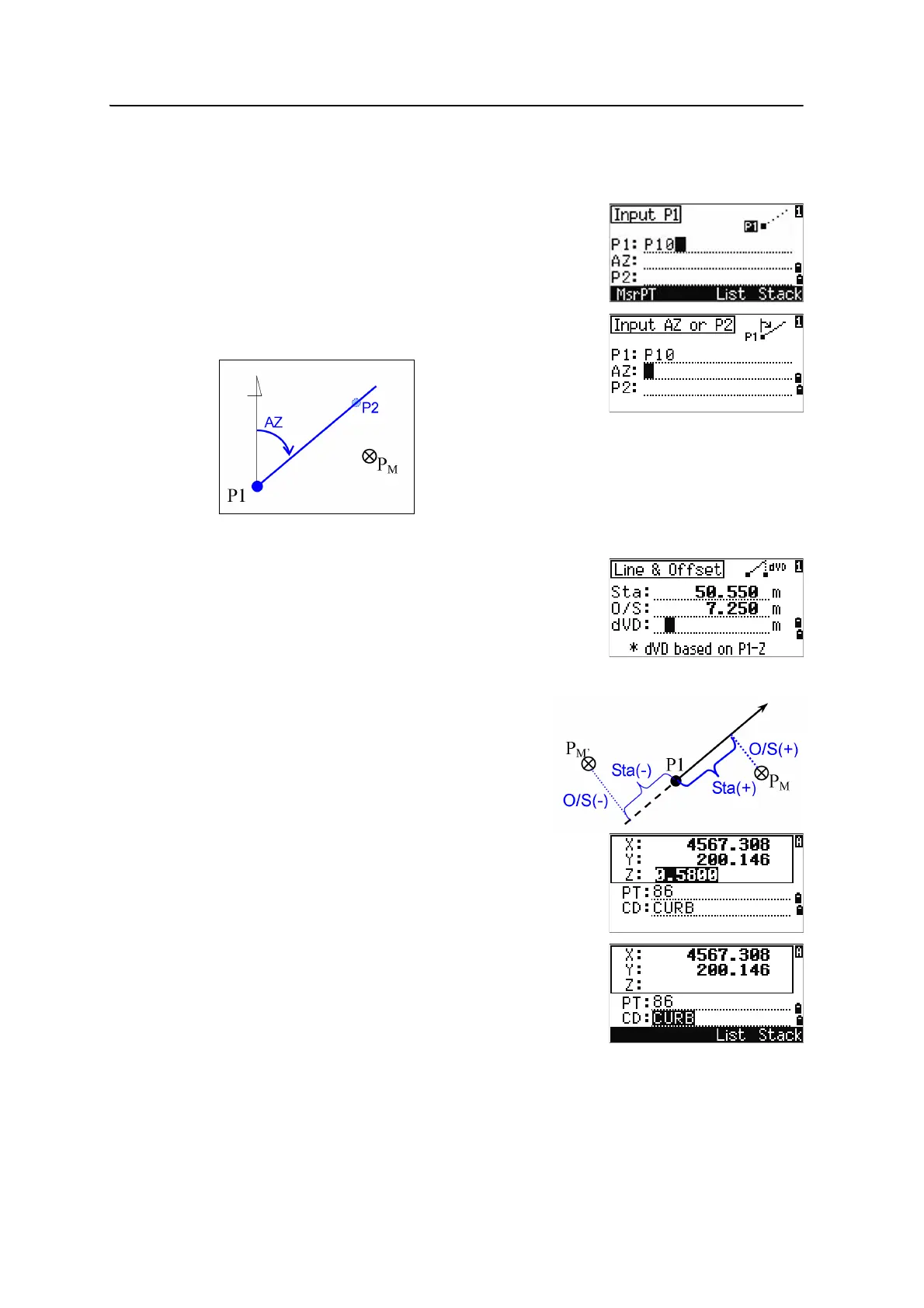

Calculating coordinates from line and offset
To enter the Line & offset function, press [4] or select Line & O/S in the Cogo menu.
Enter the base point (P1).
Specify the azimuth bearing. To do this, enter a value in
the AZ or P2 field. P2 is a second point on the line.
Enter the horizontal distance along the baseline (Sta),
the horizontal distance perpendicular to the line (O/S),
and the vertical distance (dVD).
B
Tip – A negative value in the Sta field means the
opposite direction along the defined bearing
line. A negative value in the O/S field is for the
left-hand side of the bearing line.
To calculate the coordinates of the point (PM),
press
[ENT] in the dVD field. You can change the Z
coordinate here.
To record the point, press
[ENT] in the CD field.
