4 Applications
76 Spectra Precision Focus 6 5" Total Station User Guide

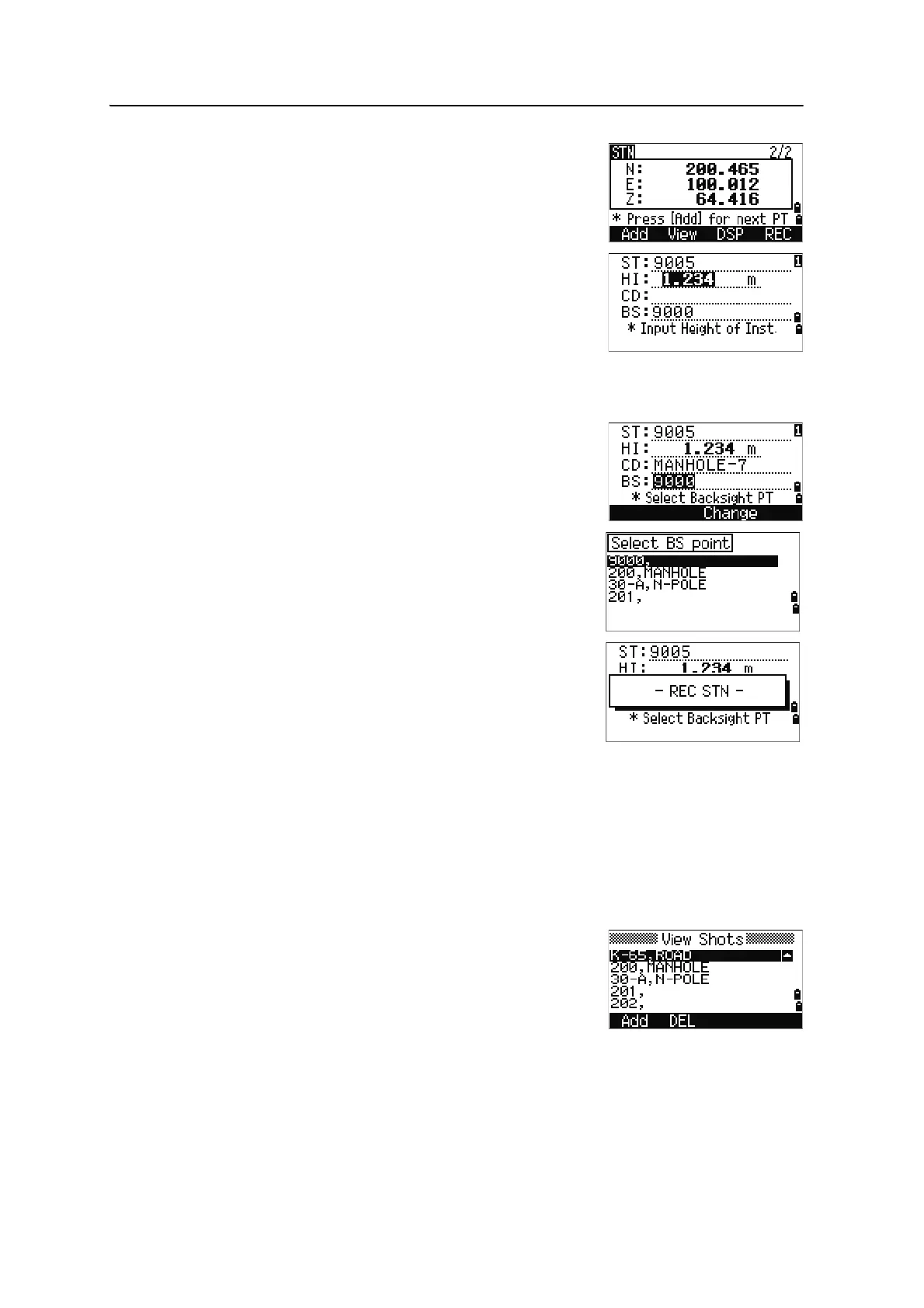

8. When the results are satisfactory, record the
station. To do this, press
[ENT] or the REC softkey.
9. Enter the height of instrument, if required. Press
[ENT]. The ST field defaults to the last recorded PT +
1.
10. To change the station name, move to the ST field
and edit or replace the text.
Note – If you have set Split ST to Yes, the ST field defaults to the last recorded ST value + 1.
For more information, see Others settings, page 132.
11. BS defaults to the first observed point.
12. To change the BS, press the
Change softkey.
13. Select the BS point that you want to use and press
[ENT].
14. To finish the resection setup, move the cursor to
the BS field and press
[ENT].
Note – The minimum data required for a resection is
either three angle shots, or one angle shot and one
distance shot. If you use a distance shot, the distance
between the target points must be greater than the measured distance. Stn-Z is calculated
from distance-measured data. If no distances are measured, then Stn-Z is calculated using
angle-only measurements to points with 3D coordinates.
Advanced feature: Viewing and deleting a measurement in resection
To check the measurements to each known point, press
the
View softkey on the calculated STN (sigma or
coordinate) screen.
