Applications 4
Sample records
SS, 58, 0.0000, 48.3304, 169.19165, 82.02470, 10:52:37, FLOOR2
CO, PT1, 1.0080, 48.3020,169.19165, 83.58565
CO, PT2, 1.0080, 48.3155,128.54250, 85.42440
CO, O/S MSR:40 0.0000 0.0000 169.20370 87.02340
B
Tip – The calculated corner point is stored as an SS record. The next three or four
comment records are measured points. For example, CO, Point name (fixed to PT1, PT2
etc.), HT, SD, HA, VA.
Measuring circle offsets

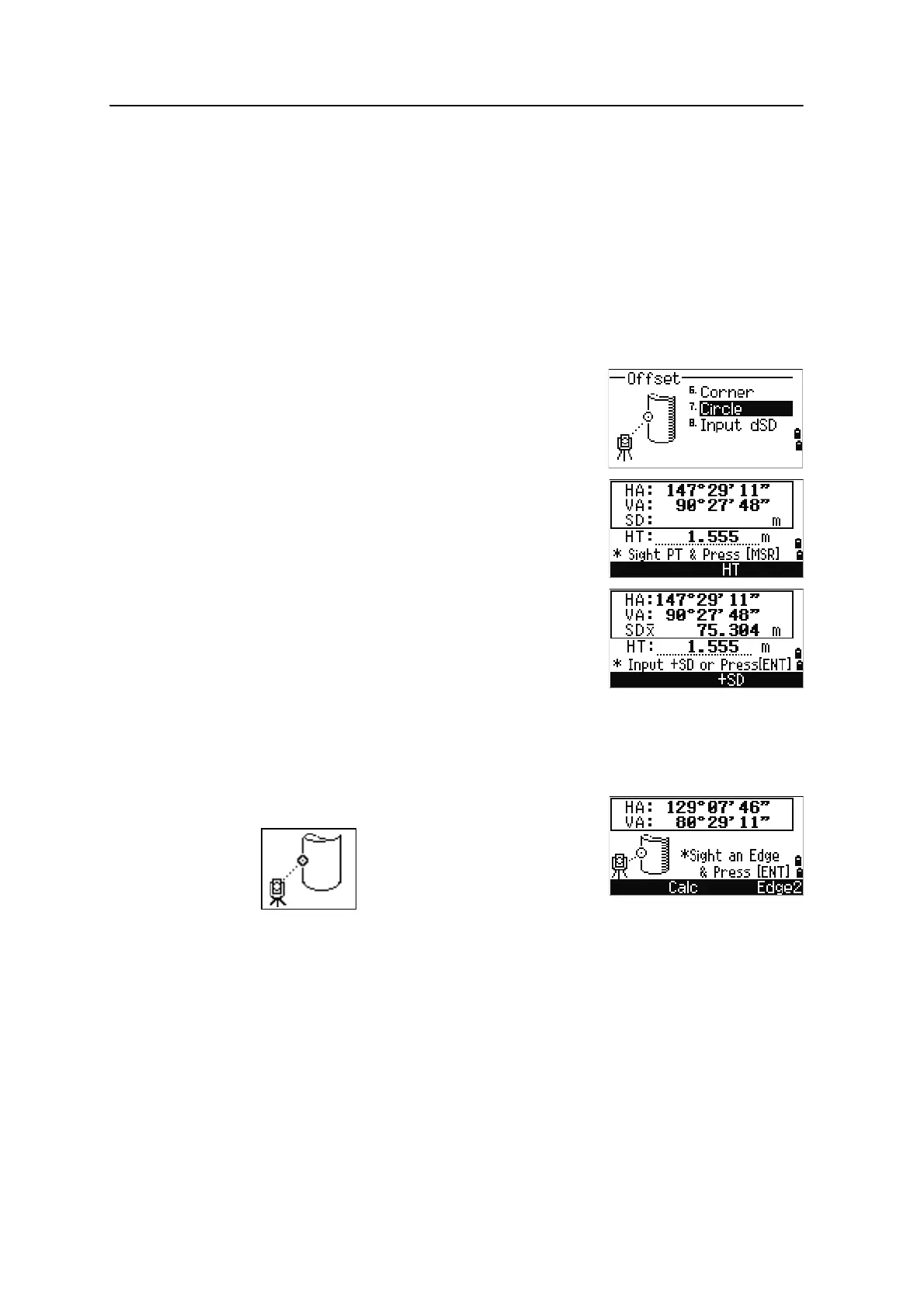

1. To enter the circle center calculation function,
press
[7] or select Circle in the Offset menu.
If you have not taken a measurement to the circle
before entering this function, a temporary
measurement screen appears.
2. Sight any point on the surface of the circle and
press
[MSR1] or [MSR2].
B
Tip – If you use a prism attached to the surface of the
circle for the distance measurement, press the +SD
softkey to eliminate the offset error (from the attached
point to the measured surface of the prism) before you
press [ENT].
3. Sight one edge of the circle and press [ENT].
B
Tip – If you have taken a distance measurement to the
center of the circle, press the Calc softkey to calculate
the offset using one edge angle observation.
