5 Menu Key
134 Spectra Precision Focus 6 5" Total Station User Guide

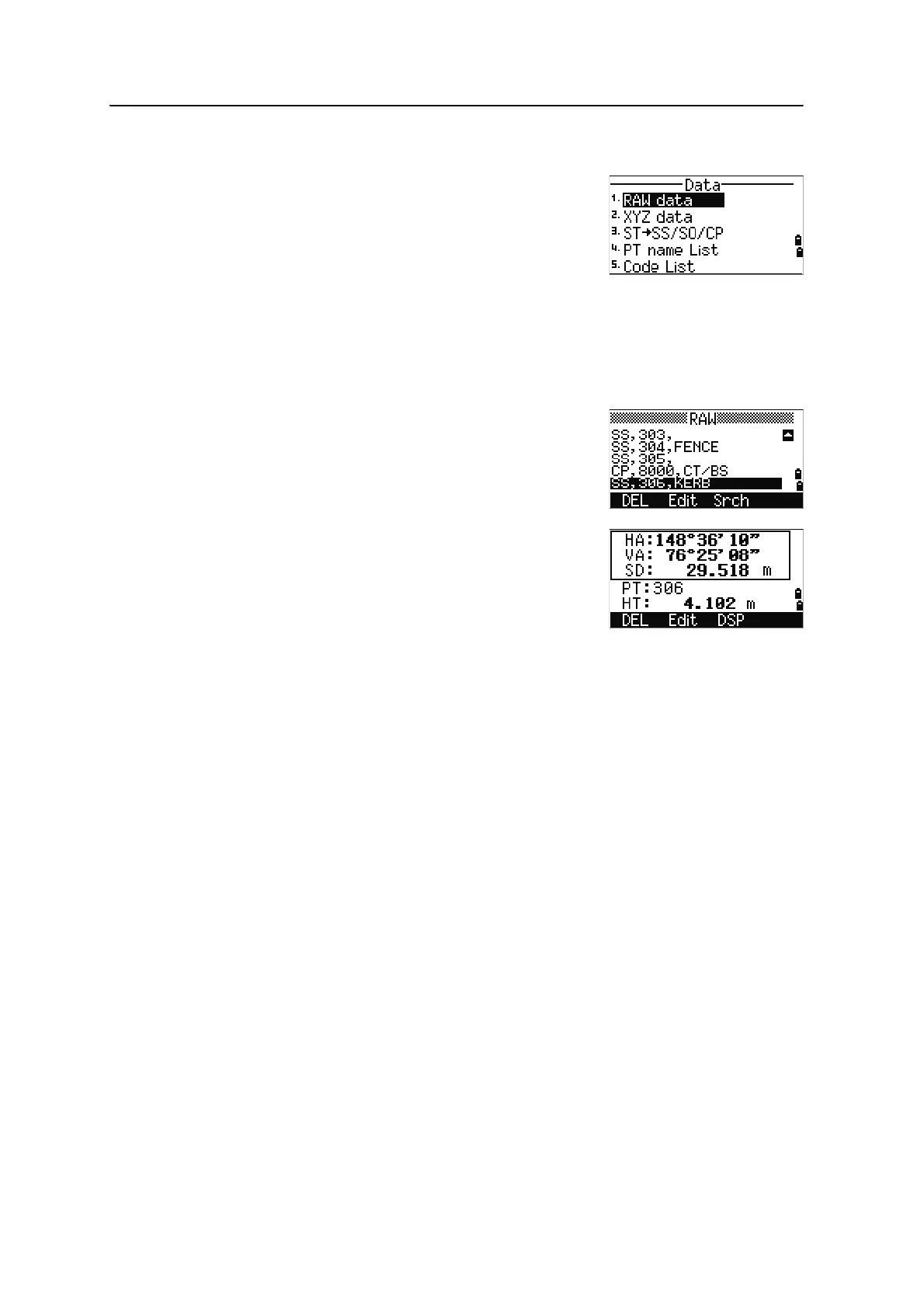

Data
Use the Data menu to view or edit records. To display
the Data menu, press
[4] on the MENU screen.
Viewing records
B
Tip – You can view data at any time, even in an observation screen or while entering
points.
Viewing raw data
To show the raw data records in a list, press
[1] on the
Data menu screen.
When you first view the raw data, the last four raw
records in the current job are displayed. Use
[^] or [v] to
scroll through the records.
To see detailed information for the selected records,
press
[ENT].
To return to the record list, press
[ESC].
SS, CP, F1 records
Raw SS, CP and F1 records contain PT, HT, CD, HA, VA, and SD fields.
SS records are sideshots (topo shots). All shots from the Basic Measurement Screen
(BMS) are stored as SS records.
CP records are shots taken in the Angle or Repeat menus, or in the BMS. For more
information, see Recording a foresight point after repeat angle measurement, page 70,
and Recording data from any observation screen, page 99.
When the Store DB setting is set to RAW+XYZ, press
[DSP] to switch between the first
screen (showing HA, VA, SD, PT, and HT) and the second screen (showing X, Y, Z, PT,
and CD).
Coordinates are not available in F1 records.
When you take more than one measurement to the same point and choose to
overwrite the XYZ data, the old raw record becomes raw data only. As a result, only one
SS(RAW) record keeps its corresponding SS(XYZ) record. Other SS(RAW) records to
the same point no longer have coordinates available.
