5 Menu Key
136 Spectra Precision Focus 6 5" Total Station User Guide

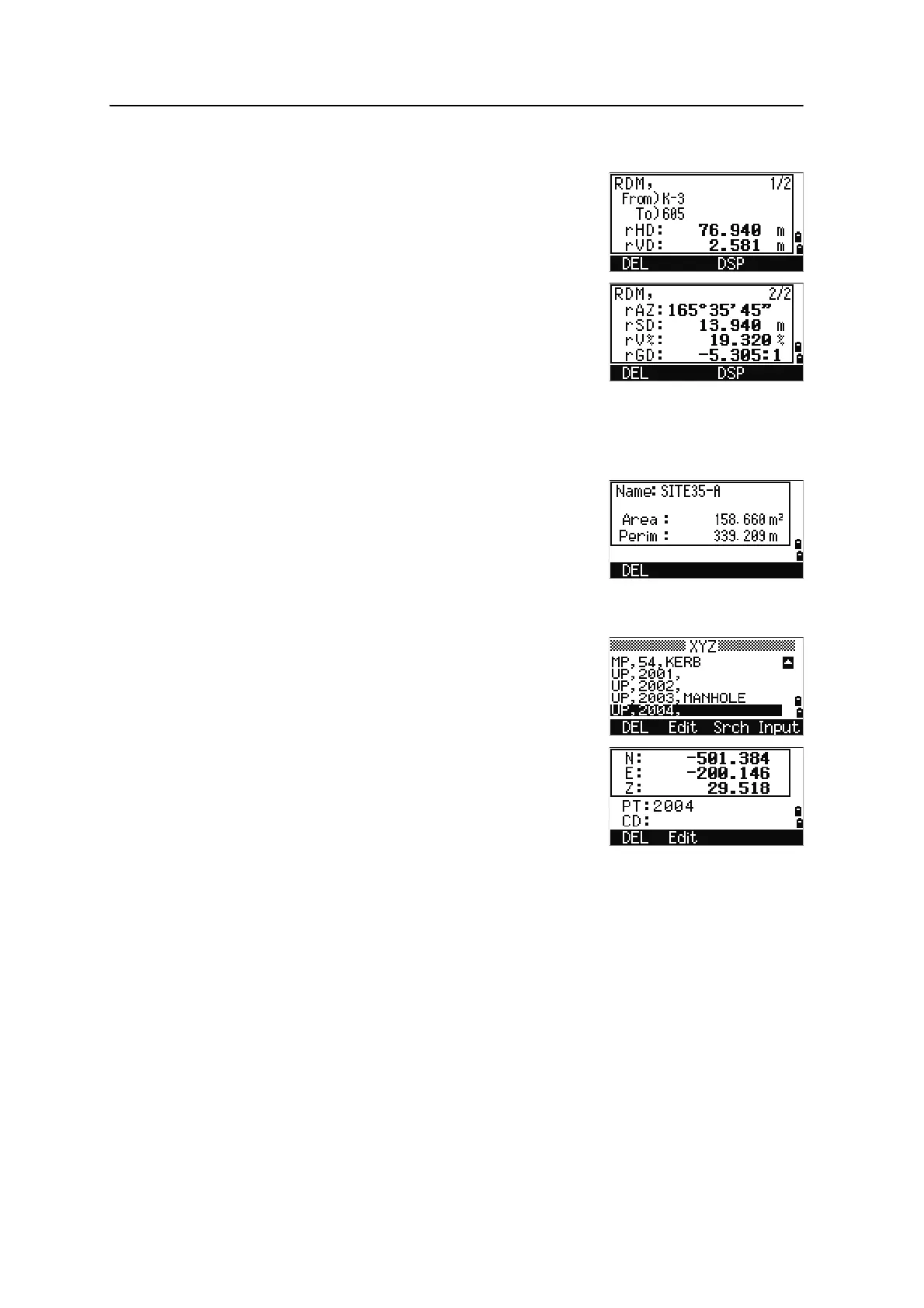

RM records
When you record measurements in RDM (Cont) or
RDM (Rad), they are labeled as RM records.
Each RM record consists of two screens.
Press
[DSP] to switch between the first screen (showing
From, To, rHD, and rVD) and the second screen
(showing rAZ, rSD, rV%, and rGD).
When you download data in Nikon RAW format, RM
records are output as comment (CO) records.
AR records
An AR record stores an area and perimeter calculation.
When you download data in Nikon RAW format, AR
records are output as comment (CO) records.
View coordinate data
When you press
[2] or select XYZ data in the Data
menu, coordinate data appears in a list, with the newest
record at the bottom of the screen. Use
[^] or [v] to scroll
through the records. Use
[<] or [>] to move up or down
one page.
Press
[ENT] to see more detailed information about the
selected record.
B
Tip – The header (XYZ,YXZ,NEZ, or ENZ) depends on the
Coord. Label setting in MENU > Settings >
Coord. For more information, see Coordinate, page 130.
UP, MP, CC, and RE records
All coordinate records contain PT, CD, X, Y, and Z fields.
UP records are uploaded point coordinates. MP records are manually input point
coordinates. CC records are points calculated in Cogo, and RE records are points
calculated in Resection.
