Spectra Precision Focus 6 5" Total Station User Guide 41
Getting Started 3

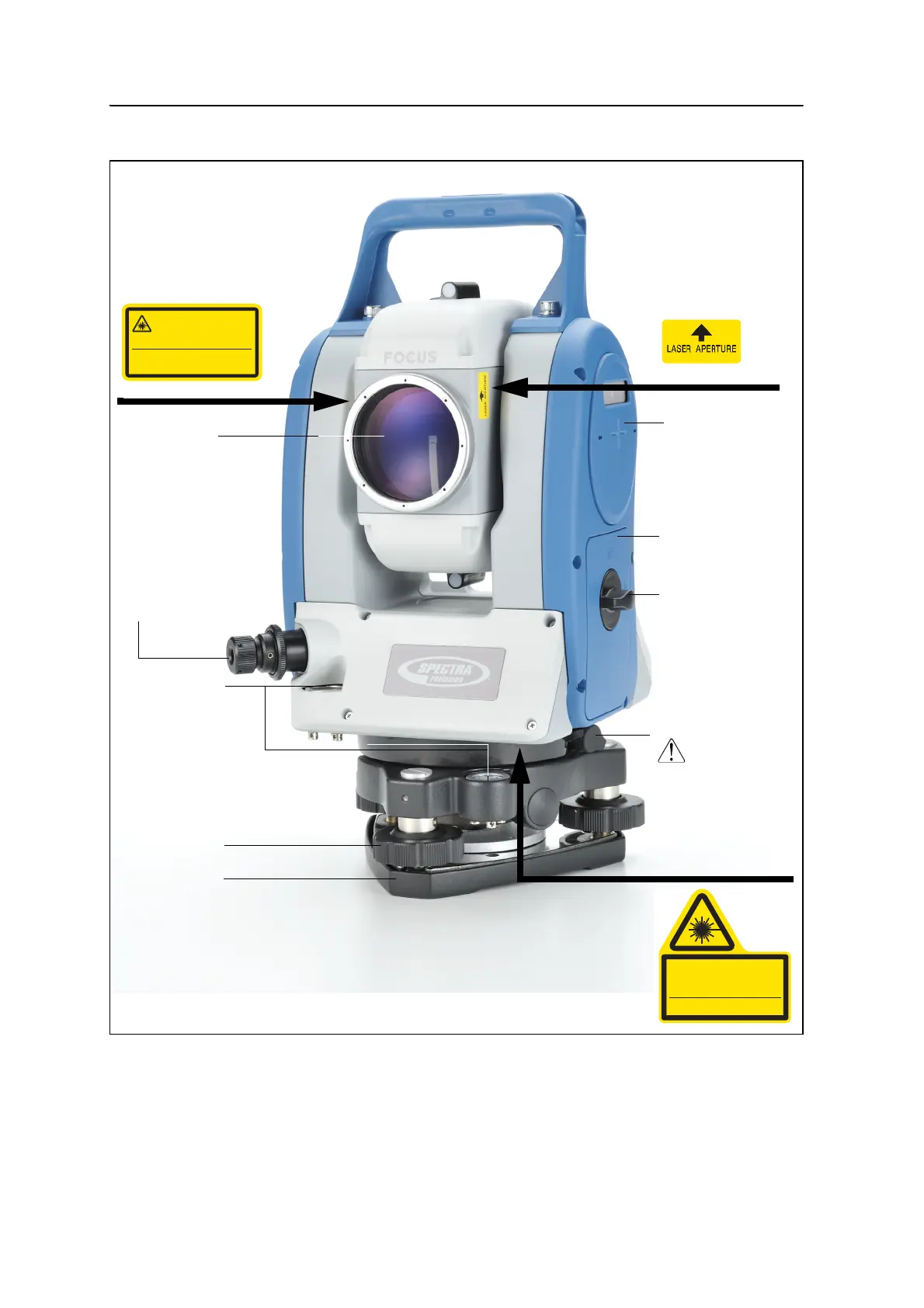

Figure 3.2 Front view of the Focus6 5" total station (Face 2)
Objective
The laser safety label shown below
is attached to the side
LASER LIGHT IS
THIS PART
EMITTED FROM
Data output/
input connector
(input voltage
4.5-5.2 V DC)
Po Ƀ 1mW CW Ё
=
630
-
690nm
Class 2 Laser Product
Do not stare into beam
Laser Radiation
IEC60825
-
1:2001
Optical plummet
of the telescope.
The laser safety label
shown below is
attached to the
telescope.
Horizontal axis
indication mark
Battery box
Battery box
release knob
external power
The laser safety label
shown below will be
attached here
(underneath) when
the optional laser
plummet is used.
Po
<
1.0mW CW Ё
=
635nm
IEC 60825
-
1 ,2001
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
Leveling screw
Tribrach
(shown here) or
optional laser
plummet
Circular level
