5. Enter the second point on the vertical plane. Press
[ENT].
Once the plane is defined, the calculated Sta and dZ
values are updated as you move the telescope. No
distance measurement is required.
Using
[DSP] to switch between display screens
Press

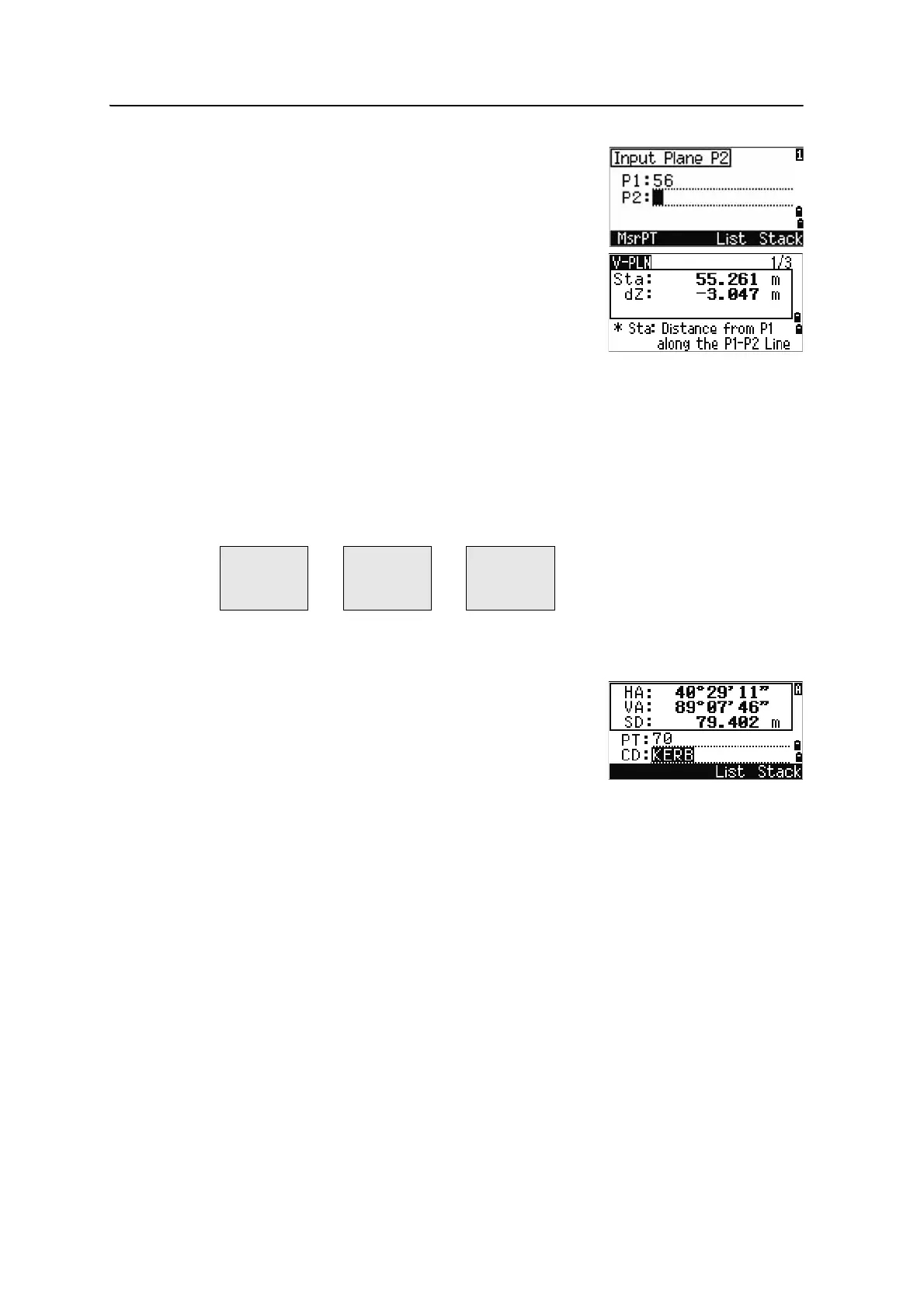

[DSP] to switch between the plane display screens. The following screens are
available:
Every time you press
[DSP], the next screen appears. If you press [DSP] in the last screen
(PLN3), the PLN1 screen appears.
To record the point, press
[ENT] on any screen (V-PLN1/3
to V-PLN3/3).
Enter PT and CD. Then press
[ENT].
Sample records
CO,Vertical Ref Plane Pt1:516-A1 Pt2:530
CO,Sta=68.021 dz=17.459
SS,30123-A48,1.5480,16.4020,40.4720,89.0730,14:22:47,
Sta Horizontal distance from P1 to the
target point along the baseline
dZ Vertical distance from P1 to the target
point
PLN1 PLN2 PLN3
Sta
dZ
X
Y
Z
HA
VA
