Structure and Functions

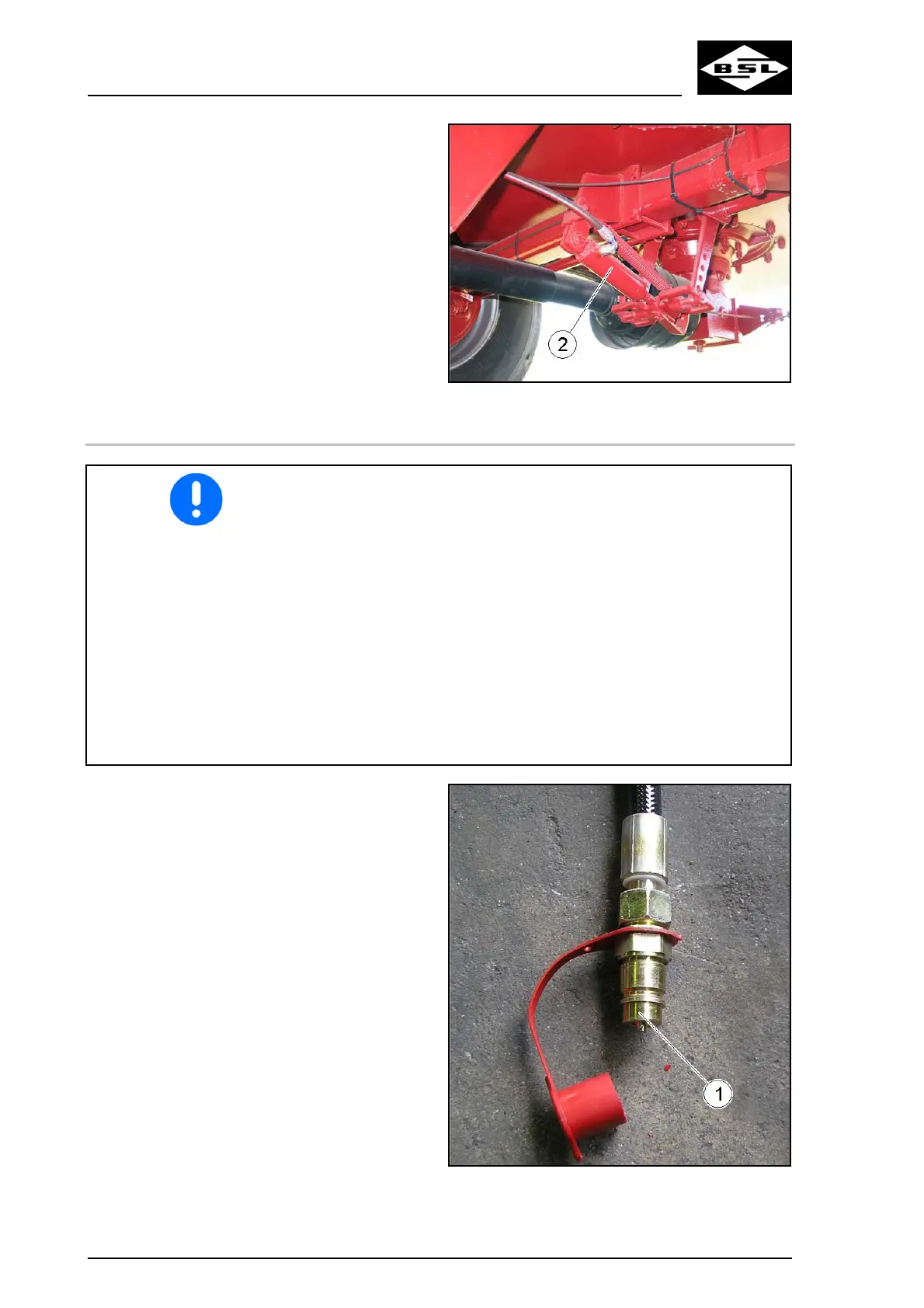

(2) Brake axle hydraulic cylinder
Fig. 62
5.11.1.1 Coupling
• Only couple clean hydraulic couplings.
• If necessary clean the hydraulic plug and hydraulic sleeve.
• Push the hydraulic plugs into the hydraulic sleeve until the
hydraulic plug is heard to lock in.
• Check the coupling spot of the hydraulic brake line for correct
and tight seat.
• The coupled hydraulic brake line:
ο must easily follow every movement when cornering without
tension, bending or friction,
ο must not chafe against external parts.
• Check the hydraulic service brake for proper functioning before
carrying out transport drives.
2. Remove the dust cap from the hydraulic
plug (1).
3. Couple the hydraulic plug with the hydraulic
sleeve to a single-acting control device or a
double-acting control device with open-
centre position of the tractor.
4. Release the parking brake.
1. Swivel the control device at the control
device on the tractor to open-centre position
(neutral position).
Fig. 63
110
Verti Mix Double K Edition 08.08
