Strautmann Verti Mix Double K - Overview - Supply Lines between Tractor and Machine

Product description

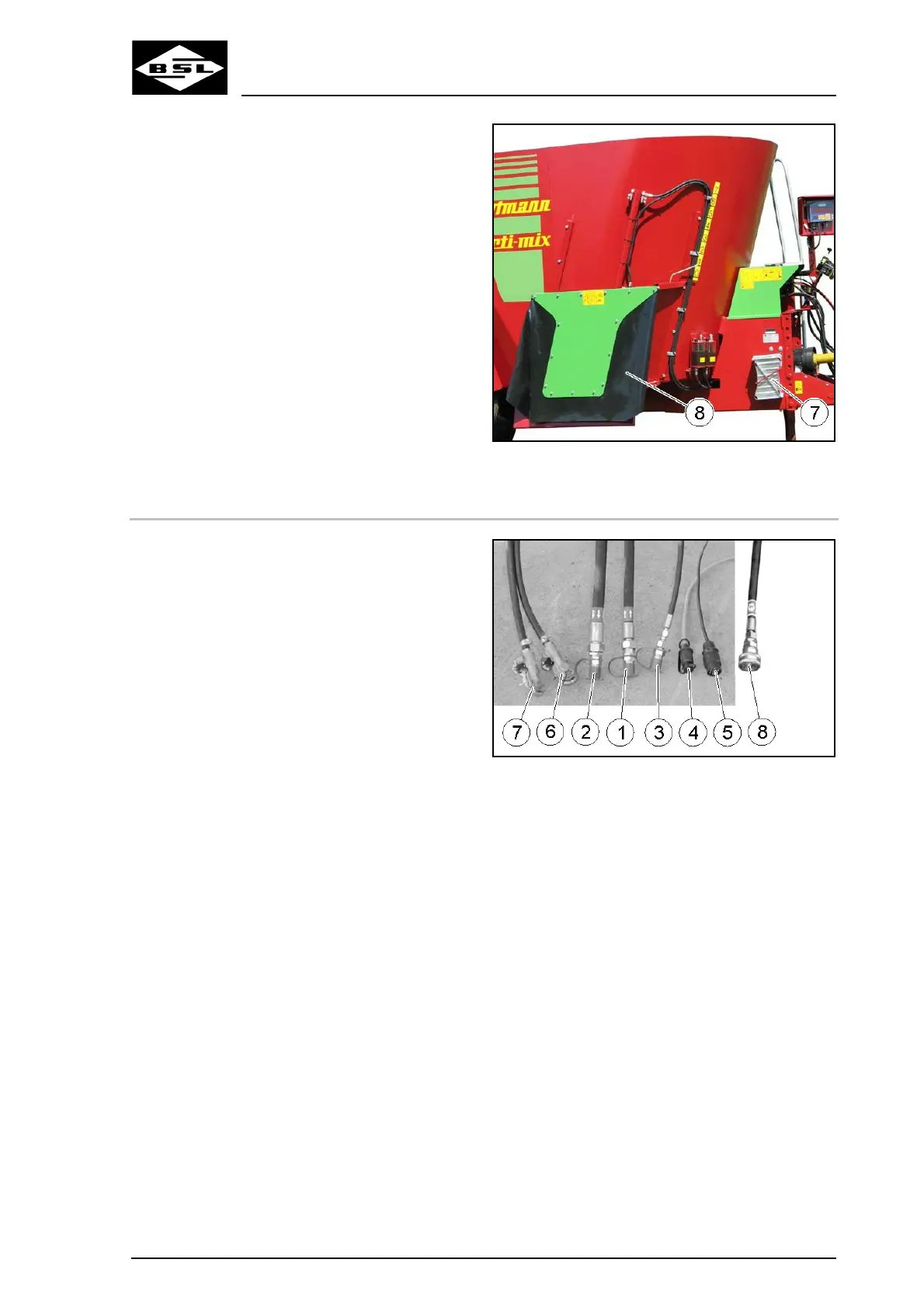

(7) Wheel chocks
(8) Protective device front side discharge (tight-
fitting, swivelling protective cover) against
accidental touching of the powered mixing
auger
Fig. 4
2.3 Overview - Supply lines between tractor and machine
(1) Hydraulic connection “forward” red
(2) Hydraulic connection “return” blue
(3) Hydraulic connection for hydraulic working
brake
(4) Power supply for control unit 3-pin
(5) Lighting connection 7-pin
(6) Compressed air brake supply line red
(only in case of available optional extra)
(7) Compressed air brake line yellow
(only in case of available optional extra)
(8) Hydraulic connection for hydraulic brake
with hydraulic clutch according to ISO 5676
(only in case of available optional extra, not
allowed in Germany)
Fig. 5
