Strautmann Verti Mix Double K - Rear Crossover Conveyor; Conveyor Extension

Structure and Functions
5.3.3 Rear crossover conveyor

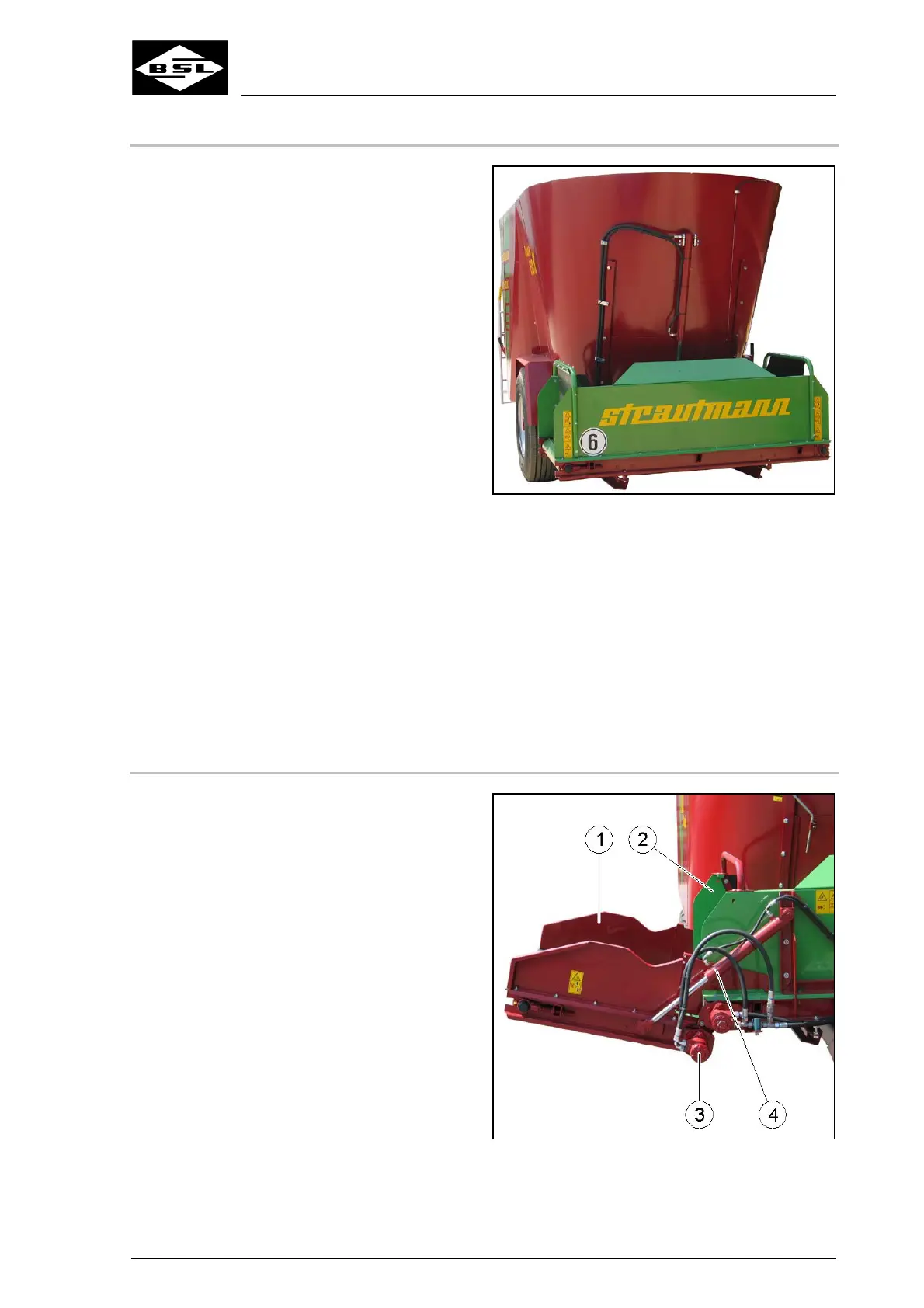

Fig. 33
Optional equipment:
The rear crossover conveyor:
• is powered by a hydraulic motor. The
conveyor speed:
ο is not adjustable in the standard
model,
ο is infinitely adjustable via a current
regulation valve (optional equipment).
See information in chapter "Setting of
conveyor speed for crossover
conveyor / discharge conveyor for side
discharge", page 73.
• can be powered in two driving directions.
Depending on the driving direction, the
fodder is discharged on the right- or left-
hand side of the fodder mixing trailer.
Switching on and off of the driving mechanism
and switching over from one driving direction to
the other is effected via remote control from the
tractor:
• directly via a double-acting control device of
the tractor (standard equipment),
• via a hand lever (optional equipment),
• via the Bowden cable (optional equipment),
• via electro-hydraulic control (control unit)
(optional equipment).
5.3.3.1 Conveyor extension
Optional equipment:
The conveyor extension (1) extends the
crossover conveyor (2) such that fodder can be
transported to elevated feeding troughs which
are difficult to access.
The conveyor extension (1):
• is powered by the hydraulic motor (3),
• is swivelled from transport position to
working position and vice versa via the
double-acting hydraulic cylinder (4) by
remote control from the tractor. Fig. 34
shows the conveyor extension in working
position.
• is powered jointly with the crossover
conveyor (2).
Fig. 34
