Strautmann Verti Mix Double K - Uncoupling; Hydraulic Service Brake System

Structure and Functions
5.11.1.2 Uncoupling
1. Apply the parking brake.
4. Safeguard the hydraulic plug against dirt
with the dust cap.
5. Store the hydraulic brake line in the hose
cupboard.

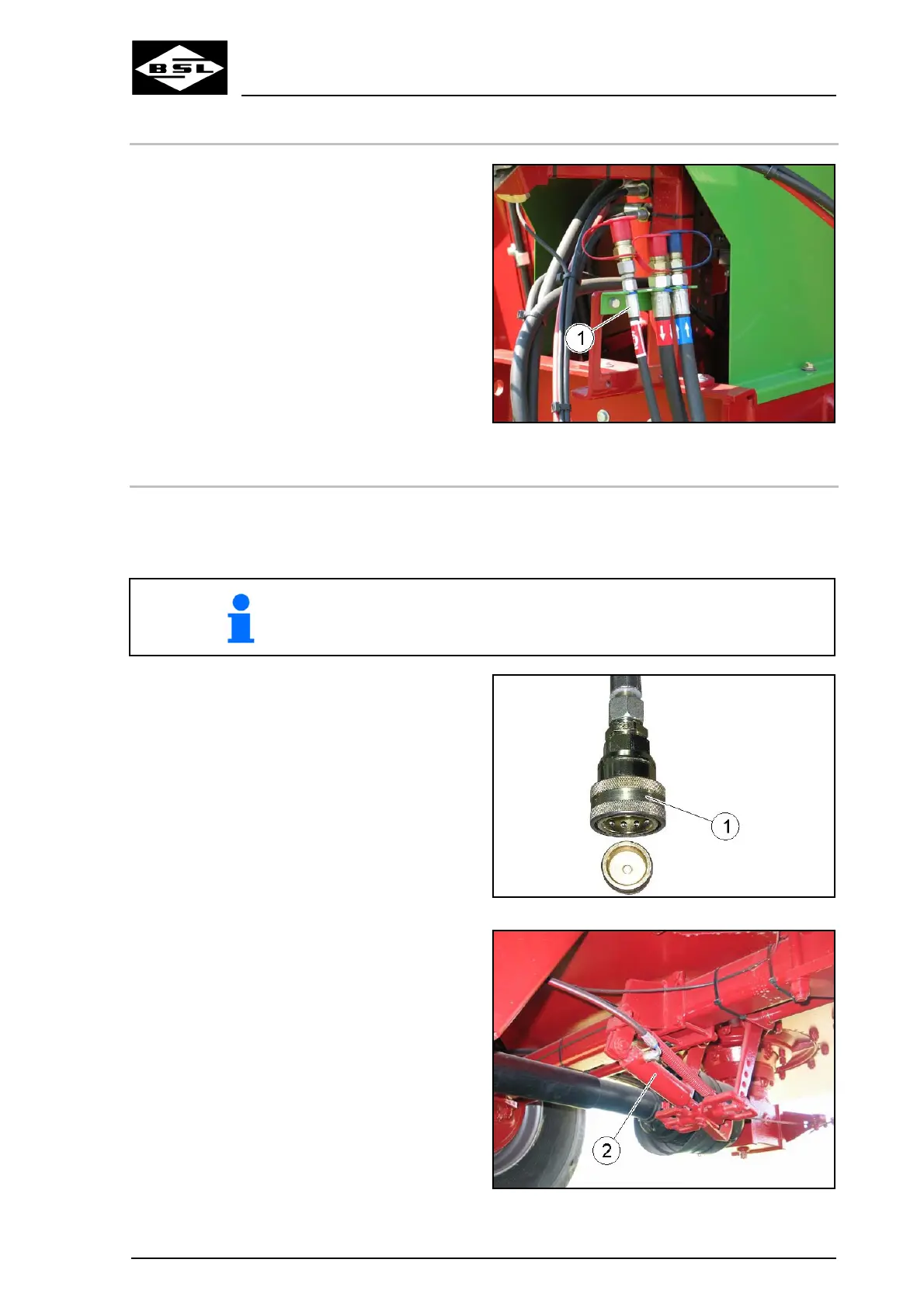

Fig. 64
2. Relieve brake hydraulics. Swivel control
device on the tractor to “Lowering“ position
such that the hydraulic oil flows back to the
tractor.
3. Uncouple the hydraulic plug.
5.11.2 Hydraulic service brake system
The controlled hydraulic service brake system is connected to the
special brake valve of the tractor. When the operator applies the
brake on the tractor, the machine brakes.
The hydraulic service brake system has not been licensed for
Germany.
(1) Hydraulic sleeve ISO 5676
Fig. 65
(2) Brake axle hydraulic cylinder
Fig. 66
Verti Mix Double K Edition
