Structure and Functions

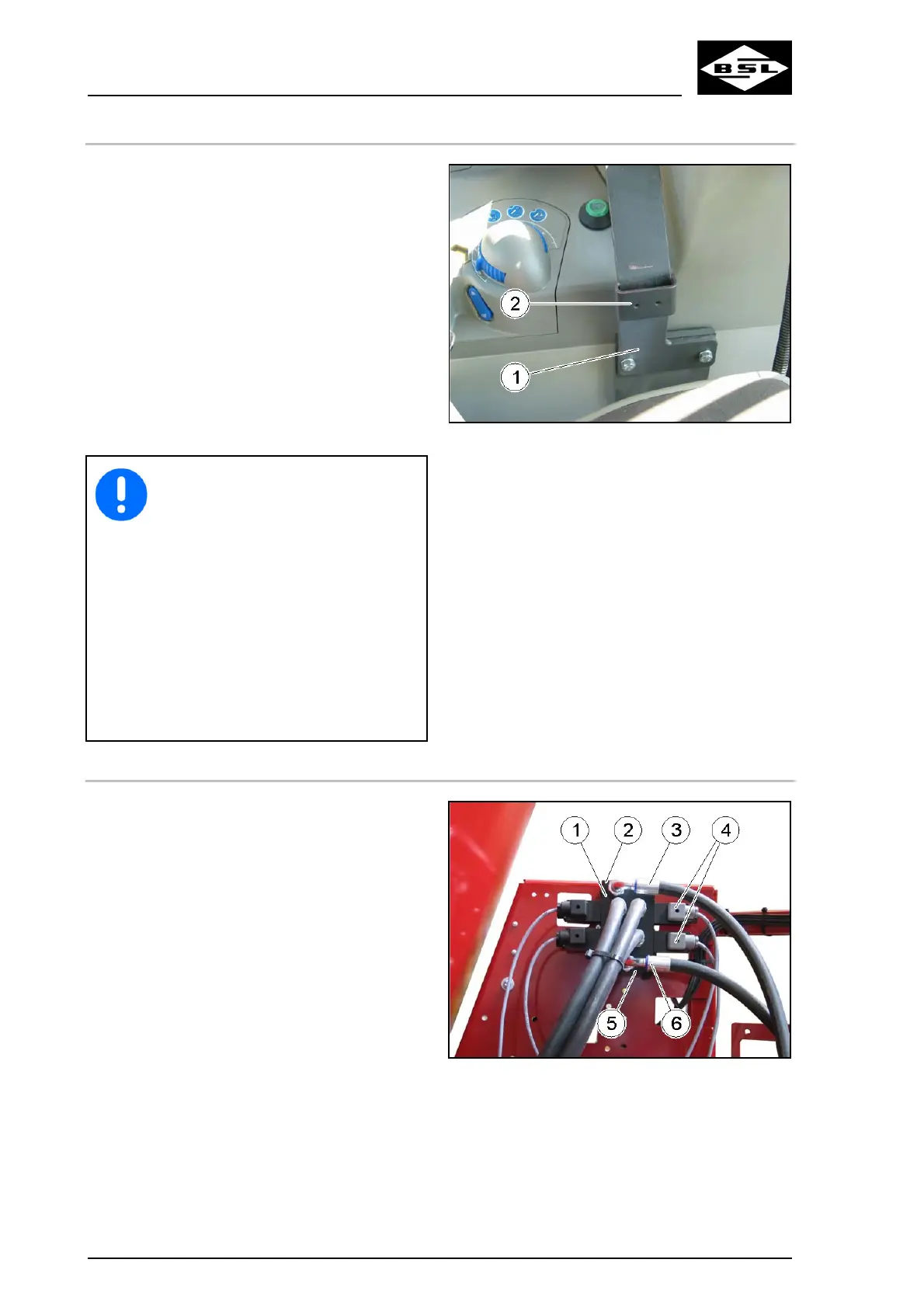

5.6.4.2 Mounting of control unit on the tractor
1. Mount the holder (1) with the pocket (2) for
the control unit on the tractor within view
and reach to the driver’s right.
2. Insert the pocket for the control unit into the
holder.
3. Plug the 3-pole plug (DIN 9680) of the
power cable (2) into the 3-pole socket of the
tractor.
(Pole 15/30 = Plus; Pole 31 = Minus)
Fig. 47
• Do not take the electric current
from the light socket.
• Retrofit the 3-pin socket if your
tractor does not have a 3-pin
socket. Strautmann offers an
appropriate retrofit kit.
• You require a constant electric
current supply of 12 V. The 3-pin
socket must be safeguarded by a
fuse of at least 25 A.
• The supply lead of the 3-pin
socket should have a cable
cross-section of at least 4 mm².
5.6.4.3 Electro-hydraulic control block
(1) Electro-hydraulic control block
(2) Input plate
(3) Connection pressure line P
(4) Control unit with directional control valve for
e.g. hydraulic cylinder of discharge door,
crossover conveyor drive, hydraulic cylinder
of discharge conveyor, hydraulic cylinder of
counter-cutters etc.
(5) End plate
(6) Connection return line T
Fig. 48
92
Verti Mix Double K Edition 08.08
