Structure and Functions

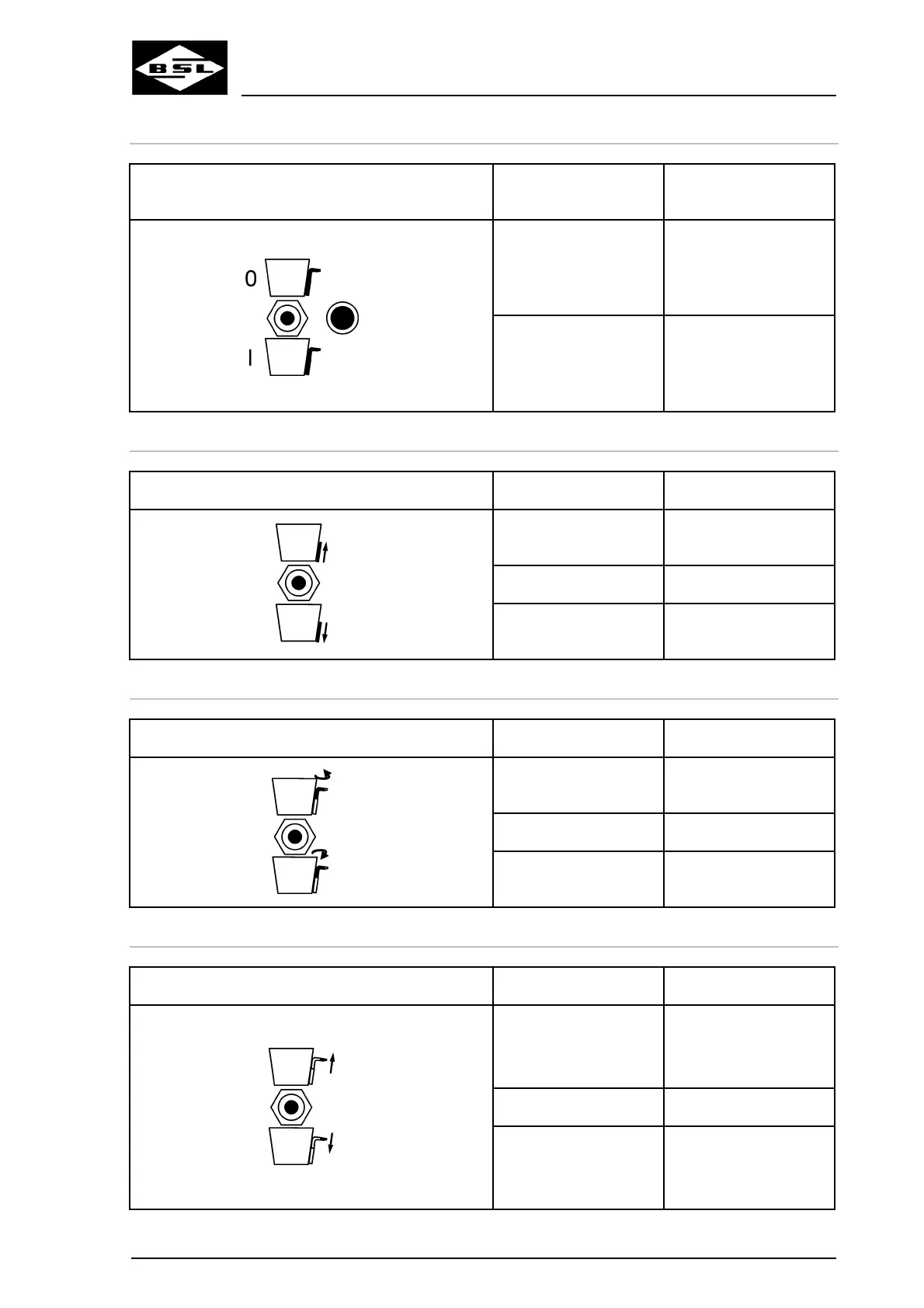

Switching on / off of straw blower
Symbol
Position of toggle
switch
Straw blower
0 (OFF)
top
(latch-in design)
Off
(green control lamp
does not light up)
I (ON)
bottom
(latch-in design)
On
(green control lamp
lights up)
Straw blower - Open / Close discharge door
Symbol Position of key button Discharge door
top
(touch-control)
Open
Neutral position Action stops
bottom
(touch-control)
Close
Straw blower – Rotate tower
Symbol Position of key button Tower
top
(touch-control)
Turn to the left
Neutral position Action stops
bottom
(touch-control)
Turn to the right
Straw blower – Lift / Lower ejection hood
Symbol Position of key button Ejection hood
top
(touch-control)
Lift
(Increase throwing
range)
Neutral position Action stops
bottom
(touch-control)
Lower
(Reduce throwing
range)
