Strautmann Verti Mix Double K - Two-Line Service Brake System

Structure and Functions

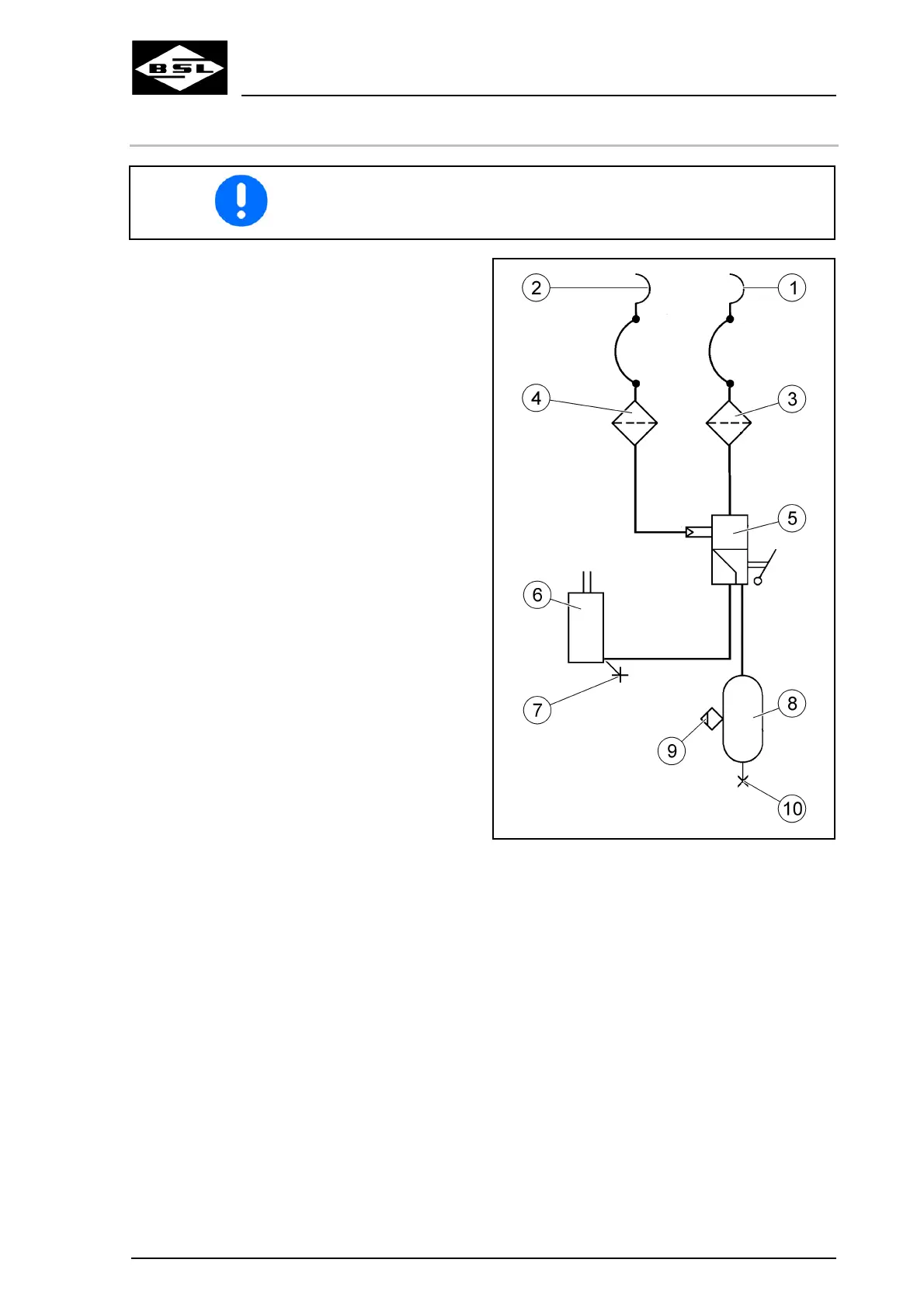

5.11.3 Two-line service brake system
Observance of the maintenance intervals is indispensable for proper
functioning of the two-line service brake system.
(1) Supply line with coupling head (red)
(2) Brake line with coupling head (yellow)
(3) Line filter of supply line
Verti Mix Double K Edition
113
08.08
(4) Line filter of brake line
(5) Trailer brake valve with brake force
regulator
(6) Piston-type brake cylinder
(7) Test connection, piston-type brake cylinder
(8) Compressed air tank
(9) Drain valve
(10) Test connection compressed air tank
Fig. 68
