Structure and Functions
Lifting / Lowering of support stand
Symbol Position of hand lever Support stand
front
(touch-control)
Lifting to transport
position
Neutral position
Action stops
rear
(touch-control)
Lowering to support
position
Changing of mixing auger speed
Symbol Position of hand lever Speed
front
(latch-in design)
Fast
Gear level I
rear
(latch-in design)
Slow
Gear level II

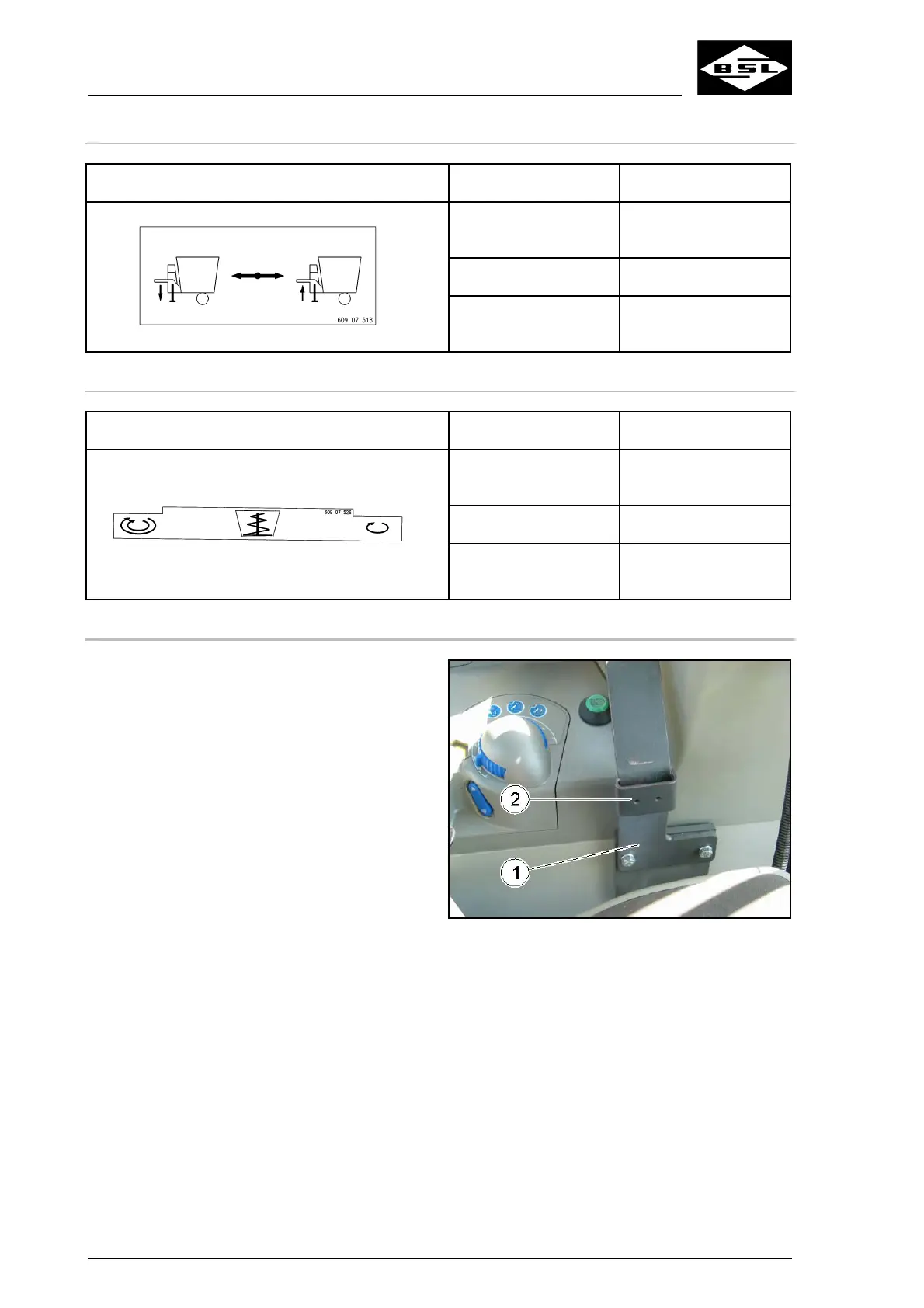

5.6.3.2 Mounting of holder with pocket for Bowden cable control unit
Fig. 45
1. Fix the holder (1) with the pocket (2) for the
Bowden cable control unit within view and
easy reach at an appropriate spot in the
tractor’s cabin.
2. Insert the Bowden cable control unit into the
pocket (2).
