Strautmann Verti Mix Double K - Operating Elements; Direct Tractor Connection

Structure and Functions
5.6 Operating elements
Depending on the machine’s equipment, actuation of the machine’s
hydraulic and electrical function(s) is effected via remote control from
the tractor:
• via direct tractor connection (standard equipment),
• via a hand lever (optional equipment),
• via the Bowden cable (optional equipment),
• via electro-hydraulic control (control unit) (optional equipment).
• The actuating speed of the hydraulic functions (hydraulic
components) depends on the tractor’s hydraulic system.
Depending on the tractor model, a correction of the set actuating
speed at the tractor’s control device / machine’s control block
may be necessary.
• For information about the required control devices see the
chapter "Required tractor equipment“ on page 26.
5.6.1 Direct tractor connection
The individual hydraulic components of the
machine are directly connected to the hydraulic
system of the tractor via appropriate hydraulic
hose lines for oil supply.
A double-acting control device is required on the
tractor for each function (hydraulic component) o
f
the machine.
Each individual function of the machine is then
actuated from the tractor via the control device
on the appropriate control device.

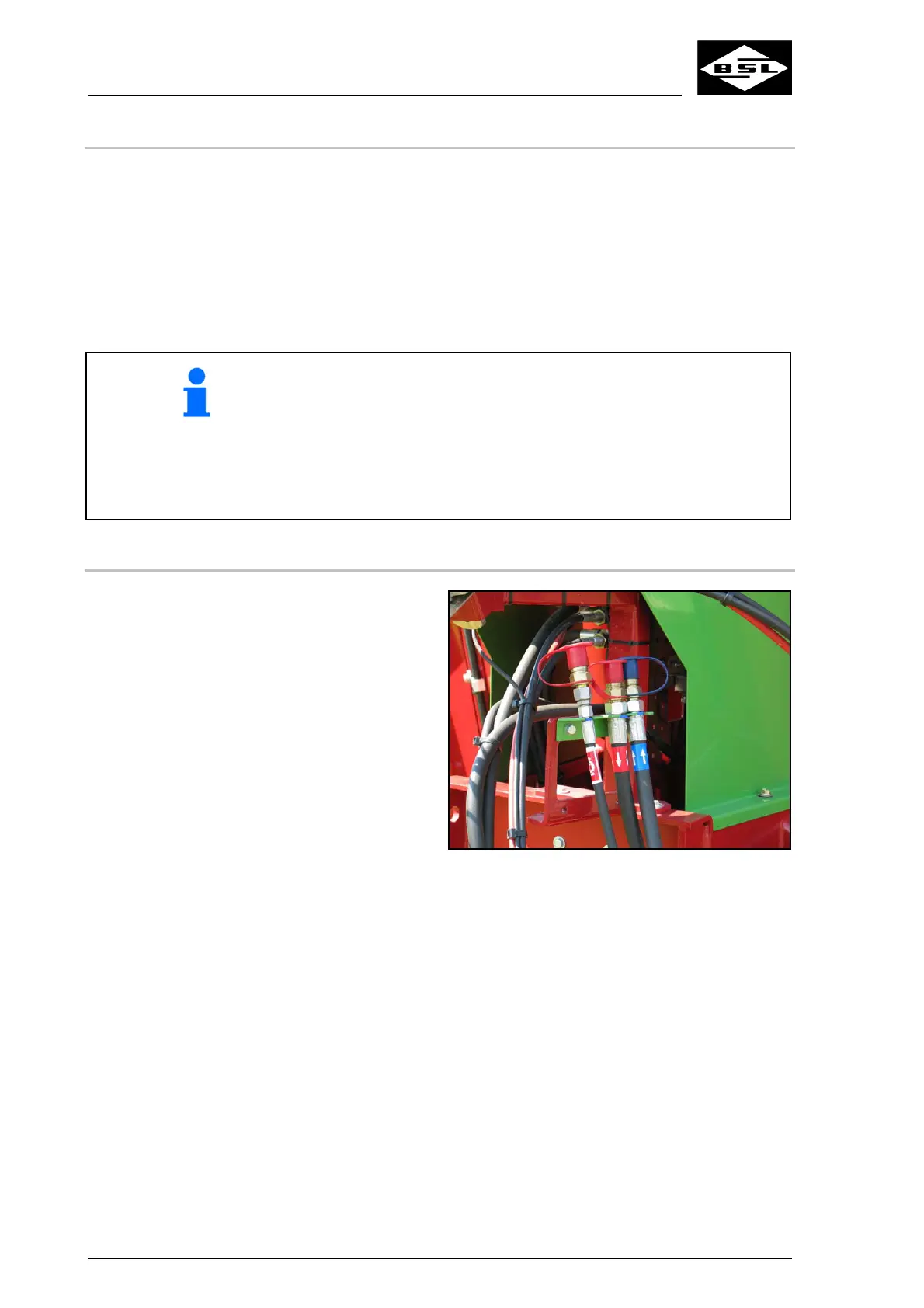

Fig. 42
