Structure and Functions
Beware of the local circumstances
when swivelling the conveyor
extension.
The conveyor extension is only in
transport position when the hydraulic
cylinder (4) has been completely
retracted.

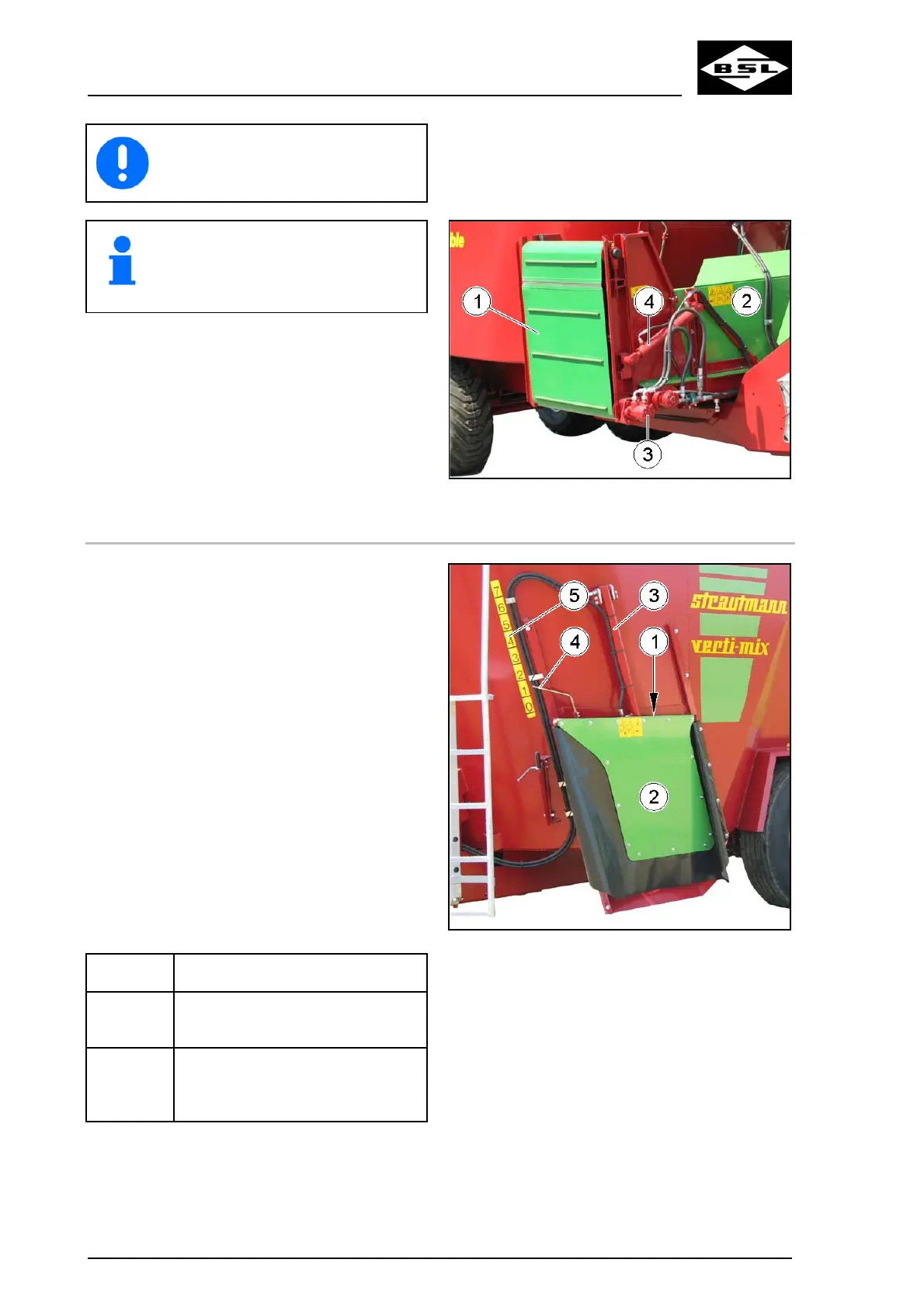

Fig. 35 shows the conveyor extension in
transport position.
Fig. 35
5.3.4 Opening and closing of discharge door for discharge opening
The discharge door (1) of the discharge opening
(2) is opened and closed via the hydraulic
cylinder (3).
Depending on the machine’s equipment, the
hydraulic cylinder is operated via remote control
from the tractor:
• directly via a double-acting control device of
the tractor (standard equipment),
• via a hand lever (optional equipment),
• via the Bowden cable (optional equipment),
• via electro-hydraulic control (control unit)
(optional equipment).
The opening width of the discharge door (1) and
the structure of the mixed fodder components
determine the quantity of fodder discharged.
The set opening width of the discharge door is
indicated by the pointer (4) on the scale (5).
Fig. 36
Scale value Discharge door
0 closed
(no fodder discharged)
8 completely opened
(largest quantity of fodder
discharged)
72
Verti Mix Double K Edition 08.08
