11.13 Brake system
11.13.1 Check / Clean in-line filters of compressed-air brake system
1
2
3
The in-line filters of the brake and supply line protect the compressed-
air brake system from being soiled by solid particles.
The air supply to the brake system takes precedence over the
protection of the brake system against soiling and must be
guaranteed at all times. In case of the filter element being blocked, an
internal bridging-over element opens and unfiltered air passes
through the in-line filter. The brake system remains in full working
order for both directions of flow.
• Clean the two in-line filters approx. every 3 – 4 months,
depending on the operating conditions.
• Replace damaged filter elements.
. Secure tractor and machine against
accidental starting and rolling.
Verti Mix Double K Edition 08.08
. Uncouple supply and brake line from the
tractor.
. Push in base plate (1).
4. Release slide valve (2).
5. Remove base plate (1) with O-ring (3),
pressure spring (4) and filter element (5)
from the casing.
6. Clean (rinse) the filter element with benzine
or a dilution and blow dry by means of
compressed air.
7. Reinsert filter element, pressure spring and
cap with O-ring into the casing.
Ensure that the O-ring will not get
jammed in the guiding slot during
insertion.
8
9
10

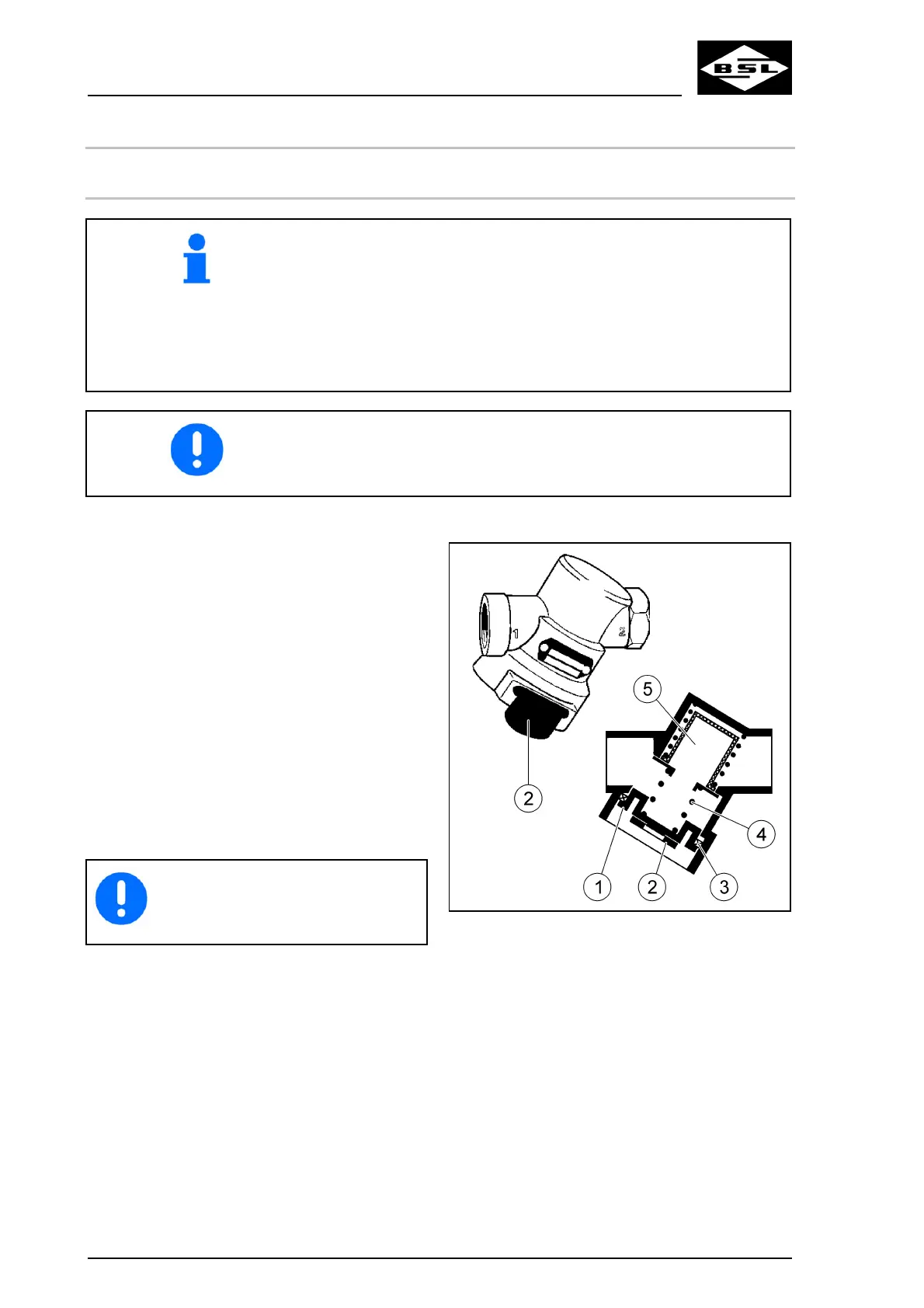

Fig. 102
. Reclose slide valve.
. Hitch the brake and supply line to the
tractor.
. Check in-line filters for tightness.
178
